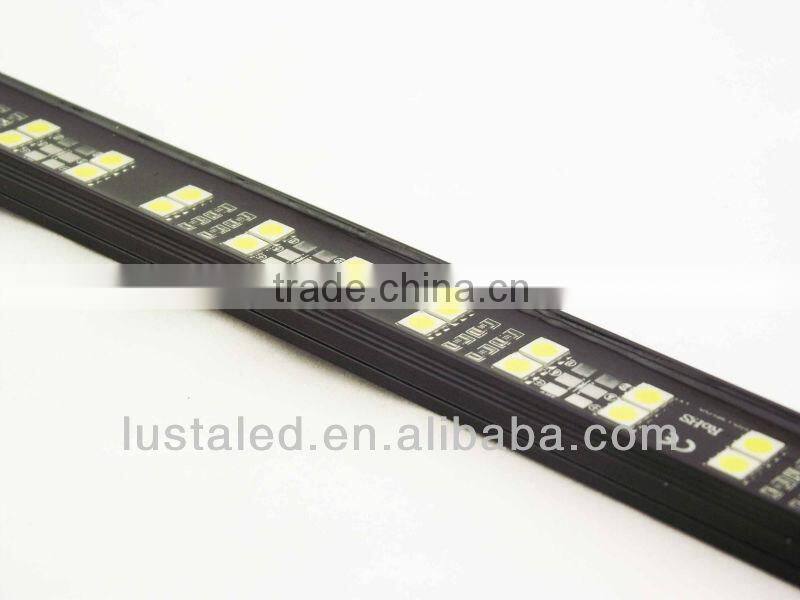

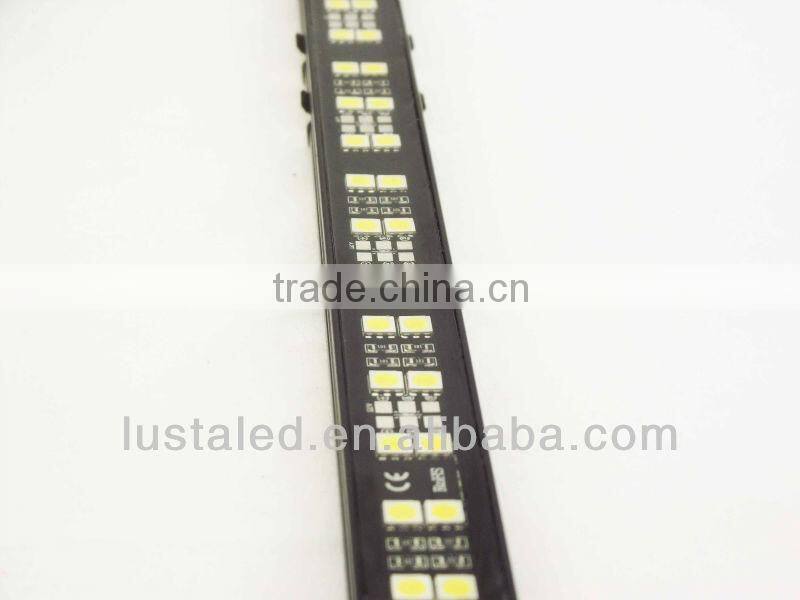

Double Row LED Rigid Bar, 120PCS Super Bright 5050 SMD, 3 Years Warranty LED Rigid Strip

Specifications

LED Rigid Strip
1, 120pcs 5050 SMD/M
2, Super Bright 2200lm/M
3, CE Roh Approved
4, 3 Years Warranty

                            Double Row LED Rigid Bar Ligh,  LED Rigid Strip



Product Feature:

• Perfect for caravanning, camping, boating, home or workplace
• Full encapsulation for longevity and protection
• Using high stability constant current drive, ensure lamp bead service life
• DC12V input voltage, low voltage security

Specification of Double Row LED Strip Light :





Color	WW/NW/CW	LED type	SMD5050
LED Qty	120 leds per meter	Demension	1000*20*13mm
Module interface	Gray 0.5mm2×75mm RV leads	Interface definition	Gray anode,white cathode
Cluster Qty	120 leds	PCB width	20mm
Weight	200g±5%	Lifespan	40000hours
enviroment parameter
working temperature	—50°C~ 60°C
Defend Grade	IP67 (IP33,IP65,IP68 optional)
Electronic specification
Working input voltage	D12V/DC24V	Max power	28.8W/M
Driving mode	Invariablenes Voltage! (Insure every LED working under the invariablenes voltage)
lighting capability
Luminous Flux	2200lm
Beam angle	120°



Length can be custom-made

Every 6 leds is one group. The strip can be cut by one group according to the showing tangent at random





Double Row LED Strip Light Application:

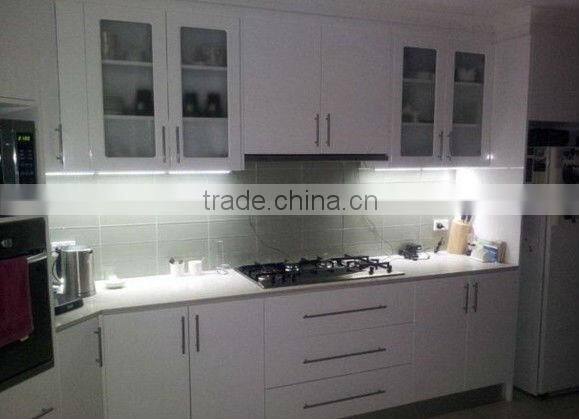

1. Architectural decoration lighting for homes, hotels, marketplaces, bars etc
2. Decoration lighting for under water project,
3. Illumination lighting using for auditorium walkway, canopy,stairway accent lighitng, amusement park
3. Emergency exit path lighting for theatres, cinemas, trains to guide people move around safely.
4. car interior and exterior lights
5. Channel letter lighting using for stores, restaurants, bars



Notice:



1 items should not work beyond its rated parameter
2 Keep attention to anti static voltage when install and use the item.

3 Do not approach to strong acid/alkali/oxidant and other corrosive chemicals, do not approach to fire.
