Help CenterFlexible LED Strips, High Quality High Brightness 5050SMD, 3 Years Warranty for RGB LED Strip Light, CE Rohs Approved
Related Products
-
LED Strip Light, IP68/IP67/IP65 Waterproof Available, High Quality 5050SMD, CE Rohs Approved, Waterproof IP68 LED TapeUS$ 2.5 - 5.5MOQ: 5 Meters -
Side Emitting Flexible LED Light Strips, DC12/24V, 335SMD, 96 LEDs/Meter, IP20 or IP67US$ 7.9 - 10.9MOQ: 5 Meters
-
Crystal Waterproof LED Strip Light, IP68 Waterproof, High Quality 5050SMD, CE Rohs ApprovedUS$ 2.5 - 5.5MOQ: 5 Meters
-
SMD 5050 LED Strip Light, High Quality 5050SMD, CE Rohs ApprovedUS$ 2.5 - 5.5MOQ: 5 Meters
-
SMD LED Strip, High Quality 5050SMD, CE Rohs ApprovedUS$ 2.5 - 5.5MOQ: 5 Meters
Specifications
RGB LED Strip LightPCB Color: White, Brown, Black
DC12/24V Input
Indoor&Outdoor Use
30LEDs/60LEDs/120LEDs per meter

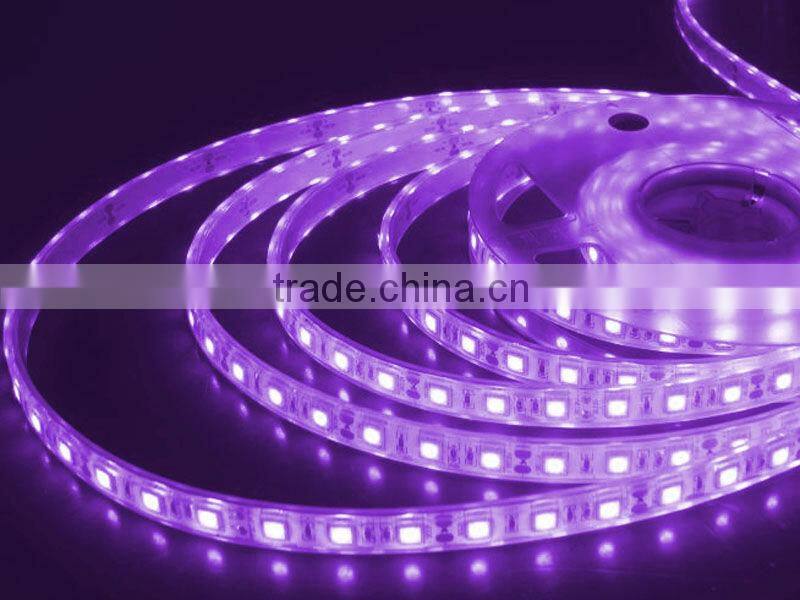

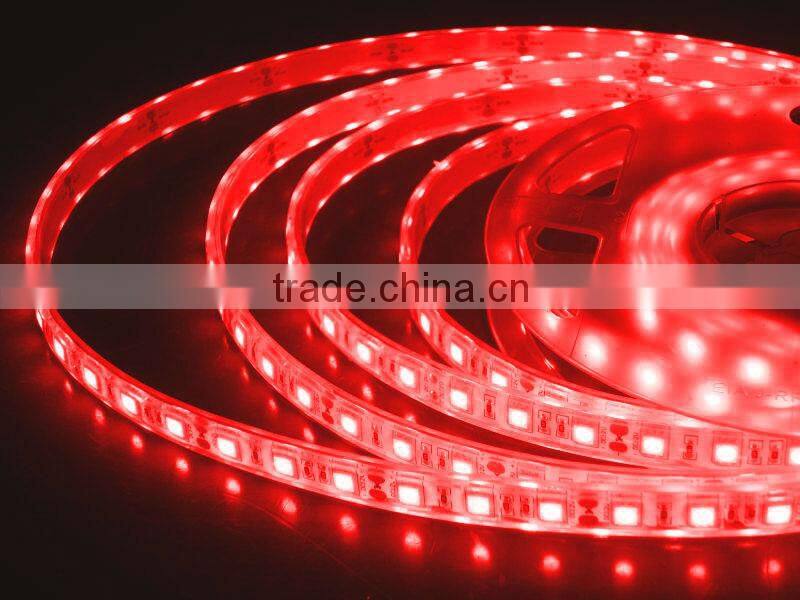

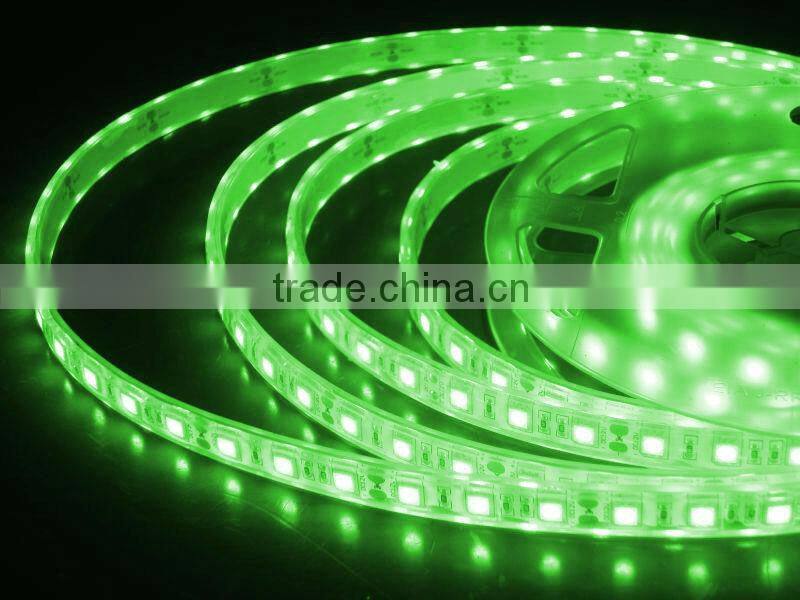

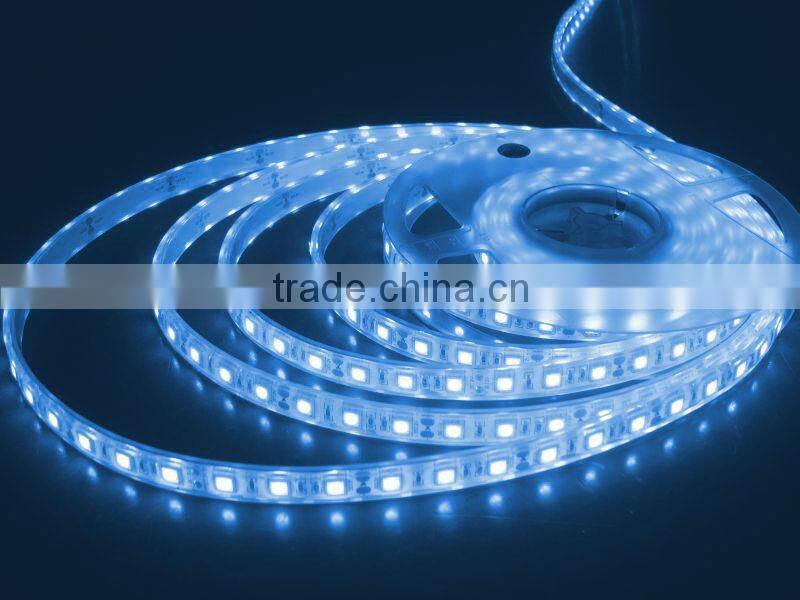

Flexible LED Strips, High Quality High Brightness 5050SMD, 3 Years Warranty for RGB LED Strip Light, CE Rohs Approved
Lusta LED Strip Light is designed and produced to generate a flexible and linear lighting quality to the desired application. It is in safety DC12V / DC24V voltage with low power consumption but high lumen output. Different IP ratings for domestic or outdoor applications.
The circuit board is with a depth of just 3mm. The LEDs produce a wide 120 degree glow which gives a reflected glow similar to that of neon from nearby surfaces and objects. Our Strip Light has a 3M self-adhesive backing so is easily applied to most smooth surfaces by simply removing the backing paper.
LED Flexible Strips are ideal for shelf Lighting including edge lighting glass, back lighting, lighting architraves, cupboard and cabinet lighting, door frames, edge lighting for steps, lighting for under kitchen cabinets, cupboards, vehicles, underwater use, outdoor application etc.
Our Strips in Different IP Rating Comparisons:
5050 30LED/meter
| Part number | Color | D | LED QTY/meter | Lumen/meter | Voltage | Power/meter | Packing |
| LST-S5050RGB-12/24-30 | Red | 100 mm | 30 | 60 | 12/24 | 7.2Watt | 5Meter/reel |
| Green | 100 mm | 120 | |||||
| Blue | 100 mm | 75 | |||||
| LST-S5050R-12/24-30 | Red | 100 mm | 30 | 180 | 12/24 | 7.2watt | 5Meter/reel |
| LST-S5050Y-12/24-30 | Yellow | 100 mm | 30 | 180 | 12/24 | 7.2watt | 5Meter/reel |
| LST-S5050B-12/24-30 | Blue | 100 mm | 30 | 225 | 12/24 | 7.2watt | 5Meter/reel |
| LST-S5050G-12/24-30 | Green | 100 mm | 30 | 360 | 12/24 | 7.2watt | 5Meter/reel |
| LST-S5050W-12/24-30 | white | 100 mm | 30 | 450~585 | 12/24 | 7.2watt | 5Meter/reel |
| LST-S5050WW-12/24-30 | warm White | 100 mm | 30 | 360~540 | 12/24 | 7.2watt | 5Meter/reel |
| LST-S5050P-12/24-30 | pink | 100 mm | 30 | 180 | 12/24 | 7.2watt | 5Meter/reel |
5050 60LED/meter
| Part number | Color | LED QTY/meter | Lumen/meter | Input | Power/meter | Packing |
| LST-S5050RGB-12/24-60 | Red | 60 | 120 | 12/24V DC | 14.4 watt | 5 meter/reel |
| Green | 240 | |||||
| Blue | 150 | |||||
| LST-S5050R-12/24-60 | Red | 60 | 360 | 12/24V DC | 14.4 watt | 5 meter/reel |
| LST-S5050Y-12/24-60 | Yellow | 60 | 360 | 12/24V DC | 14.4 watt | 5 meter/reel |
| LST-S5050B-12/24-60 | Blue | 60 | 450 | 12/24V DC | 14.4 watt | 5 meter/reel |
| LST-S5050G-12/24-60 | Green | 60 | 720 | 12/24V DC | 14.4 watt | 5 meter/reel |
| LST-S5050W-12/24-60 | White | 60 | 1170 | 12/24V DC | 14.4 watt | 5 meter/reel |
| LST-S5050WW-12/24-60 | Warm White | 60 | 1080 | 12/24V DC | 14.4 watt | 5 meter/reel |
| LST-S5050P-12/24-60 | Pink | 60 | 360 | 12/24V DC | 14.4 watt | 5 meter/reel |
RGB LED Strip Light:

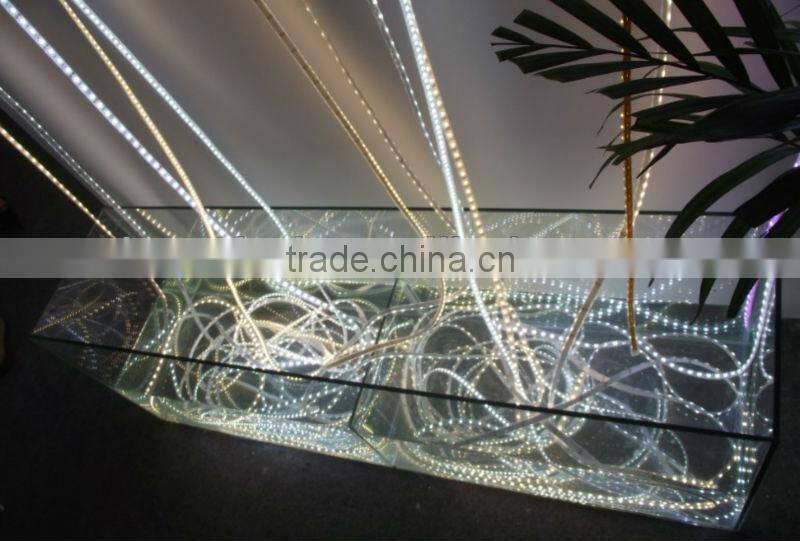

Our IP68 LED Strip Lights in Our Showroom:
Q & A for LED Strip Lights:
Q: How many protection ratings for your LED Strip Lights?
A: IP20 Non-waterproof, IP65 Epoxy Resin Dropper, IP67 Silicone Tube, IP68 Crystal.
IP20 Non-waterproof: PCB (Printed Circuit Board) is with self-adhesive back.
IP65 Epoxy Resin Dropper, which is also called 'Surface Injection': PCB is encapsulated with plastic gel at surface, with self-adhesive back. Water resistant coat (IP65)
IP67 Silicone Tube: PCB is enveloped by silicone tube, and with two ends sealed by gel. Without self-adhesive back. Water resistant coat (IP67).
IP68 Crystal: which is also called 'Whole Injection': PCB is encapsulated with plastic gel at both sides. Without self-adhesive back. Water resistant coat (IP68).
Q: How many PCBs for your LED Strip Lights?
A: Normally we stock Copper Board and White Board.
Copper Board is natural color of Copper PCB, nick name: Golden Board and Yellow Board.
White Board is white oil printed on Copper PCB.
Besides, Black Board is available. Lead time takes a little bit longer. Please contact our sales team for detaisl if needed.
Q: Can I cut my LED Strip Lights by myself?
A: Of course you can. All LED strip lights are cuttable into required lengths and can be extended. Every 3 LEDs (DC12V) or 6 LEDs (DC24V) are cuttable.
Q: Can I use LED Strip Lights with Dimmer switch?
A: Yes. The majority of our LED Lights can be used with a dimmer switch. Please contact our professional sales team for your Dimmer type.
Q: How do I power my LED Strip Lights?
A: Using Constant Voltage Power Source to power our led strip lights. We would like to suggest you use 120% power than LED strip light's consumption.

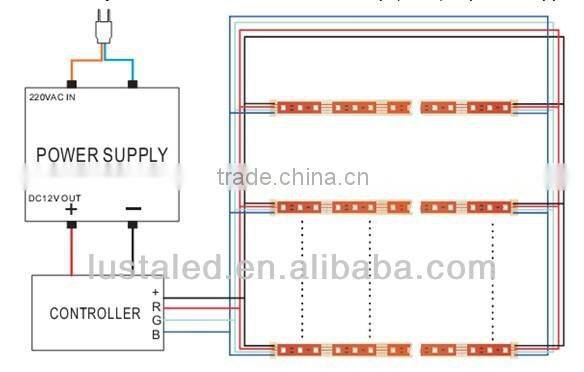

How to connect:
Single Color
RGB
Application:
Packing:
