Specifications

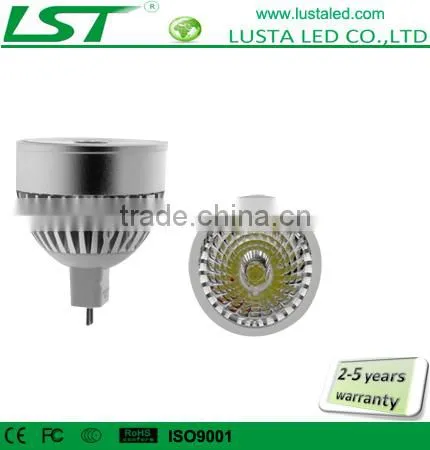

GU 5.3 LED Spotlight Dimmable1) COB Technology, high lumen output
2) Anti-glare lens design
3) Warranty: 3 Years

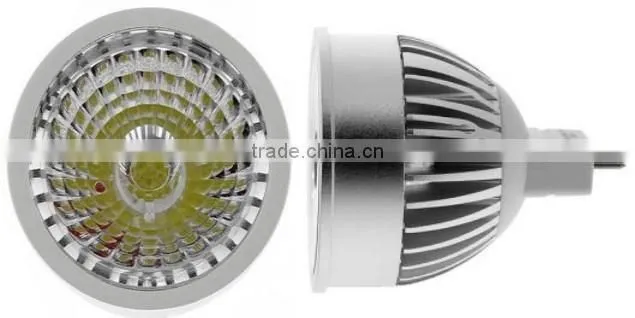

Anti-glare Les Design, 3 Years Warranty, Bridgelux COB, Uniform Lighting Effect, 15/24/38 degree, GU 5.3 LED Spotlight Dimmable
Advantages offered by COB technology include:
1) reduced space requirements;
2) reduced cost;
3) better performance due to decreased interconnection lengths and resistances;
4) higher reliability due to better heat distribution and a lower number of solder joints;
5) shorter time-to-market;
6) better protection against reverse-engineering.
Product Specification:
GU10 Base:
|
Model Parameter |
LST-GU10-COB5W |
LST-GU10-COB7W |
LST-GU10-COB9W |
Input voltage |
AC100-240V_ 50/60Hz |
||
Power factor |
>0.9 |
||
Beam angle (o) |
24/38/60 |
||
Power (W) |
5 |
7 |
9 |
Luminous flux(lm) |
448 |
675 |
883 |
LED type |
COB |
||
CRI |
>85 |
||
Dimmable |
Yes |
Yes |
Yes |
Color temperature |
WW/NW/PW optional |
||
MR16 Base:
|
Model Parameter |
LST-MR16-COB5W |
LST-MR16-COB7W |
LST-MR16-COB9W |
Input voltage |
AC/DC 12V |
||
Power factor |
>0.9 |
||
Beam angle (o) |
15/24/38 |
||
Power (W) |
5 |
7 |
9 |
Luminous flux(lm) |
436 |
651 |
732 |
LED type |
COB |
||
CRI |
>80 |
||
Dimmable |
No |
No |
No |
Color temperature |
WW/NW/PW optional |
||
Product Dimensions(unit: mm):
COB LED Chips for LED Light GU10:
Anti-glare Lens for LED Light GU10:
Application for LED Light GU10:
1. Building (architecture or home) decoration
2. Amusement park and theater lighting
3. Emergency hallway lighting
4. Shopping mall, restaurant, hotel, meeting room and advertisement signs backlighting
Notice:
1. Please ensure the label of packing match with actual product
2. Please make sure the power is off before use.
3. Please do not touch the product surface when it is lighting, do not see the lighting sources by eyes directly long time.
4. Indoor use only.
5. Please do not put the product as children’s toy.
Ageing Testing:
