LED Lighting Intelligent Dimming Controller,With Infrared 12 Key Panel Dimmer,Triac LED Dimmer

LED Lighting Intelligent Dimming Controller,With Infrared 12 Key Panel Dimmer,Triac LED Dimmer photo-1
US$ 8 - 11 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LUSTA LED
Model Number:
Infrared 12-Key Triac Dimmer
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou/Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name LUSTA LED
Model Number Infrared 12-Key Triac Dimmer
Type Other, Manual Swith & Remote Control, Triac LED Dimmer
Max. Load Power 150W
Voltage Other, 110V/220V

Specifications

Triac LED Dimmer
Working temperature: - 20-60 Degree
Supply voltage: AC90-240V (50Hz/60Hz)
Output current: <0.15A

 LED Lighting Intelligent Dimming Controller,With Infrared 12 Key Panel Dimmer, Triac LED Dimmer

Summarize

High pressure infrared 12 key panel dimmer is a section dedicated to LED lighting intelligent dimming controller. Using thyristor phase dimming technology, we can adjust brightness by hand knob, we can also use IR wireless remote control to distance dimming. It is suitable for business or family standard type 86 switch socket low box installation, can be surface mounted or dark outfited. It is used for controlling with various kinds of high voltage led as light source lamps and lanterns, for example: point source of light, flexible strip light, wall washer lamp, glass curtain wall light and so on. It is inexpensive, convenient connection and simple to use, etc. It adjusts brightness through the knob on the infrared remote controller and dimmers. The grey scale level is 128. It owns custom function, delay shutdown function and fixed gray output function. It also provides 0 ~ 10V PWM signal output port which can be used to control other slave control.


Product Description



Technical parameters:

  • Working temperature: - 20-60°C

  • Supply voltage: AC90-240V (50Hz/60Hz)

  • Output: 1 channel phase control output

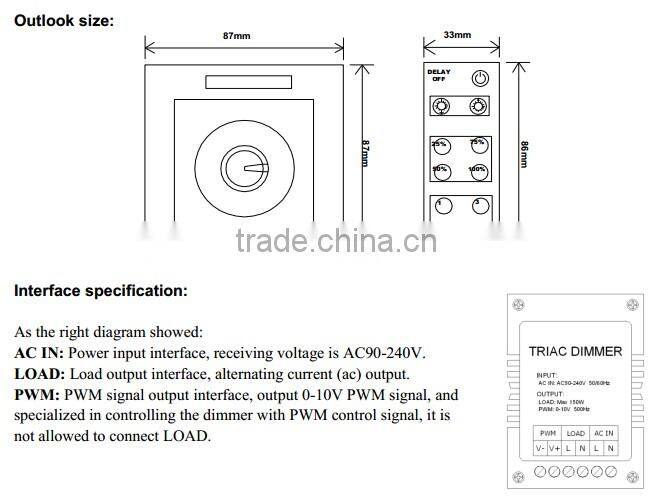

  • Dimmer size: W87 x L87 x H47mm

  • Controller size: L86 x W33 x H7mm

  • Packing size: L100 x W100 x H65mm

  • Net weight: 150g

  • Gross weight: 205g

  • Output current: < 0.15A

  • Maximum output power: 150W

Photos:

LED Lighting Intelligent Dimming Controller,With Infrared 12 Key Panel Dimmer,Triac LED Dimmer

 LED Lighting Intelligent Dimming Controller,With Infrared 12 Key Panel Dimmer,Triac LED Dimmer

 LED Lighting Intelligent Dimming Controller,With Infrared 12 Key Panel Dimmer,Triac LED Dimmer

LED Lighting Intelligent Dimming Controller,With Infrared 12 Key Panel Dimmer,Triac LED DimmerLED Lighting Intelligent Dimming Controller,With Infrared 12 Key Panel Dimmer,Triac LED Dimmer

LED Lighting Intelligent Dimming Controller,With Infrared 12 Key Panel Dimmer,Triac LED DimmerLED Lighting Intelligent Dimming Controller,With Infrared 12 Key Panel Dimmer,Triac LED Dimmer
