RF LED Dimmer,DC5-24V Input, 144W for 24V,RF LED Dimmer Switch

RF LED Dimmer,DC5-24V Input, 144W for 24V,RF LED Dimmer Switch photo-1
US$ 4.5 - 5.5 MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LUSTA LED
Model Number:
RF LED Dimmer Switch
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name LUSTA LED
Model Number RF LED Dimmer Switch
Type Other, Remote Control, RF LED Dimmer Switch
Max. Load Power 144
Voltage Other, DC 5-24V Input

Specifications

RF LED Dimmer Switch
LED Dimmer Wireless
144W for 24V
Mini size, RF control
CE Rohs approved

RF Wireless LED Dimmer, Mini RF 433MHz Wireless Control, DC5-24V Input, 144W for 24V, RF LED Dimmer Switch


Product Description



I. Summarization

RF controller adopts the advanced micro control unit, with 433MHz wireless signal to do the controlling. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on. It has many advantages such as low price, easy connection, simplicity to use and others, etc. According to the customers’ needs, it can realize ten levels brightness adjustment, eight monochromatic dynamic models, and also can realize quick flash, breathing, fadein dimming, strobe, flicker and other kinds of model, with ten levels speed adjustment, large speed span. It is easy to take, simple to use, etc.



II.Technical parameters

  Working temperature: -20-60°C

  Supply voltage: DC5-24V

  Output: 1 channel

  Connection mode: common anode

 Controller dimension: L35.0 x W15.0 x H4.5mm

  Remoter dimension: L85.9 x W39.6 x H6.9mm

  Packing size: L123.0 x W90.0 x H13.0mm

  Net weight: 35g

  Gross weight: 40g

  Static power: <0.5W

  Output current: <6A

  Output power: 5V<30W, 12V < 72W, 24V <144W

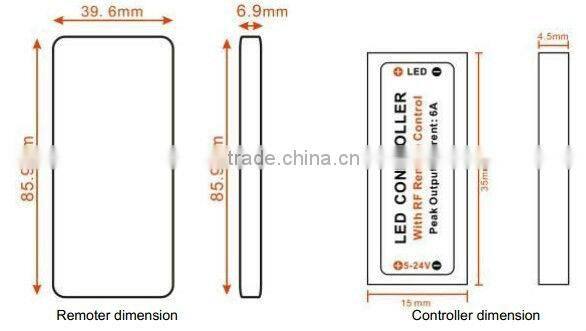

III. External Dimension

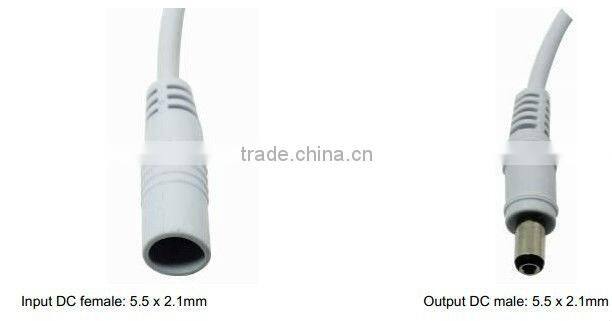

IV. Interface Specification

Remote instructions:

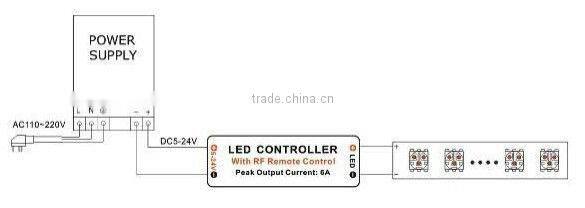

VI. Typical Applications

RF LED Dimmer,DC5-24V Input, 144W for 24V,RF LED Dimmer Switch



 RF LED Dimmer,DC5-24V Input, 144W for 24V,RF LED Dimmer Switch
