Specifications
LED Dimmer 12V RF WirelessLED Dimmer Wireless
144W for 24V
Mini size, RF control
CE Rohs approved

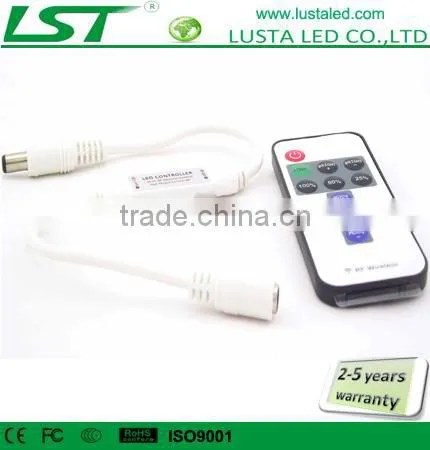

RF Wireless LED Dimmer, Mini RF 433MHz Wireless Control, DC5-24V Input, 144W for 24V, LED Dimmer 12V RF Wireless
I. Summarization
RF controller adopts the advanced micro control unit, with 433MHz wireless signal to do the controlling. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on. It has many advantages such as low price, easy connection, simplicity to use and others, etc. According to the customers’ needs, it can realize ten levels brightness adjustment, eight monochromatic dynamic models, and also can realize quick flash, breathing, fadein dimming, strobe, flicker and other kinds of model, with ten levels speed adjustment, large speed span. It is easy to take, simple to use, etc.
II.Technical parameters
Working temperature: -20-60°C
Supply voltage: DC5-24V
Output: 1 channel
Connection mode: common anode
Controller dimension: L35.0 x W15.0 x H4.5mm
Remoter dimension: L85.9 x W39.6 x H6.9mm
Packing size: L123.0 x W90.0 x H13.0mm
Net weight: 35g
Gross weight: 40g
Static power: <0.5W
Output current: <6A
Output power: 5V<30W, 12V < 72W, 24V <144W
III. External Dimension
IV. Interface Specification
Remote instructions:
VI. Typical Applications
