LED Dimmer Controller Brightness Adjustable, PWM Digital Dimming,LED Inline Dimmer

Specifications

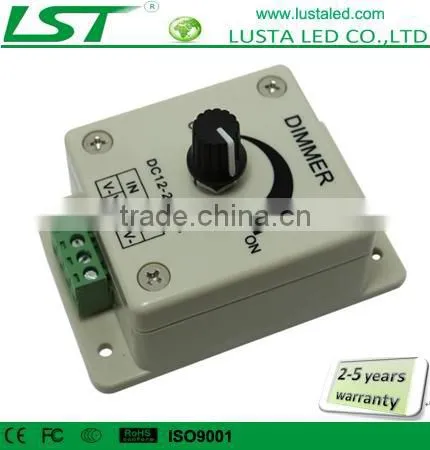

LED Inline Dimmer
0-100% brightness adjustable
12VDC or 24VDC input power option
8A max output current

12V 24V 8A LED Dimmer Switch, PWM Digital Dimming, LED Inline Dimmer



This Ivory colour plastic dimmer switch alters the light output for your dimmable LED light bulbs from 0-100%. It also has a memory setting, so it will come back on at the last level setting.



Dimmer is suitable for any 12V or 24V dimming LED light bulbs in a low voltage circuit (e.g. MR16).It will dim 9 pcs of 9w MR16 LED or 27pcs 3w MR16.



0 - 100% brightness adjustable



Easy to install and simple to use



Adjusts the light, soft and stable, no flickering



PWM digital dimming, avoids rush current to protect your LED lights



12V DC or 24VDC input power option (MR16 led use 12VDC)



8A max output current



Type: 12V 8A Dimmer



Input: 12V / 24V



Output: 1 Channel 96W 12V (0-8A) / 96W 24V (0-4A)



Static power consumption: 1W



Size: Dimension (L x W x H): Approx. 100 x 60 x 50mm





Power Input Interface:



   male and female connector with screw



Load Output Interface:



   male and female connector with screw







External Dimension:







Typical Application:
