Help CenterChinese Mini Laser Marking Machine 110mmx110mm
Related Products
Technical parameter:
Model |
YAG02 |
||
Marking scope |
110mmx110mm Standard (160x160mm optional) |
Max. laser average power |
5W Standard (10W optional) |
Min. Marking line width |
0.015mm |
Max. Marking depth |
0.3mm |
Beam quality m2 |
<6 |
Wavelength |
1064 nm |
Min character size |
0.2mm |
Marking speed |
7000mm/s |
Repetition precision |
±0.002mm |
Repeat frequency |
30KHz |
Software system |
Win XP + EZCAD marker system |
Optical system |
40 x 1,110 x 1,200mm |
Cooling style |
Air cooling |
Power consumption |
500kw |
Supply voltage |
AC220±10% 50Hz, 2A |
Operating temperature |
5°C—40°C, No Condensation, No Icing |
Desktop Laser Marking Machine YAG02
Model: YAG02
Feature:
1) Use the most advanced international laser technology, and adopt special metal laser device.
2) The optical system adopts the entire seal structure, and has the laser path preview and focus
indication function. More small appearance and more convenient operation.
3) No need water cooling system, and low operating noise, and the high precision temperature
regulation, and supply the reliable guarantee for the long time running.
4) The integrated design with the laser device, power and work table, makes the marking
efficiency high, metal marking effect perfect, and laser output mode stable.
5) Adopt special metal laser device, galvanometer scanning system etc. as critical parts,
to ensure the high precision, accuracy and speed, and long term stable performance.

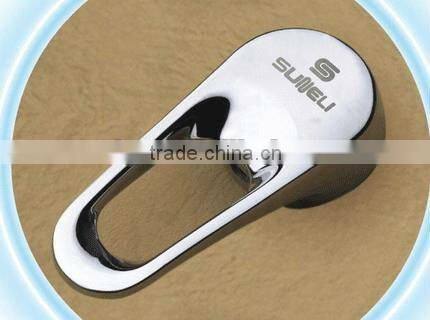

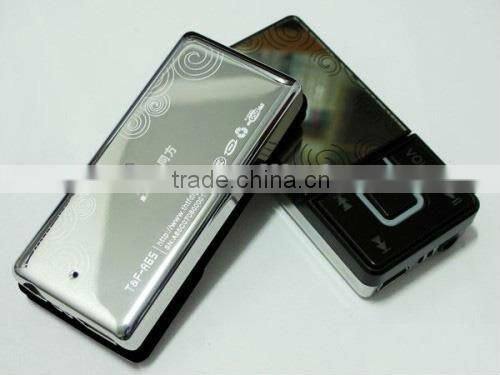

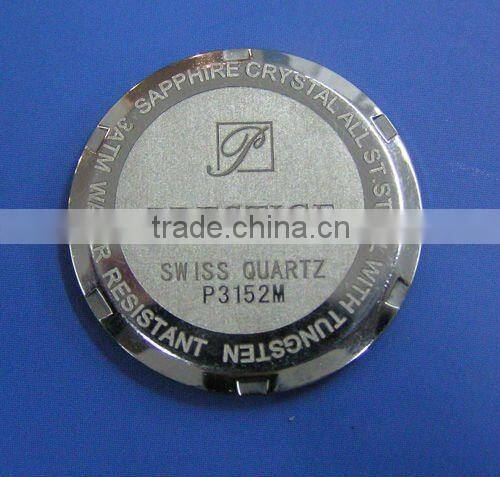

Application Industry:
Mark on metal surface and some non-metal material surface, especially suited to some processing and manufacturing with high precision
required. Such as the electrical components, hardware, tools, integrated circuit(IC), electric appliance, mobile communication, precise machinery, glass frames,
clocks and watches, decorations, automotive accessories, plastic buttons, construction material,
PVC pipes and medical instrument. Recommend to apply to the textile and cloth,
metal accessories, plastic accessories, ceramic, stone, and wood products.
Application Material:
Common metal and alloy (iron, copper, aluminum, magnesium, zinc, etc. all metal), rare metal
and alloy (gold, silver, titanium), metal oxide (all kinds), special surface treatment materials
(phosphating, aluminum annihilated, plating surface), ABS material (electric appliance shell,
daily necessitie), printing ink (euphotic buttons, printing products), epoxy resin
(encapsulation and insulating layer of electronic component)
