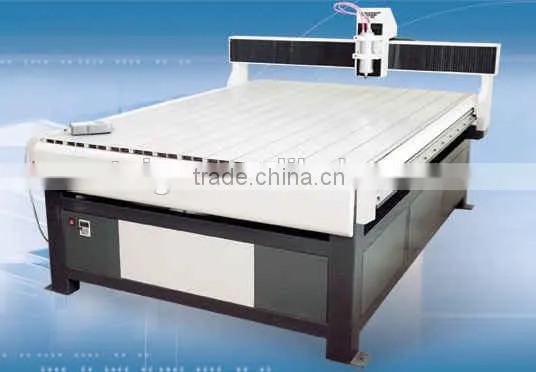

ARTSIGN Wood,MDF CNC Router
Technical Parameters :
Model |
EM-9070W |
Working area |
880×1260mm |
Travel of Engraving |
700×900×240mm |
Maximum Engraving Speed |
20000mm/min |
Power of Spindle |
Water-cooling 3000W |
Spindle Speed |
6000~24000rpm |
Manner of receiving data |
Connect with PC directly |
Driving system |
Stepper Motor (panasonic servo motor is optional) |
Tool Diameter |
3.175, 6, 12.7mm |
Structure |
Industrial steel box-type structure |
Transmission |
High-precision gear rack |
XYZ Guiding Rails |
Circular rail(linear guide optional) |
Reposition Accuracy |
Less than 0.05/300mm |
Controller |
DSP with USB or NC Studio |
Format of Instructions |
G code or HPGL |
Voltage |
AC220V/50Hz or 380V/50Hz |
Technical Parameters:
Model |
EM-1325W |
Working Area |
2900×1440mm |
Travel of Engraving |
1300×2500×150mm |
Power of Spindle |
Inverter 3000W |
Driving system |
Stepper Motor |
Tool Diameter |
Ø3.175, Ø6.00 |
Structure |
Cast Square Tube |
XYZ Guiding Rails |
Linear Square Rails |
Transmission |
XYZ Axis High Accuracy Gear Rack |
Reposition Accuracy |
<0.03/300mm |
Maximum Engraving Speed |
20000mm/min |
Spindle Speed |
6000~24000rpm |
Interface |
USB |
Format of Instructions |
G code or HPGL |
Voltage |
AC220/50HZ |
Net Weight |
1000KG |
Packing Size |
3.5×2.5×1.65m (11.5× 8.2× 5.4ft) |
Technical Parameters:
Model |
EM-1530W |
Working Area |
3500X1660mm |
Travel of Engraving |
1500X3000X150mm |
Maximum Engraving Speed |
20000mm/min |
Power of Spindle |
Inverter 3000W |
XYZ Guide rail |
Square rails |
Rotation Speed of Spindle |
6000--24000rpm |
Manner of Receiving Data |
USB Interface |
Capacity of Memory |
32M |
Format of Instruction |
G code or HPGL |
Cutter |
3.175 or 6.00mm |
Power Supply |
AC220/50HZ |
Electric Power |
1200W |
Driving System |
Stepper |
Net Weight |
1100KG |
Packing Size(L*W*H) |
3700x2300x1780mm(15.15CBM) |
