6090 small desktop ball screw drive mini cnc router for wood metal plastic

Name: 6090 small desktop ball screw drive mini cnc router for wood metal plastic
Brand: artsign
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Product Details

Condition:	New	CNC or Not:	CNC	Place of Origin:	Shandong, China
Brand Name:	artsign	Model Number:	CNC6090/6040	Voltage:	220/230/110V 50/60HZ
Power(W):	800W	Weight:	50KGS	Certification:	CE&FDA
Warranty:	one year	After-sales Service Provided:	No overseas service provided

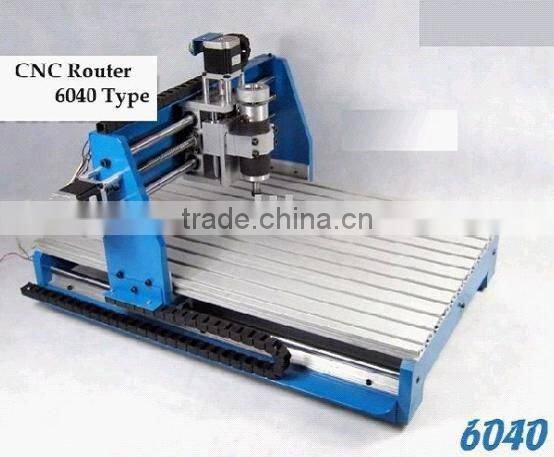

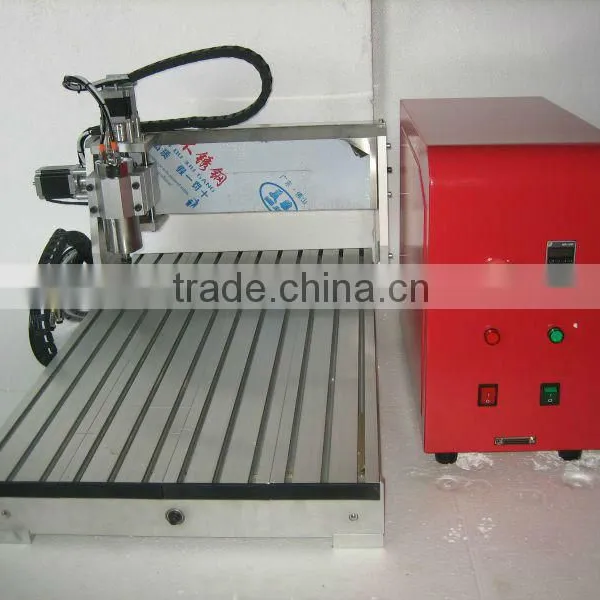

6040 Mini CNC router

Machine Size: 880×690×520mm

Movement length: XYZ=400×580×60mm

Max workpiece thickness:<=90mm

Work table size: 550×620×20mm

Sliding unit:

X-axis=20mm plain shaft,

Y-axis=16mm support rail,

Z-axis=13mm plain shaft

Transmission unit: the X/Y/Z axis are all new ball screws, and good quality coupler

Stepper motor: 57 series 2 phase, 2.8A new stepper motors

Spindle motor :300W motor,ER11 collet radial run out <=0.02mm

Resetting position accuracy: better than 0.03mm

Spindle speed: 3000-9500rpm

Max unload speed: 5000mm/min

Engraving speed: 300-3000mm/min according to the material support file: G ,.tab/.nc/.ncc/.txt

Gross Weight: 56-58kgs

Jinan Artsign Science & Technology Ltd.: Contact nameJackie Dong; Phone86-531-88679028,88690517; Address1-917, Bldg. 88, Huizhan West Rd., High-Tech Zone
