cnc router 3020

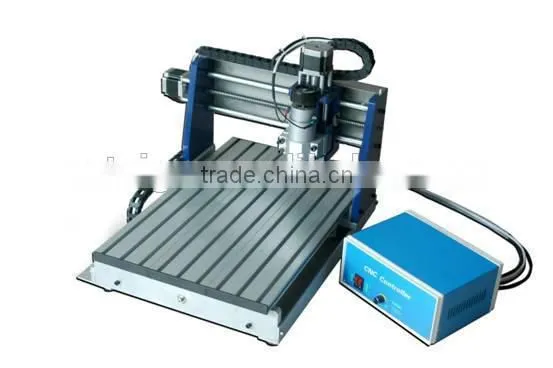

Desktop CNC router CNC 3020P

Standard Feature:

X, Y, Z Work Area: 300x200x50mm

Max feeding height(mm): 65mm

Machine Size: 550x400x390mm

Work table size: 450X240X10mm

Material: 6061+6063 aluminium alloy

Stepper motor: 57 series ,2 phase,4 lines , 3A new stepper motors

Transmission unit:1204 Trapezoidal screw

Sliding unit:

X-axis=13mm round rail,

Y-axis=16mm round rail,

Z-axis=12mm round rail.

Engraving accuracy: better than 0.03mm(difference between materials)

Resetting accuracy: better than 0.03mm

Max unload speed: 3000mm/min

Engraving speed: 0~1000mm/min

Spindle motor: 240W low noise stepper motor(air cooled)

Spindle speed: 8000 rpm

Stepper Drive: 0 ~ 3.5A adjustable 3 axis drive (6560 chips, 24V power supply)

Spindle power: 240W/AC220V (SCM variable speed)

Drive power: 24V10A switching power supply

Net weight:20kgs(Including controller box)
