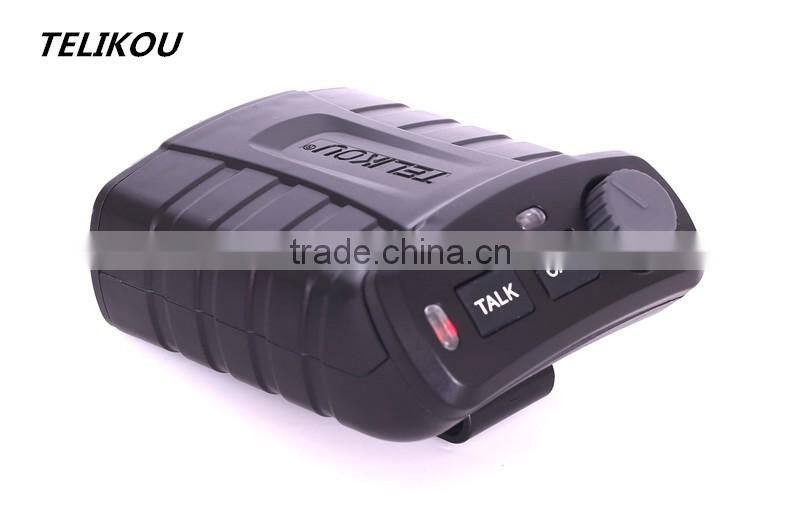

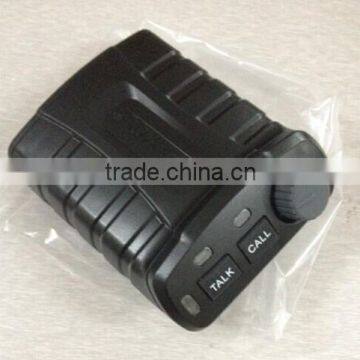

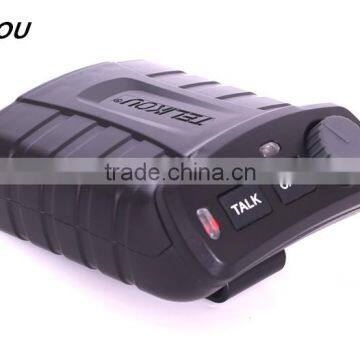

Thank you for choosing TELIKOU intercom product. BK-101 is TELIKOU new design belt pack with plastic case. It can work with any TELIKOU 2-wire Intercom station.
This belt pack adopts wired connection. It has stable and reliable performance, flexible configuration, full-duplex communication, clear and loud communication sound, easy operation, and strong noise resistance.
Specifications
1. Microphone Amplifier (From Microphone to Line)
Dynamic Headset Microphone impedance: 200 ohm
Voltage Gain: 44±3dB
Harmonic Distortion :< 1% (1000Hz)
2. Headphone Amplifier (From Line to Load)
Load impedance: 50-600 ohm
Voltage Gain: 31±3dB
Harmonic Distortion :< 2% (1000Hz)
3. Power Requirements
24V DC, 60mA±10mA
Power Range: 15-30V DC
4. Environment
-10~55°C
5. Dimension
High: 105mm, Wide: 87mm, Deep: 48mm
for headset connector , it have two types , XLR-4M and XLR-5F

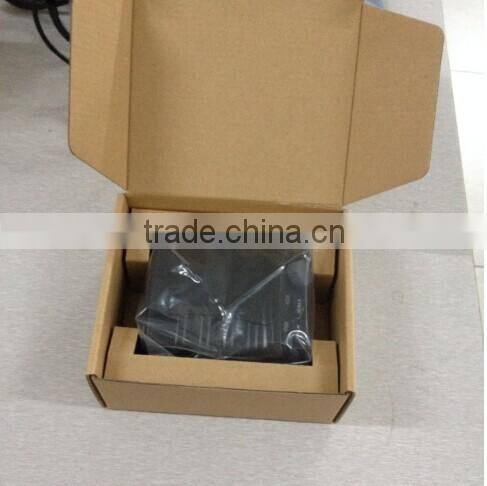

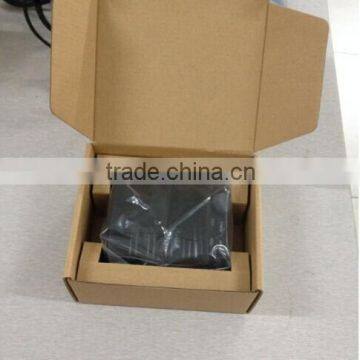

We will backed very carefully with carton , and you do not worry about in case the goods will me broken when shipping
and we will use FedEc EMS or TNT , DHL any express you want of course , if you haven your won forwarder , we will contact them and shipped all your goods to him , we have handle this for you , and come to the customs , we can help you clear the customs and help you reduce the fee of custom
thanks
