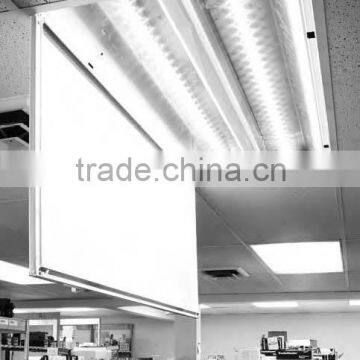

The RKLT22 LED troffer retrofit kitcombines high performance LM80 LEDs and UL class II LED driver, delivers over 2288 lumens at4000K. The RKLT22 LED troffer retrofit kitaccepts 120-277VAC, consumes only 25 watts and produces equivalent luminous intensityas 56W fluorescent fixture.
The kit includes one piece 2’X2’steel plate constructed with LED modules and LED driver, two pieces side bars, and four pieces clips. The kit provides aquick and easy upgrade solution, fits both parabolic and lensed troffer housings.
Performance Summary
Input voltage: 120-277VAC, 50/60Hz |
Input wattage: 25 watts (56W fluorescentfixture equivalent) |
Efficacy: 92LPW |
Lumenoutput: 2288lumens |
CCT: 3500K, 4000K, 5000K |
L70 life: 50,000 hours |
|
PHYSICAL SPECIFICATION | |
Length |
23.80” |
Width |
23.80” |
Housing material |
Sheet steel |
MOUNTING AND WIRING | |
Mounting |
Direct mounting |
ENVIRONMENTAL SPECIFICATION | |
Operating temp. |
-13-113°F (-25–45 °C) |
Operating humidity |
20-85% RH, non-condensing |
ELECTRICAL SPECIFICATION | |
Input voltage |
120-277 VAC, 50/60 Hz |
Input wattage |
25W |
Equivalent wattage |
65W fluorescent |
Power factor |
0.90 min. |
Total harmonic distortion |
20% max. |
OPTICAL SPECIFICATION | |
Lumen flux |
2288lm |
Efficacy |
92lm/W |
CCT |
3500K 4000K 5000K |
CRI |
80 |
R9 |
0 min. |
LIGHTING CONTROL | |
Dimming capacity |
Optional |
LONGEVITY AND WARRANTY | |
L70 Life |
50,000 hrs |
LISTING AND CERTIFICATES | |
DLC (DesignLights Consortium) | |
UL, cUL | |
CE and RoHS | |
1. Many years experience of factory directly manufacturing with very competitive price.
2. Fully QC inspection on each lighting fixtures before stocking and shipping.
3. All lighting fixtures come with ETL/ cETL, UL/cUL, DLC/ Energy Star listed and with 5 years no worry warranty.
4. Strong R & D ability for new lighting fixtures.
5.OEM / ODM service for many North American clients.
