Specifications
Two Color Injection Molding Machine GS608V1) All computer control system
2) Energy saving

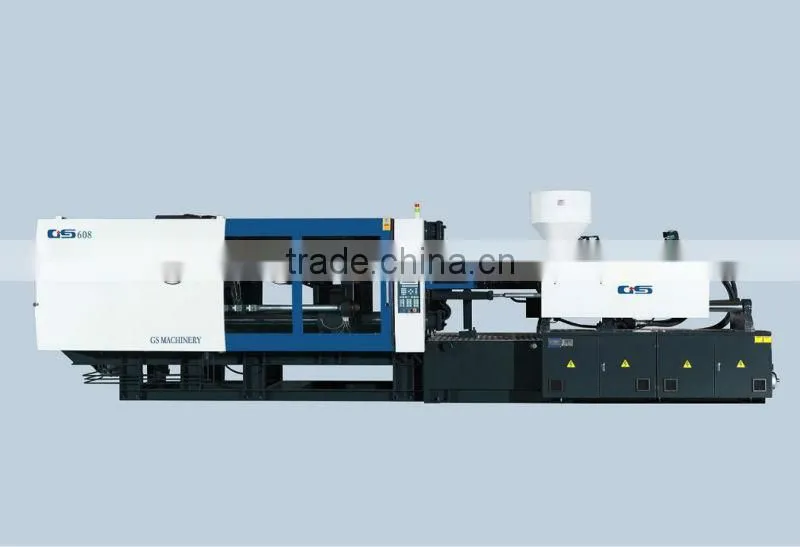

Two Color Injection Molding Machine GS608V
GSV608 |
|||||
A |
B |
C |
|||
INJECTION UNIT |
Screw Diameter |
mm |
80 |
85 |
90 |
Screw L/D Ratio |
L/D |
23.4 |
22 |
20.8 |
|
Shot size(Theoretical) |
cm3 |
1959 |
2210 |
2480 |
|
PS) Injection Weight |
g |
1783 |
2011 |
2256 |
|
PS Injection Rate |
g/s |
446 |
502 |
560 |
|
PS Plasticizing capacity |
g/s |
70 |
85 |
110 |
|
Injection Pressure |
Mpa |
201 |
178 |
159 |
|
Screw stroke |
mm |
390 |
|||
Screw Speed |
rpm |
0-130 |
|||
CLAMPING UNIT |
Clamp Tonnage |
KN |
530 |
||
Toggle stroke |
mm |
830 |
|||
Space Between Tie Bars |
mm |
840*840 |
|||
Max.Mold Height |
mm |
830 |
|||
Min.Mold height |
mm |
350 |
|||
Ejector stroke |
mm |
250 |
|||
Ejector tonnage |
KN |
160 |
|||
Ejctor Numbre |
peicc |
13 |
|||
OTHERS |
Max.Pump Pressure |
Mpa |
16 |
||
Pump Motor Power |
KW |
55 |
|||
Heater Power |
KW |
32 |
|||
PS Hopper Capacity |
Kg |
150 |
|||
Oil Tank Capacity |
L |
1300 |
|||
Machine Dimension(L*W*H) |
m |
9*2.56*3.5 |
|||
Machine Weight |
t |
30 |
|||
Company
Glorious GS,Steer the flourishing future.

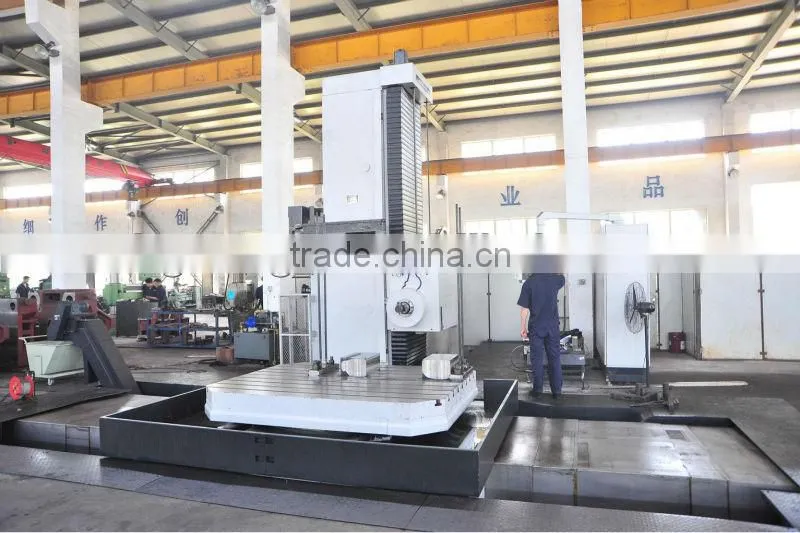

Modernized garden type factory, first-rate hardware equipment,professional science &technology team and perfect management system, ensure the outstanding product performance of "GS".
Product
Features
The GS-V plastic injection machine with variable pump series is the fine product of energy saving of Guangsu Company, which adopt the advanced international control technology of variable pump. The product adopts high response proportional variable system, making the output power of hydraulic system of plastic injection machine matching with the actual consumption, avoiding the loss of high pressure regulated flow and overflow. Compared to the machine with common constant flow pump, 30%50% electricity can be saved, showing obvious economic benefits.
In addition, the heat produced by the machine is low, reducing around 30% cooling water consumption, reducing noise around the machine, extending the service life of hydraulic seals of oil circuit and hydraulic oil, reducing greatly the use and maintenance cots of machine, at same time, the strict global environment-friendly requirements are satisfied. The GS-V plastic injection machine with variable pump series brings obvious economic benefits to wide customers relying on its excellent performance.
The GS-V plastic injection machine with variable pump series shows its excellent performance as below:
Energy saving 30-50%;
Quick response of system, short shaping period;
The oil temperature of system reduces greatly the produced heat;
Reduce the mold opening/closing impact, extending the service life of machine and mold;
Extend the service life of oil circuit system, reducing maintenance times, and saving large amount of maintenance cost;
High accuracy demand on hydraulic oil; and high accuracy return filter is provided.
Shanghai GS(GuangSu) Machinery Manufacture Co.,Ltd
AddNo.888,Kungang Rd, Songjiang Sci.& Tech. Park, Shanghai,China
Tel +8621-5785 0702; 5785 0726; 5785 0727
Fax +8621-5785 0725
P.C 201614
