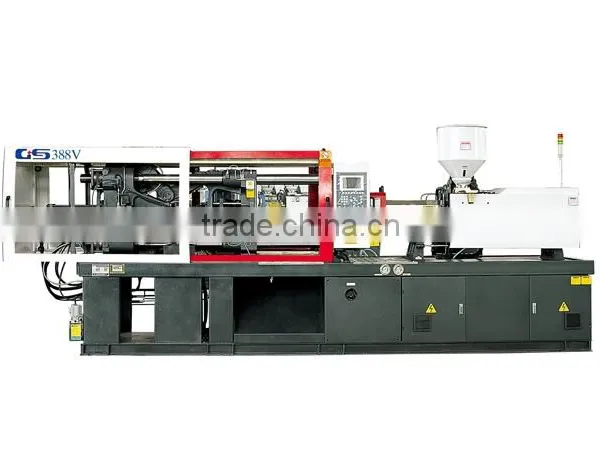

Variable Pump Plastic Injection Machine

Variable Pump Plastic Injection Machine thumbnail-1
Variable Pump Plastic Injection Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Style:
Horizontal
Brand Name:
GS
Contact Supplier Request Quote Chat Now
Shanghai GS Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Style Horizontal
Brand Name GS
Model Number GS388V
Place of Origin Shanghai, China
Plastic Type Thermoplastic

Specifications

Plastic Injection Machine
1) All computer control system
2) Super silence hydraulic circuit

Plastic Injection Machine




GS388V
A
B
C

INJECTIONUNIT
Screw Diameter
mm
65
70
75
Screw L/D Ratio
L/D
21.5

20
18.7
Shot size(Theoretical)
cm3
1072
1243
1427
PS) Injection Weight
g
976
1131
1299
PS Injection Rate
g/s
282.6
327.8
376.3
PS Plasticizing capacity
g/s
64.8
475.2
86.3
Injection Pressure
Mpa
211
182
158
Screw stroke
mm
323
Screw Speed
rpm
0-185

CLAMPINGUNIT
Clamp Tonnage
KN
3880
Toggle stroke
mm
700
Space Between Tie Bars
mm
730x730
Max.Mold Height
mm
730
Min.Mold height
mm
280
Ejector stroke
mm
180
Ejector tonnage
KN
110
Ejctor Numbre
peice
13

OTHERS
Max.Pump Pressure
Mpa
16
Pump Motor Power
KW
37
Heater Power
KW
24.85
PS Hopper Capacity
Kg
50
Oil Tank Capacity
L
750
Machine Dimension(L*W*H)
m
7.36x1.96x2.15
Machine Weight
t
15

Features:
1) All computer control system
2) Super silence hydraulic circuit
3) High speed and high-pressure injection, ideal for high precision and thin
walled molding products
4) Real-time injection process curve display
5) Enlarged clamping stroke to meet with larger stroke requirements
6) 4-stage of injection speed, 3-stage of holding pressure, 4-stage of
metering phase can be setup according to products' requirements
7) Optimal platen design, with toggle junction casting together with platen
improves rigidity of mechanical system hence improves product dimensions
accuracy
8) Screw and barrel are made of high quality new materials, which extended
their working life
9) All hydraulic components and seals are offered by famous international
manufacturers









Shanghai GS(GuangSu) Machinery Manufacture Co.,Ltd

Add: No.888,Kungang Rd, Songjiang Sci.& Tech. Park, Shanghai,China
Tel: +8621-5785 0702; 5785 0726; 5785 0727
Fax: +8621-5785 0725

P.C 201614
