GS168V PET Preform Making Machine1.avoid the loss of high pressure regulated flow and overflow
2.electricity saved

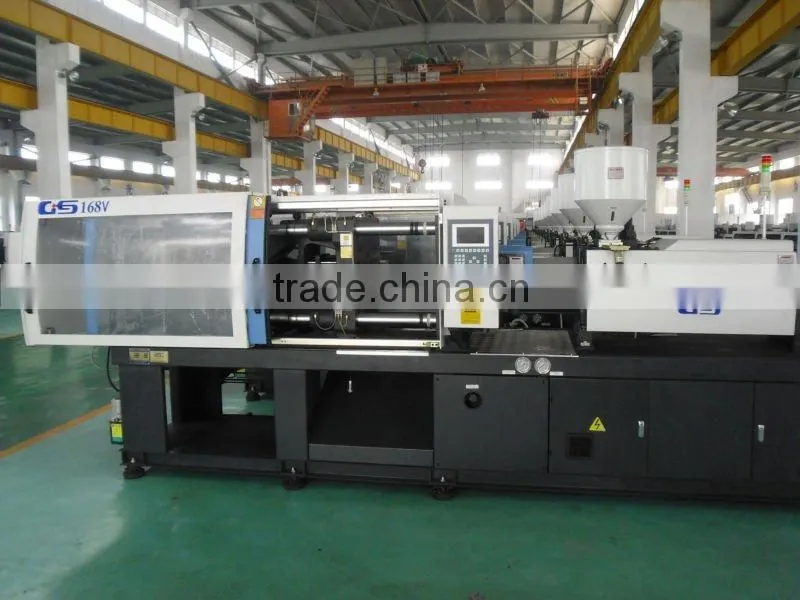

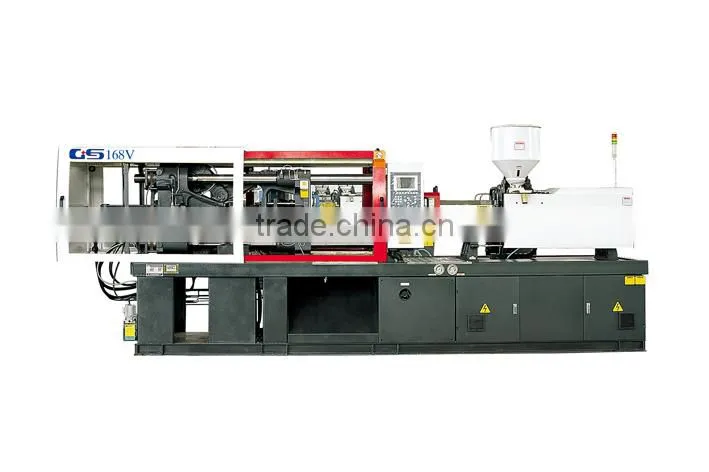

GS168V PET Preform Making Machine
This injection molding machine can be used to produce PE cap.
It can work with 16 or even 24 cavities cap mould so that you can get a big production capacity.
|
|
GS168V |
|||
A |
B |
C |
|||
|
Screw Diameter |
mm |
40 |
45 |
50 |
Screw L/D Ratio |
L/D |
22.5 |
20 |
18 |
|
Shot size(Theoretical) |
cm3 |
253 |
320 |
395 |
|
PS) Injection Weight |
g |
230 |
291 |
359 |
|
PS Injection Rate |
g/s |
100 |
126 |
156 |
|
PS Plasticizing capacity |
g/s |
13.9 |
18 |
21.6 |
|
Injection Pressure |
Mpa |
240 |
190 |
154 |
|
Screw Speed |
Rpm |
0-195 |
|||
|
Clamp Tonnage |
KN |
1600 |
||
Toggle stroke |
mm |
430 |
|||
Space Between Tie Bars |
mm |
470*470 |
|||
Max.Mold Height |
mm |
520 |
|||
Min.Mold height |
mm |
180 |
|||
Ejector stroke |
mm |
140 |
|||
Ejector tonnage |
KN |
33 |
|||
Ejector Number |
piece |
5 |
|||
|
Max.Pump Pressure |
Mpa |
17.5 |
||
pump motor power |
KW |
15 |
|||
Heater Power |
KW |
9.75 |
|||
Machine Dimension(L*W*H) |
m |
4.9*1.29*1.96 |
|||
Machine Weight |
t |
5.3 |
|||
PS Hopper Capacity |
Kg |
25 |
|||
Oil Tank Capacity |
L |
350 |
|||

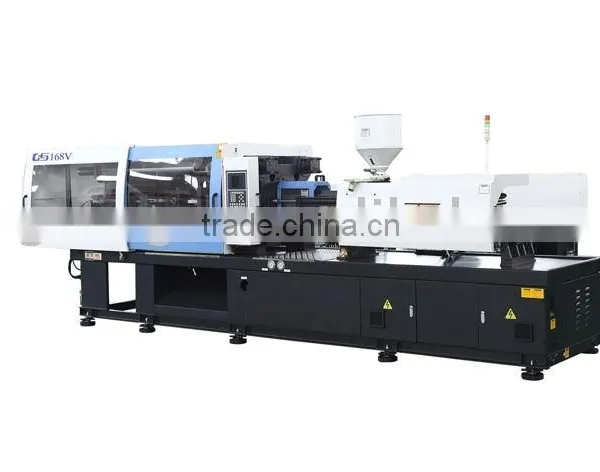

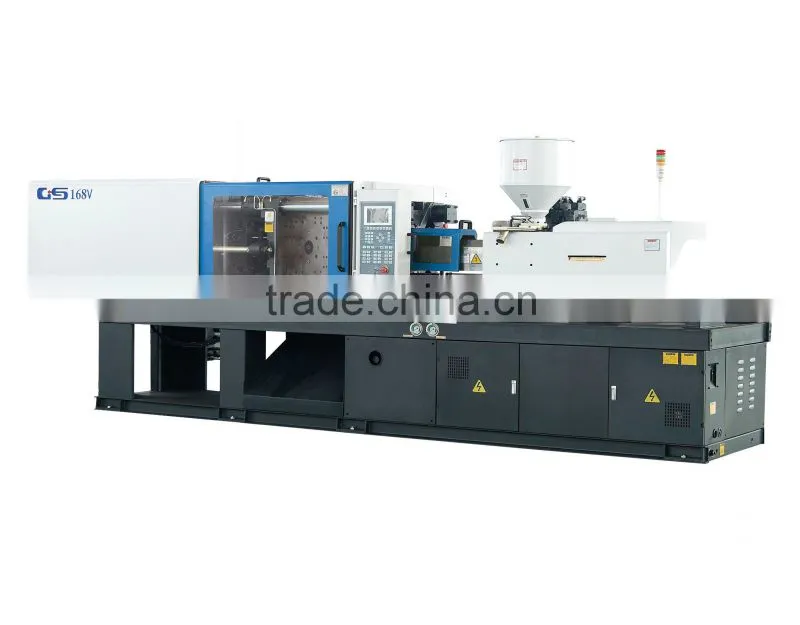

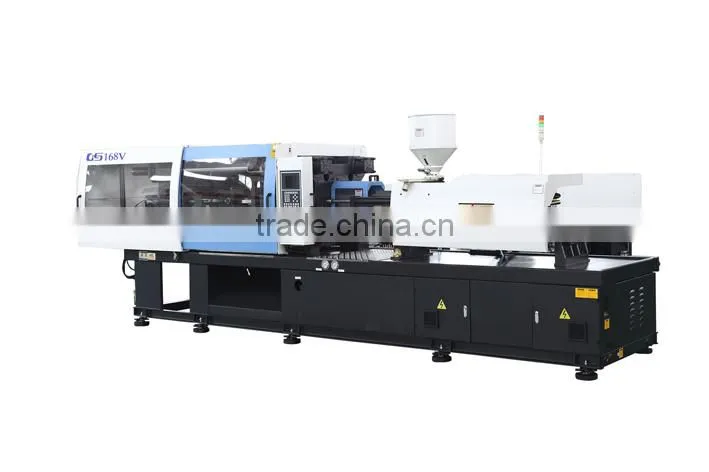

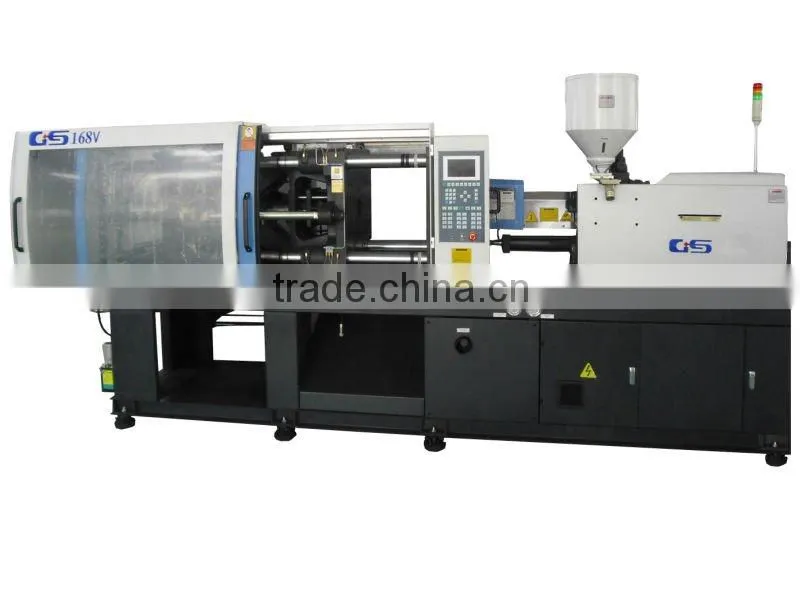

Product show
Features:
1) All computer control system
2) Super silence hydraulic circuit
3) High speed and high-pressure injection, ideal for high precision and thin
walled molding products
4) Real-time injection process curve display
5) Enlarged clamping stroke to meet with larger stroke requirements
6) 4-stage of injection speed, 3-stage of holding pressure, 4-stage of
metering phase can be setup according to products' requirements
7) Optimal platen design, with toggle junction casting together with platen
improves rigidity of mechanical system hence improves product dimensions
accuracy
8) Screw and barrel are made of high quality new materials, which extended
their working life
9) All hydraulic components and seals are offered by famous international
manufacturers
The GS-V plastic injection machine with variable pump series is the fine product of energy saving of Guangsu Company, which adopt the advanced international control technology of variable pump. The product adopts high response proportional variable system, making the output power of hydraulic system of plastic injection machine matching with the actual consumption, avoiding the loss of high pressure regulated flow and overflow. Compared to the machine with common constant flow pump, 30%50% electricity can be saved, showing obvious economic benefits.
In addition, the heat produced by the machine is low, reducing around 30% cooling water consumption, reducing noise around the machine, extending the service life of hydraulic seals of oil circuit and hydraulic oil, reducing greatly the use and maintenance cots of machine, at same time, the strict global environment-friendly requirements are satisfied. The GS-V plastic injection machine with variable pump series brings obvious economic benefits to wide customers relying on its excellent performance.
The GS-V plastic injection machine with variable pump series shows its excellent performance as below:
Energy saving 30-50%;
Quick response of system, short shaping period;
The oil temperature of system reduces greatly the produced heat;
Reduce the mold opening/closing impact, extending the service life of machine and mold;
Extend the service life of oil circuit system, reducing maintenance times, and saving large amount of maintenance cost;
High accuracy demand on hydraulic oil; and high accuracy return filter is provided.
1.adopt the advanced international control technology of variable pump
2.high response
3.avoid the loss of high pressure regulated flow and overflow
4.30~50% electricity saved

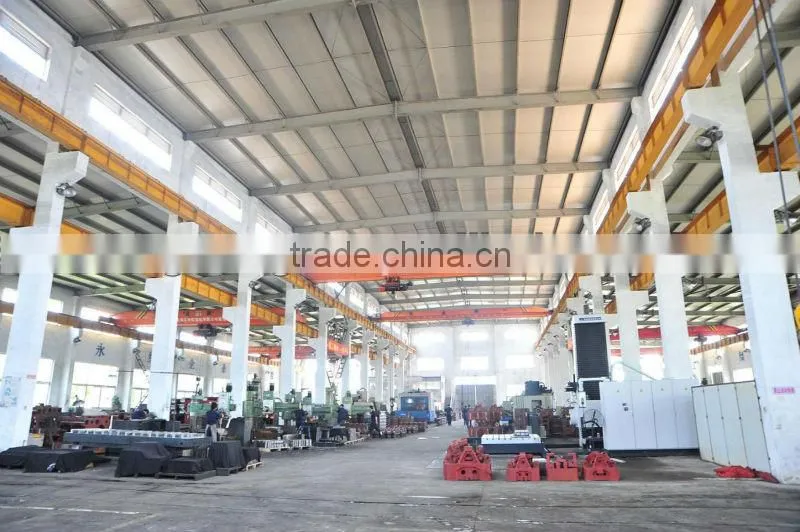

Company corners
Modernized garden type factory, first-rate hardware equipment,professional science &technology team and perfect management system, ensure the outstanding product performance of "GS".
It is equipped with the modern fashion standard in the aspects of production,design,machining technique,outline design.It lays the greatstress on the development,absorbs and introduces the excellent managing concepts,studies and develops the top grade skill and technology,fosters the professionally qualified personnel.Executing one-stop service and special-people responsible system to the sale,design,installation,troubleshooting and maintenance,we have accumulated abundant practial experien and products adjustment data.
Following the principle of "Technology oriented,Management innovation,Quality first and Customer uppermost",the company is continuing to enhance the development capacity,focusing on the development of a series of products with leading level at home and surpassing the international level,making it the new highlight of economic growth of the company.At the same time,the company has launched a series of new measures in the aspect of management and quality control,and strengthened the cooperation with the domestic and international scientific research institutes and famous enterprise to build the "GS" brand.Under the leadship of the company,all the staffs have decided to carry on the spirit of "Union,Struugle,Practice,Devotion,Innovation and Development" leading the company to a first-class famous enterprise.
Glorious GS,Steer the flourishing future.We welcome all domestic and international customers to visit us and give us intructions.Just as what we did before,we shall continue to try our level best to provide our customers with professional and considerate service to gain the confidence and support from both the old and new customers.
Shanghai GS(GuangSu) Machinery Manufacture Co.,Ltd
AddNo.888,Kungang Rd, Songjiang Sci.& Tech. Park, Shanghai,China
Tel +8621-5785 0702; 5785 0726; 5785 0727
Fax +8621-5785 0725
P.C 201614
