New Coming ETL CETL DLC Qualified 60 Watts Pure White Low Profile LED Canopy Light

Shanghai Pozeen Technology Co., Ltd.

US$ 40 - 80 MOQ: 10 Pieces

Key Specifications

Type:

Low Priofile LED Canopy

Certification:

DLC ETL cETL

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Type Low Priofile LED Canopy

Certification DLC ETL cETL

Product Description

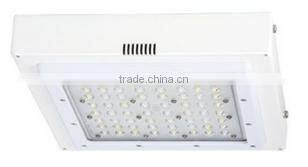

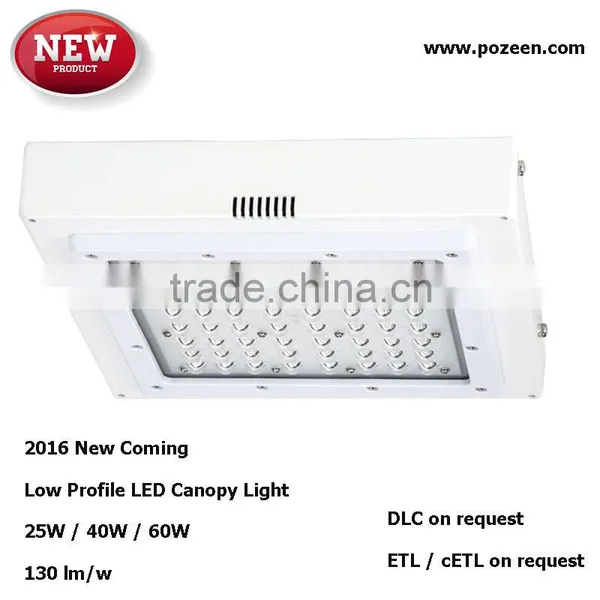

LED canopy light is an ultimate low profile canopy with elegant appearance.

The product is designed to parking garage canopy and soffit applications.

The fixture is available in ceiling-mount and pendant-mount options.

Equipped with high efficacy LEDs, the fixture produces typically 130 LPW efficacy.

Performance Summary

Input voltage: 120-277VAC, 50/60Hz

Input wattage: 25/40/60 watts

Efficacy: 130 LPW

Lumen output: 3200/4800/8600 lumens

CCT: 4000K/5000K

CRI: 70 min.

L70 life: 50,000 hours

Warranty: 5 years

MODEL	CP2050	CP4050	CP6050
>> PERFORMANCE
Input Wattage	25 W	40 W	60 W
Luminous Flux	3200 lm	4800 lm	8600 lm
Efficacy	128 lm/W	120 lm/W	140 lm/W
CRI	70	70	70
CCT	5000 K	5000 K	5000 K
CCT	*4000K and 6000K available per request.
>> PHYSICAL SPECIFICATIONS
Dimension	226X226X183 mm 8.90X8.90X7.20 in	313X313X226 mm 12.32X12.32X8.90 in	313X313X226 mm 12.32X12.32X8.90 in
Housing	Aluminum	Aluminum	Aluminum
Finish	White	White	White
Mounting	Ceiling / Pendant	Ceiling / Pendant	Ceiling / Pendant
>> ENVIRONMENTAL SPECIFICATIONS
Temperature Range	-30–130°F operating -40–140°F storage	-30–130°F operating -40–140°F storage	-30–130°F operating -40–140°F storage
Humidity	20% - 85% RH	20% - 85% RH	20% - 85% RH
Protection Rating	IP65	IP65	IP65
>> ELECTRICAL SPECIFICATIONS
Input Voltage	100-277 VAC	100-277 VAC	100-277 VAC
Power Factor	0.90	0.90	0.90
>> OPTICAL SPECIFICATIONS
Light Source	Samsung LEDs	Samsung LEDs	Samsung LEDs
>> LONGEVITY
L70 Life	50,000 hours	50,000 hours	50,000 hours
Warranty	5 years	5 years	5 years
>> CERTIFICATES AND LISTINGS
IES File	Download	Download	Download
Data Sheet	Download	Download	Download
UL/ETL	Pending	Pending	Pending
cUL/cETL	Pending	Pending	Pending
CE	Pending	Pending	Pending
DLC	Pending	Pending	Pending
LED Lighting Facts	No	No	No
LM79	No	No	No
LM80	Yes	Yes	Yes
