Help CenterETL CETL DLC 100w Recessed LED Canopy Light for Gas Station 5 Years Warranty
Related Products
-
DLC CETLus 40w/60w/90w 5000K Standard 5 Years Warranty Outdoor Gas Station Canopy Meanwell Driver CREE LEDUS$ 130 - 250MOQ: 100 Pieces -
140w LED Fuel Pump Canopy Lights With 5 Years WarrantyUS$ 160 - 270MOQ: 1 Piece
-
100w LED Fuel Pump Canopy Lights With 5 Years WarrantyUS$ 160 - 270MOQ: 1 Piece
-
180w LED Fuel Pump Canopy LightsUS$ 160 - 270MOQ: 1 Piece
-
140w LED Fuel Pump Canopy LightsUS$ 160 - 270MOQ: 1 Piece

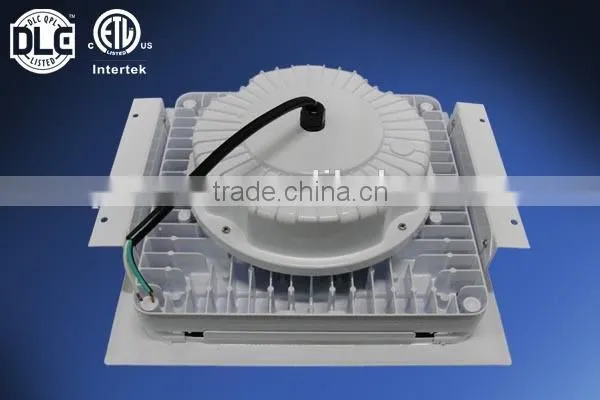

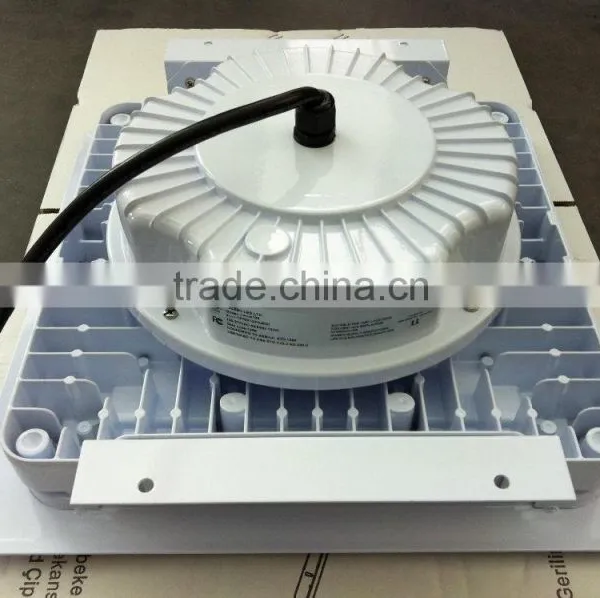

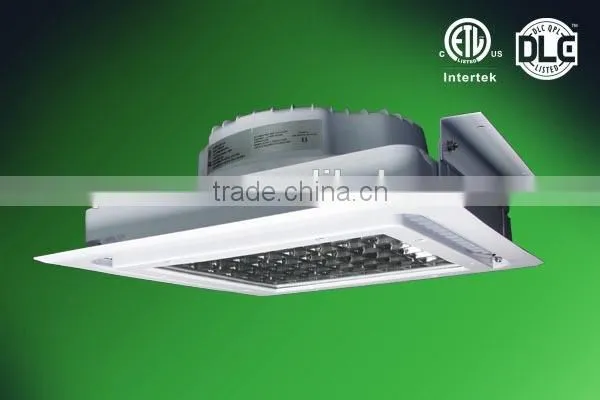

The CPRM100 recessed mount LED canopy fixture is designed to mount directly into the canopy deck at retail gas stations, convenience stores, banks and pharmacy drive thru canopies.
The CPRM100 LED canopy, powered by Mean Well LED driver, accepts 120-277VAC, consumes 100W and delivers 9237 lumens at 5000K. The fixture is constructed from rugged die-cast and extruded aluminum components. The high efficiency heat sinks maximize the performance and life of LED. The luminaire housing is equipped with gasket and provides a watertight seal between luminaire housing and canopy deck.
Performance Summary
Input voltage: 120-277VAC, 50/60Hz |
Input wattage: 100 watts (400W metal halide equivalent) |
Efficacy: 92 LPW |
Lumen output: 9237 lumens |
CCT: 5000K, 5500K |
L70 life: 50,000 hours |
Warranty: 5 years |
Mounting: recessed canopy deck |
- ETL, cETL and DLC listed
- LM80 LEDs
- Mean Well LED driver
- Available in 100W, 140W, 180W
- 120-277VAC input (347V/480V optional)
- 5000K/5500K CCT
- Typical 90 LPW
- White finish
- 50,000 hours
- 5 years warranty
|
PHYSICAL SPECIFICATION | |
Length |
16.46” (418mm) |
Width |
16.46” (418mm) |
Height |
6.93” (176mm) |
Housing material |
Die cast aluminum |
Finish |
White |
MOUNTING AND WIRING | |
Mounting |
Recessed mounting into canopy deck |
ENVIRONMENTAL SPECIFICATION | |
Operating temp. |
-30–130°F (-34–54°C) |
Operating humidity |
20–85% RH, non-condensing |
Storage temp. |
-40–140°F (-40–60°C) |
Ingress protection |
Suitable for damp/wet locations |
ELECTRICAL SPECIFICATION | |
Input voltage |
120-277VAC, 50/60 Hz |
Input wattage |
100W |
Equivalent wattage |
400W MH |
Power factor |
0.90 min. |
Total harmonic distortion |
20% max. |
OPTICAL SPECIFICATION | |
Luminous flux |
9237 lm |
Efficacy |
92 lm/W |
CCT |
5000K 5500K |
CRI |
75 min. |
Optics |
Injection molded glare reducing optics |
LIGHTING CONTROL | |
Dimming capacity |
Optional |
LONGEVITY AND WARRANTY | |
L70 life |
50,000 hrs. |
Warranty |
5 years |
LISTING AND CERTIFICATES | |
DLC (DesignLights Consortium) | |
ETL, cETL | |
1. Are you factory direct?
Yes, we have our own factory, all of our products are with competitive factory price.
2. Do you have a special price and service for wholesale?
Yes, we have the most competitive and best service to support our wholesale customers. We do supply OEM&ODM service for the wholesale, also private label is available.
3. What payment methods can I use?
You can pay by T/T, Paypal, LC.
4. How long does it take for my order to be shipped?
Generally, your order will be shipped within 7-15 working days after your payment verified. But in cas e of any hot products without raw material, it will need 15-25 days.
5. How about the warranty?
We offer 5 years warranty. All products are gone through strict test by our experienced QC before shipment.
6. How about the after sale service?
Once there is any bad defect during your usage or the new goods go bad,we will solve it for you or send you a new one for free.
