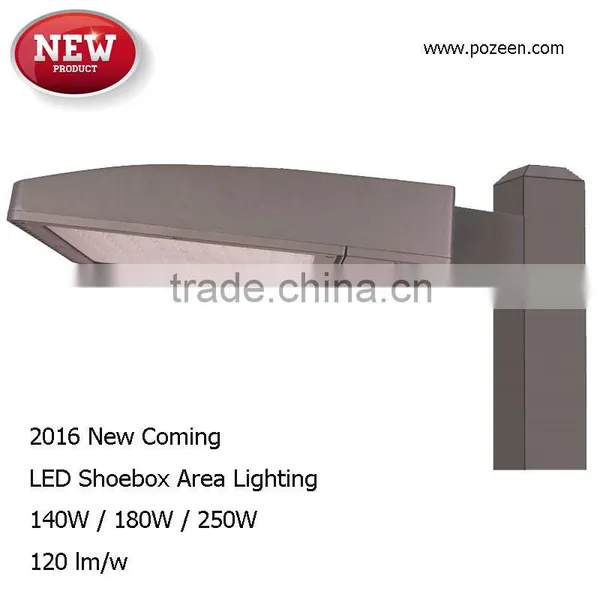

The SBAL180 LED area light fixture utilizes ultra-efficient LED modules and high
performance LED driver, accepts 120-277VAC (200-480VAC optional),
consumes 180W and produces light intensity equivalent to 600W MH fixture.
The SBAL180 comes with slip fitter, trunnion and 6 extrusion kit mounting
options, and is an ideal one-to-one replacement of conventional metal halide
and high-pressure sodium lighting fixtures for parking lot applications.
Performance Summary
Input voltage: 120-277VAC (200-480VAC optional), 50/60Hz |
Input wattage: 180 watts (400W metal halide equivalent) |
Efficacy: 110-120 LPW |
Lumen output: 20000 lumens |
CCT: 5000K |
L70 life: 50,000 hours |
Warranty: 5 years |
Rating: ETL, cETL rated for outdoor applications |
|
PHYSICAL SPECIFICATION | |
Length |
23.85” (600 mm) |
Height |
15.50” (390mm) |
Depth |
4.72” (120mm) |
Housing material |
Die cast aluminum |
Finish |
Bronze |
MOUNTING AND WIRING | |
Mounting |
Slip fitter, trunnion, 6" extrusion kit |
ENVIRONMENTAL SPECIFICATION | |
Operating temp. |
-30–130°F (-34–54°C) |
Operating humidity |
20-85% RH, non-condensing |
Storage temp. |
-40–140°F (-40–60°C) |
Ingress protection |
Suitable for damp/wet locations |
ELECTRICAL SPECIFICATION | |
Input voltage |
120-277VAC, 50/60 Hz |
Input wattage |
180W |
Equivalent wattage |
600W MH |
Power factor |
0.90 min. |
Total harmonic distortion |
20% max. |
OPTICAL SPECIFICATION | |
Luminous flux |
20000 lm |
Efficacy |
110 lm/W |
CCT |
4000K 5000K 5500K |
CRI |
70 min. |
LIGHTING CONTROL | |
Dimming capacity |
0-10V optional |
LONGEVITY AND WARRANTY | |
L70 life |
50,000 hrs. |
Warranty |
5 years |
LISTING AND CERTIFICATES | |
DLC (DesignLights Consortium) Pending | |
ETL, cETL Pending | |
CE, RoHS Pending | |
1. Many years experience of factory directly manufacturing with very competitive price.
2. Fully QC inspection on each lighting fixtures before stocking and shipping.
3. All lighting fixtures come with ETL/ cETL, UL/cUL, DLC/ Energy Star listed and with 5 years no worry warranty.
4. Strong R & D ability for new lighting fixtures.
5.OEM / ODM service for many North American clients.
