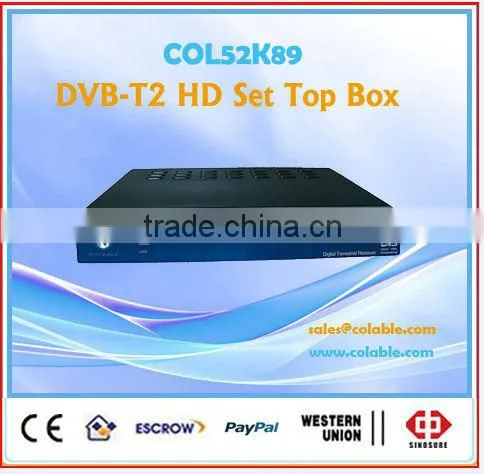

hd Digital tv Set Top Box Dvb-t2, Calbel tv Box, DVB-T2 HD Set Top Box COL52K89

Name: hd Digital tv Set Top Box Dvb-t2, Calbel tv Box, DVB-T2 HD Set Top Box COL52K89
Brand: COLABLE
SKU: 121888565

US$ 1 - 50 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

COLABLE

Model Number:

COL52K89

Colable Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name COLABLE

Model Number COL52K89

Specifications

digital tv set top box dvb-t2
Video decoder: MPEG-4/H.264, MPEG-2
Full HD and HDMI 1.3/HDCP 1.1 Copy protection

Feature

Video decoder: MPEG-4/H.264-L4.1, MPEG-2 MP-HL
Audio decoder: AAC/HE-AAC/AC3,DD+(Optional)/PCM Compliant with DVB-T2 standard
Full HD and HDMI 1.3/HDCP 1.1 Copy protection
Media playback (AVI, WMA, Divx 4/5, MP3, JPEG and BMP)
DVB Subtiling-ETSI 300473 Compliant and VBI/OSD teletext Favorite channel list edition
EPG (Electronic Program Guide) with now & next and 7 days events ready
Channel search with automatic/manual scan
Logic Channel Number
Low power consumption
MHEG-5 support (Optional)

Specification

Tuner	IF input frequency	VHF: 174MHz - 230MHz/UHF: 474MHz - 860MHz
	Bandwith	7/8MHz
	Input level	-83dBm
	Signal input	IEC-type female
Mpeg transport stream and A/V decoding	Video standard	MPEG-4 AVC/H.264 HP-L4
	SCART video model CVBS/RGB (for Europe
	Aspect ratio	4:3, 16:9
	Video resolution	576i, 576p, 720p and 1080i
	Audio standard	ISO/IEC 14.496-3, AC3, AAC, AAC+
	Audio mode	mono, dual-channel, stereo
Multimedia format	Picture	JPEG
	Audi	MP3
	Video	DivX
Front panel	Display LED display USB firmware upgrade PVR and multimedia playback Channel decoding
Front panel	Standard	DVB-T
Demodulation	QPSK, 16QAM, 64QAM
	FEC	1/2, 2/3, 3/4, 5/6, 7/8, automatic
	Guard	1/4,1/8,1/16,1/32
	Mode	2K, 8K
Demultiplexer	Standard ISO/IEC 13818-1	ARIB STB-B10
Demultiplexer	Input max. bit stream rate	120Mbps (serial)/15MBps (parallel)
Rear panel output	HDMI output (576P/720P/1080P/AUTO) Loop through output: IEC-type, connector, single tuner TV Scart, USB 2.0, S-Video CVBS L/R Audio L/R audio RCAX2 Digital Coaxial Audio
