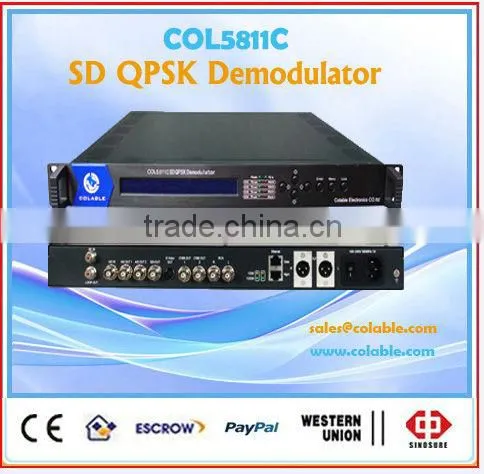

COL5811C IRD (integrated Receiver Decoder)-IP,DVB-S2, CATV Headend.

Name: COL5811C IRD (integrated Receiver Decoder)-IP,DVB-S2, CATV Headend.
Brand: colable
SKU: 121888455
Availability: InStock

US$ 1 - 2,999 MOQ: 1 Piece

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

colable

Model Number:

COL5811C

Colable Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name colable

Model Number COL5811C

Specifications

1. MPEG-2 digital & Fully DVB compliant
2. PAL / NTSC format TV
3. 2 CVBS outputs, 2 AUDIO outputs
4. 2 PCMCIA Interfaces

Features

ü MPEG-2 digital & Fully DVB compliant

ü QPSK demodulation support

ü Two routes MPEG-2 transport stream output

ü QPSK modulation frequency: 950~2150MHz, symbol rate:2~45Msps

ü User can edit various satellites and transponders information

ü PAL / NTSC format TV

ü Can receive C / Ku-band SCPC / MCPC information from Satellite

ü 256 colors display

ü PAL / NTSC automatic conversion

ü Channels automatically saved

ü 2 CVBS outputs, 2 AUDIO outputs

ü 2 PCMCIA Interfaces

ü One RJ45 interface, support NMS, TCP / IP network transport protocols to convenient network management

ü 2 TS stream outputs, One TS Stream Input

ü One S-Video

ü 2 separate CIM modules, each supports up to decrypt 8 channel Programs

ü One LNB input, one LNB output

ü 2 Video outputs

Specifications

Ethernet	Connector	RJ-45
	Interface Type	10/100 Base-T
	Protocols	TS Over IP: UDP ; NMS: UDP
DVB-CI	Descrambler	DVB-CSA
	Smart Card interface	ISO7816
	Separate (between TS, converter and card), interface	PCMCIA
Video output	2 CH CVBS	BNC interface,
Audio output	Stereo unbalanced audio	BNC interface,
ASI input	BNC interface	Input impedance 75
ASI input	Max transport rate	54Mbps
ASI output	BNC interface	Output impedance 75
	Max transport rate	54Mbps
	Physics interface	DB9 Female
General	Voltage	AC :110-240V~, 50/60Hz
	Power	<20W(Max)
	Temperature	0~40°C(Operation); 10°C~35°C(Storage)
	Humidity	10%~90%
	Dimension	44mm482mm360mm
	Approx weight	3.2kg
