Specifications
MPEG2 and DVB-S standards compatibleSupport (EPG)
Receiving VBI, fast channel-switching
Outline

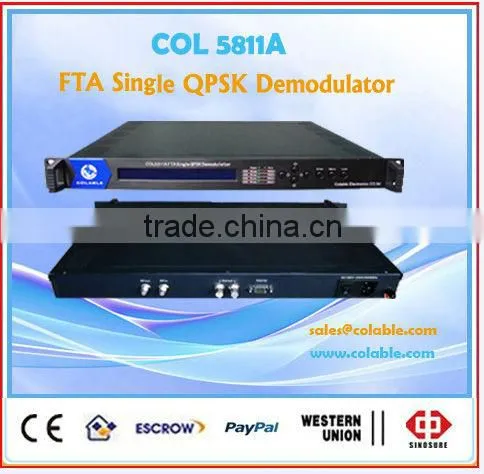

The COL5811A FTA QPSK Demodulator adopt advanced QPSK demodulation and MPEG-2 decoding technique,it can receive and decode all MPEG2 and DVB-S standards compatible digital satellite tv programs. The professional demodulator also have functions including receiving VBI, fast channel-switching, frequency and bite rate auto-searching, and User-friendly manual. Apart from this, it has 2 ASI interface, which provide head end users more convenient operation on signal source.
Features
ü MPEG2 and DVB-S standards compatible
ü User-friendly and easy operating menu
ü Editing channels with shift or delete
ü Editing all parameters of satellite and transponder
ü Support (EPG)
ü TS output
ü OSD TV image-test (DVB ETS 300 706) and subtitle supporting
ü PAL / NTSC format TV
ü Can receive C / Ku-band SCPC / MCPC information from Satellite
ü Supports 256 color LCD display
ü Auto-switching PAL/NTSC
Specifications
Signal input |
RF IN(F connector ) |
|
Input frequency |
950~2150MHz |
|
Bite rate |
2~45Mband |
|
Input Level |
-65~25dBm |
|
FEC Code Rate |
Support 1/2,2/3,3/4,5/6,7/8QPSK |
|
ASI output |
2×TS output interface, accord with ISO13818-1MPEG-2 standard |
|
Video output |
2× CVBS, RCA interface, 1 route S-Video optional |
|
Audio output |
2× RCA interface ,(L/R) |
|
|
Miscellaneous |
Size (W x L x H) |
482.6 mm×283 mm×44 mm |
Weight |
4.5kg |
|
Temperature |
0~45°C(operating ),-20~80°C(storage) |
|
Power |
AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz |
|
consumption |
5W |
|
