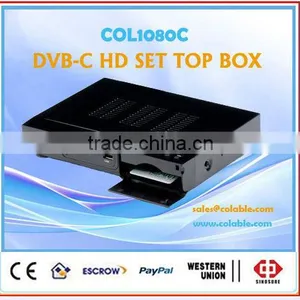

Help CenterDVB-C HD Set Top Box Decoder Box Set Top Box With HD HDMI Receiver
Related Products
-
Satellite Receiver DVB-C HD Set Top Box Decoder Box HD HDMI ReceiverNegotiableMOQ: 1 Piece -
Satellite Receiver DVB-C HD Set Top Box Decoder BoxNegotiableMOQ: 1 Piece
-
Satellite TV Decoder DVB-C HD Set Top Box DecoderNegotiableMOQ: 1 Piece
-
Satellite TV Receiver Internet DVB-C HD Set Top Box DecoderNegotiableMOQ: 1 Piece
-
DVB-C HD Set Top Box Decoder Satellite TV hd Mpeg-4 Receiver H.264NegotiableMOQ: 1 Piece
Specifications
DVB-c standardPAL/NTSC auto switching
EPG pre-viewing
Support text messaging and program editing, mobile and deleting
Outline
ü Fully compliant with DVB-C EN300429, ITU-T J.83 Annex A application, and
MPEG2/MPEG4/H.264 High Definition Up To 1080P
ü Support USB personal video recording (PVR) ,Timeshift
ü Support CONAX CAS 7.0/ Colable CAS
ü Support USB Media Playback:Music,Photo and Movie
ü Various USB Hard Disk / Flash memory supported up to 1TB (1000GB), USB media
player function
ü Support FAT32 and NTFS file system
ü Scheduled recording via EPG, wakeup automatically & record
ü Decoding H.264 HD HP L4.1 and MPEG-2 HD MP HL, MPEG-2 SD MP ML
ü lMulti-language list OSD supported
ü lEasy and fast software upgrade through USB port
ü lSupport Auto/NTSC/PAL and 4:3 16:9 wide screen
ü lFull-Function IR remote control as well as front panel buttons
ü lParental lock function and 5 Favorite channel groups
ü lChannel search in automatic, manual and network search
ü lSubtitle and Teletext support
ü lSeven days EPG with detail information Viewing
ü lCVBS,SCART and HDMI output
ü lS/PDIF digital audio output
ü Automatic Save last channel
Specifications
|
Main System |
Main Processor |
MSTAR chipset |
|
RF Input type |
F-type connector |
|
Inputimpedance |
75Ω |
|
InputFrequency: |
44MHz~862MHz |
|
Bandwidth |
6/8MHz(OPTIONAL) |
|
Decoding |
16,32,64 , 128,256 QAM |
|
Support scope |
0.7 ~ 7Mbaud |
|
|
RF Output Type |
F-type connector |
|
|
Output impedance |
75Ω |
|
|
Audio DECODING |
Decoding |
MPEG 1/2/3, AAC,AC3(optional) |
|
Audio output
|
Stereo, mono, dual, SPDIF optical digital output PCM, LPCM, WMA, Mpeg 1/2 layer 1/2 |
|
|
Video DECODING |
Transport Stream |
ISO/IEC 13818-1 MPEG-2, H.264/MPEG-4 AVC |
Profile Level |
Up to H.264 HD, HP L4.1, Up to MPEG-2 HD, MP HL |
|
Aspect Ratio |
16:9 / 4:3 Letter-Box, Pan & Scan |
|
Video Resolution |
1920x1080p/i, 1280x720p, 720x576p/i |
|
Video Format |
PAL,NTSC,Auto |
|
|
A/V & Data In/Out |
HDMI
|
HD digital display, multi format capable (Up to 1080P) |
SCART |
Video CVBS/RGB output |
|
CVBS |
Video CVBS output |
|
Coaxial |
Digital audio output |
|
USB |
High-Speed USB 2.0 Port |
|
RCA |
Analog audio output |
|
Front Panel |
Standby/VOL+/- CH+/-, LED/IR, Front keys |
|
Power Supply |
Power input voltage |
5V-2A |
Power Consumption |
8W max
|
|
