Video Cable tv Multiplexer and Scrambler With 8 Channels In, 2 ip Out

Name: Video Cable tv Multiplexer and Scrambler With 8 Channels In, 2 ip Out
Brand: COLABLE
SKU: 121887541
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

COLABLE

Model Number:

COL5282B

Colable Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name COLABLE

Model Number COL5282B

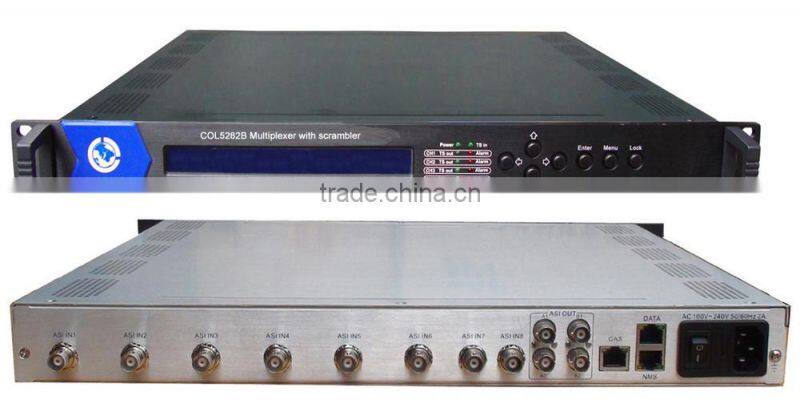

COL5282B Multiplexer with Scrambler

Outline

Mux-scrambler is the latest demodulation, multiplexing and scrambling device for digital TV

broadcasting head-end system. This mux-scrambler has maximum 8 channels input, while it

has 2 groups of ASI output and 2 corresponding IP output (share one megabits DATA port).

It can multiplex and encrypt the FTA stream to output. In conclusion, its high integration and

cost effective design make this device widely used in the Next Generation of CATV

Broadcasting system.

Features

Fully complies with ISO13818 and EN300468 standard
Integrated demodulating, multiplexing and scrambling functions 8 input interface
MPEG-2 and mpeg-4 transport stream re-multiplexing
SPTS and MPTS code stream multiplexing
Supports accurate PCR and PID re-mapping
Two groups( each group has 2 channels) separate TS output
Two channels IP output(the mirrors of the 2 ASI outputs)
Supports PSI/SI editing
Fully supports DVB general scrambling system (ETR289)
Complies with DVB common scrambling algorithm, supports the simulcrypt scrambling mode,

compatible with multiple CA system

Specifications

Input interface	8 channels (Up to 214Mbps per channel)
Re-multiplex	MPEG-2 and MPEG-4 TS re-multiplex
	PID re-mapping ( auto/manual optional)
	PCR correction
	Automatically generating PSI/SI table
Input	Packet format	204/188 self-adaption
Scrambling	Simul-crypt CA	4
	Standard	ETSI 101 197,ETSI 103 197
	Connection	Local/Remote connect
Output port		2 groups separate outputs (each group has 2 channels)
Output port	IP	2 channels separate IP output(MAX 108Mbps each channel)
PID	Output range	0000—1FFF
	PID transparent	Any PID transparent and mapping achievable
	Amount of output PID per input	256( at most)
NMS port	Ethernet port	10/100M
Miscellaneous	Demission (W x L x H)	482mm×410mm×44mm
	Weight	4kg
	Temperature	0~45℃(operation),-20~80℃(storage)
	Power supply	AC 110V±10%,50/60Hz Or AC 220V±10%,50/60Hz
	Consumption	≈18W
