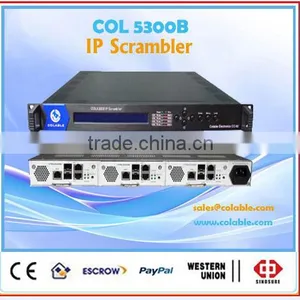

Digital video broadcast scrambler, ip scrambler for iptv COL5300B

Specifications

1.Module: Integrated 8 multiplexers and 8 Scramler
2.1 GE input RJ45 interface or SEP for UDP IP,Unicast and Multicast.

Digital video broadcast scrambler, ip scrambler for iptv

Outline

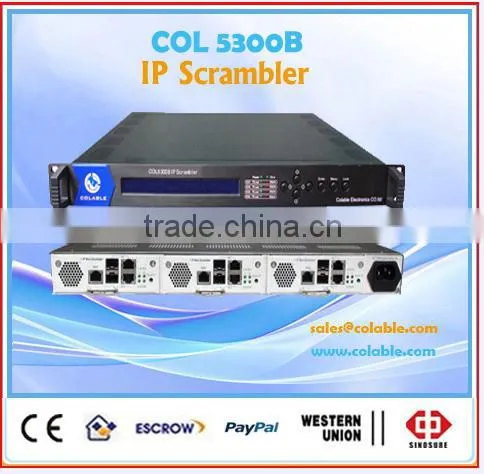

COL 5300B IP Scrambler Module is the latest multiplexing and scrambling device with high integration and powerful function. The modular design of this device makes each of its Slave cards as one device when operating. Besides, each Slave card can receive the UDP format TS through GE port. Furthermore, it supports up to 256 different input address (IP address and port No.), integrates 8 multiplexers and 8 scramblers, which can output UDP format TS through the GE port. Additionally, 1U chassis can support maximum 3 modules (24 channels multiplexing and scrambling), and 4U chassis can support maximum 12 modules (with 96 channels multiplexing and scrambling). In a conclusion, its high integration, high performance and low cost design makes this device widely used in the new generation of CATV broadcasting system.



Features

•  Dual power supply (option)
• 1 GE input, RJ45interface or SFP
• Supports up to 256 channels TS over UDP, MPTS or SPTS
• Supports unicast and multicast, supports IGMP v2v3
• Max 840Mbps for all input
• Supports MPEG2/MPEG-4 re-multiplexing and MPTS/SPTS multiplexing
• Supports accurate PCR adjusting
• Supports PID filtering, remapping and PSI/SI editing
• Supports up to 180 PIDS remapping per channel
• Support DVB general scrambling system(ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
• Support multiplexed or scrambled TS over UDP output
• Supports symbol rate 5.0~9.0Msps, 1Ksps stepping
• Supports constellation: 16QAM/32QAM/64QAM/128QAM/256QAM
• Supports RS(204,188) encoding
• Modular design,1U chassis support 3 modules , 4U chassis support 12 modules
• Support net management (NMS)



Specifications



Input	Interface	1GE input,RJ45 interface or SFP
	Transport Protocol	TS over UDP,Unicast and Multicast, IGMP V2/V3
	Transmission Bit-rate	Max 108Mbps of each channel Max 840Mbps of all channels
Multiplexing	Input channel	256 channels
	Output channel	8
	Maximum PID	180 per channel
	Function	PID re-mapping(automatically or manually)
		PCR accurate adjusting
		Generate PSI/SI table automatically
Scrambling parameters	Maximum simulcrypt CA	4
	Standard	ETR289, ETSI 101 197,ETSI 103 197
	Connection mode	Local/ remote connection
IP output	Interface	1GE output ,RJ45 interface or SFP
	Format	TS over UDP
	Code rate	1-108Mbps of each channel
System	Network management (NMS)
General	Dimension(WxLxH)	482mm×455mm×44.5mm
	Weight	3.1kg
	Temperature	0~45°C(working ),-20~80°C(storage)
	Power supply	AC 100V±10%,50/60Hz AC 220V±10%,50/60Hz
	Power consumption	15.4W
