Digital video scrambler ,ip scrambler module
Outline

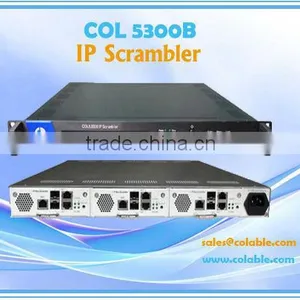

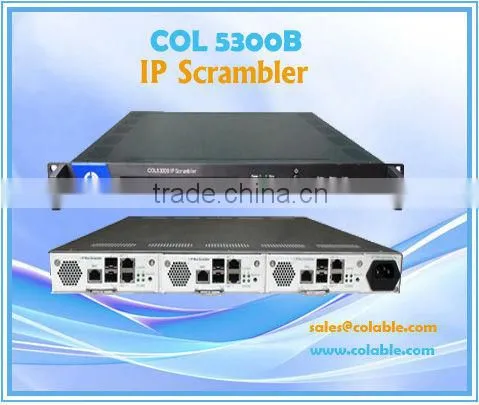

COL 5300B IP Scrambler Module is the latest multiplexing and scrambling device with high integration and powerful function. The modular design of this device makes each of its Slave cards as one device when operating. Besides, each Slave card can receive the UDP format TS through GE port. Furthermore, it supports up to 256 different input address (IP address and port No.), integrates 8 multiplexers and 8 scramblers, which can output UDP format TS through the GE port. Additionally, 1U chassis can support maximum 3 modules (24 channels multiplexing and scrambling), and 4U chassis can support maximum 12 modules (with 96 channels multiplexing and scrambling). In a conclusion, its high integration, high performance and low cost design makes this device widely used in the new generation of CATV broadcasting system.
Features
ü Dual power supply (option)
ü 1 GE input, RJ45interface or SFP
ü Supports up to 256 channels TS over UDP, MPTS or SPTS
ü Supports unicast and multicast, supports IGMP v2v3
ü Max 840Mbps for all input
ü Supports MPEG2/MPEG-4 re-multiplexing and MPTS/SPTS multiplexing
ü Supports accurate PCR adjusting
ü Supports PID filtering, remapping and PSI/SI editing
ü Supports up to 180 PIDS remapping per channel
ü Support DVB general scrambling system(ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
ü Support multiplexed or scrambled TS over UDP output
ü Supports symbol rate 5.0~9.0Msps, 1Ksps stepping
ü Supports constellation: 16QAM/32QAM/64QAM/128QAM/256QAM
ü Supports RS(204,188) encoding
ü Modular design,1U chassis support 3 modules , 4U chassis support 12 modules
ü Support net management (NMS)
Specifications
Input |
Interface |
1GE input,RJ45 interface or SFP |
Transport Protocol |
TS over UDP,Unicast and Multicast, IGMP V2/V3 |
|
Transmission Bit-rate |
Max 108Mbps of each channel Max 840Mbps of all channels |
|
Multiplexing |
Input channel |
256 channels |
Output channel |
8 |
|
Maximum PID |
180 per channel |
|
Function |
PID re-mapping(automatically or manually) |
|
PCR accurate adjusting | ||
Generate PSI/SI table automatically | ||
Scrambling parameters |
Maximum simulcrypt CA |
4 |
Standard |
ETR289, ETSI 101 197,ETSI 103 197 |
|
Connection mode |
Local/ remote connection |
|
IP output |
Interface |
1GE output ,RJ45 interface or SFP |
Format |
TS over UDP |
|
Code rate |
1-108Mbps of each channel |
|
System |
Network management (NMS) |
|
General |
Dimension(WxLxH) |
482mm×455mm×44.5mm |
Weight |
3.1kg |
|
Temperature |
0~45°C(working ),-20~80°C(storage) |
|
Power supply |
AC 100V±10%,50/60Hz AC 220V±10%,50/60Hz |
|
Power consumption |
15.4W |
|
