COL5282A Multiplexer Dvb,digital Mpeg-2 Multiplexer,8 Channels Asi Multiplexer 2 Channels Output

Specifications

Outline

COL5282A Multiplexer (8 in 2 out) is an enhanced TS multiplexer for digital TV broadcasting head-end system. It can multiplex up to 8 channels ASI input MPTS into two separate output transport stream (MPTS). The multiplexer also can insert EPG (electronic program guide), CA (conditional access), data broadcasting into each output TS. This multiplexer has the functions of supporting auto-generation of PSI/SI information, PID re-mapping, service filtering and PSI/SI editing. The bit rate of input stream can reach up to 216Mbps, while the bit rate of output stream can reach 108 Mbps. Furthermore, the COL5282A multiplexer is provided with half size LCD display and a 100M/10M Ethernet port for network management. Therefore, user can easily configure the settings of the device.

Features

• Fully complying with ISO13818 and EN300468
• MPEG-2 TS re-multiplexing support
• 8 ASI input ports
• Two separate multiplexing ASI outputs, maximum code rate up to 108Mbps
• PCR correction support
• Program sorting support
• SDT table editing support
• Generating PSI/SI information
• PID remapping support
• Extracting PSI/SI information from any route of SPTS/MTPS inputs
• Supporting the cascading connection between multiple equipments.
• Local and Remote network management support

Specifications

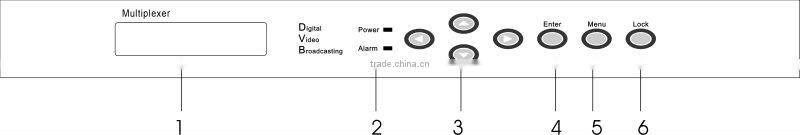

Front panel:

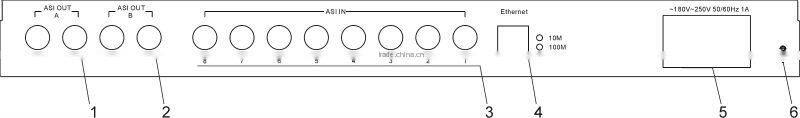

Rear panel:
