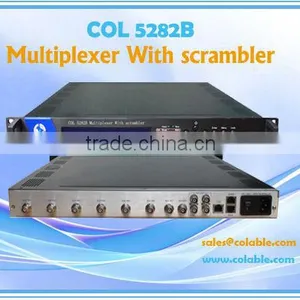

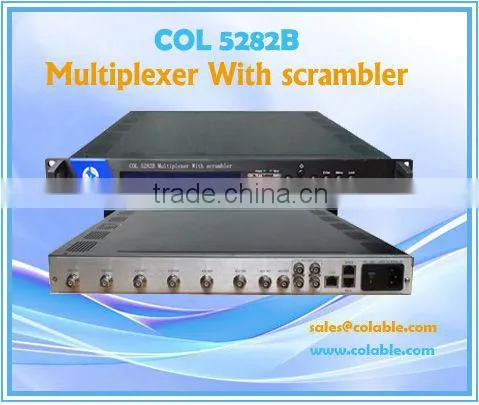

Multiplexer, scrambler, 8 channel video multiplexer

Input interface

8 channels (Up to 214Mbps per channel)

Re-multiplex

MPEG-2 and MPEG-4 TS re-multiplex

PID re-mapping ( auto/manual optional)

PCR correction

Automatically generating PSI/SI table

Input

Packet format

204/188 self-adaption

Scrambling

Simul-crypt CA

4

Standard

ETSI 101 197,ETSI 103 197

Connection

Local/Remote connect

Output port

2 groups separate outputs (each group has 2 channels)

IP

2 channels separate IP output(MAX 108Mbps each channel)

PID

Output range

0000—1FFF

PID transparent

Any PID transparent and mapping achievable

Amount of output PID per input

256( at most)

NMS port

Ethernet port

10/100M

Miscellaneous

Demission (W x L x H)

482mm×410mm×44mm

Weight

4kg

Temperature

0~45°C(operation),-20~80°C(storage)

Power supply

AC 110V±10%,50/60Hz Or AC 220V±10%,50/60Hz

Consumption

≈18W

1

LCD Display interface

2

Power indicator, green means the device work well

Alarm indicator, this is the signal unlocked indicator, blinking means some input channel does not lock signal.

Input 1 to input 8, when the input signal of tuner 1 is locked, the lighter is green. Otherwise it becomes red.

3

UP, down, left, right key

4

Enter key

5

Menu key

6

Lock key

1

RF IN:RF signal input, RF interface

2

LOOP OUT:RF signal loop output, RF interface

3

RF input series number,from 1 to 6

4

ASI IN1:ASI signal input, BNC interface

5

ASI IN2:ASI signal input,BNC interface

6

ASI OUT:A1,A2 ASI signal output,BNC interface

7

ASI OUT:B1,B2 ASI signal output,BNC interface

8

CAS:CA communication,RJ45 interface

9

DATA:IP signal output,RJ45 interface

10

NMS:network management,Ethernet
