COL5501 Dvb-s2 Uplink Modulator, Catv Modulator and rf Modulat

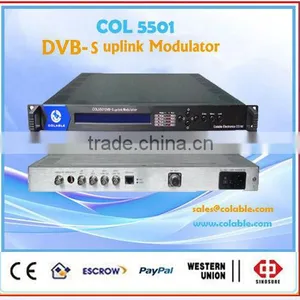

COL5501 Dvb-s2 Uplink Modulator, Catv Modulator and rf Modulat thumbnail-1

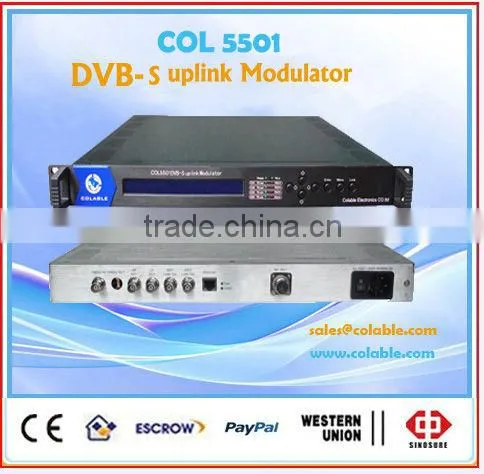

COL5501 Dvb-s2 Uplink Modulator, Catv Modulator and rf Modulat photo-1
US$ 1 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Colable
Model Number:
COL 5501
Contact Supplier Request Quote Chat Now
Colable Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name Colable
Model Number COL 5501

Specifications

1. Two ASI inputs supporting hot backup
2. 10MHz outer reference clock input
3. Output frequency range: 950~2150MHz


Features

  • Fully complying with DVB-S2(EN302307) standard
  • Backwards-compatible with DVB-S (EN300421) modulating standard
  • Two ASI inputs supporting hot backup
  • Supporting local and remote control
  • Output level attenuation
  • 10MHz outer reference clock input
  • Output frequency range: 950~2150MHz
  • Coupling output: 24V/2A DC optional
  • Coupling output: 10MHz reference clock optional
  • Full-size front panel LCD display and keyboard

Specifications



MPEG-TS Input

Supporting both packet and byte mode TS input

Supporting 188/204Byte transmission stream packet

Two ASI inputs, supporting hot backup

ASI input connector: BNC, impedance 75Ω

RF Output

Frequency is continuously adjustable from 950 to 2150MHz

Output Level attenuation is continuously adjustable from 0 to 31.5 dB; in step of 0.5 dB.

Maximum Output level: 0dBm

MER≥32dB

Connector: N type, impedance 50Ω

Coupling power supply: 24V/2A DC output

Coupling reference clock: 10MHz reference clock output

Channel coding

and modulation

Outer coding

DVB-S

RS coding

Inner coding

Convolutional

Code Rate

1/2,2/3,3/4,5/6,7/8

Constellation

QPSK

Roll-off Factor

0.2, 0.25, 0.35

Symbol Rate

1~45MBauds

Miscellaneous

Dimension

44mm×482mm×410mm

Environmental

0~45°C(operation), -20~80°C (storage)

Power
