COL5500 dvb-s qpsk modulator with acess to FM

Specifications

1. ASI standard Input connector
2. Output frequency range: 250-450 450-950 950~2150MHz

Outline



The COL5500 QPSK modulator is a high performance modulator developed according to DVB-S (ETS300-4221) QPSK standard. It has powerful spectral efficiency, advanced anti-jamming and competitive price-performance ratio. Apart from these, this modulator also has access to FM microwave device. Moreover, to guarantee the high transmission performance, this QPSK modulator adopts the disposal of energy diffusing, RS coding, convolution interlacing and pre-modulated baseband shaping. To sum up, all the approaches make this QPSK modulator can be widely used in Broadcasting, Interactive Services, News Gathering and other Broadband satellite applications.



Features



• Fully complying with DVB-S (ETS300-421) QPSK standard
• Output frequency range: 250-450 450-950 950~2150MHz
• ASI standard Input connector
• Supporting local and remote control
• Output level attenuation
• High stability and powerful anti-jamming performance
• Full-size front panel LCD display and keyboard

Specifications



Modulation	QPSK
Input	ASI Standard connector
Output	50Ω F Type
RF Range	250-450 450-950 950~2150MHz
Symbol Rate	1.5M~45Mps
Roll-off factor	Option 0.35,0.25,0.20
Convolution	Option 1/2,2/3,3/4,5/6,7/8
Output level range	0~20dB in 1dB step
Environment	0 ~ 45°C(operation);-20 ~ 80°C(storage)
Power Supply	~220V(~180V-~250V)  50Hz~60Hz 20VA
Dimension	45mm´482mm´430mm

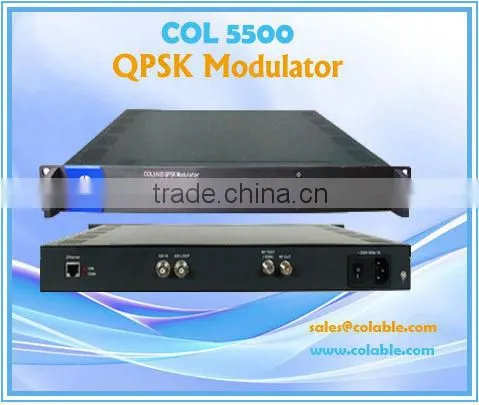

Front panel:







Rear panel:
