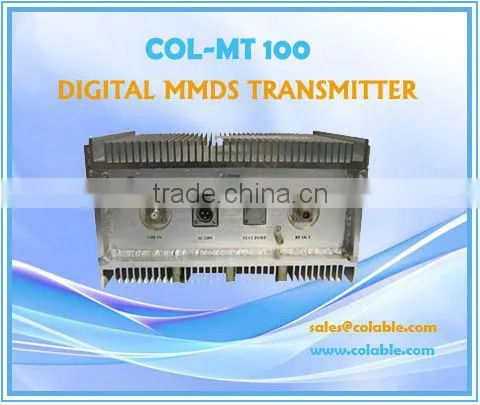

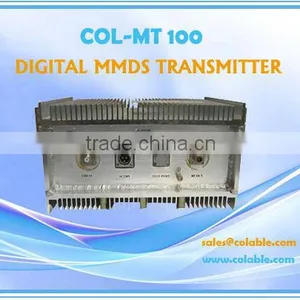

Help CenterCOL-MT 100 MMDS Digital TV Transmitter 10/50km
Related Products
-
COL-MOT Digital TV Antenna,MMDS Omni Outdoor Antenna With 5/10/50kmNegotiableMOQ: 1 Piece -
Digital Analogue Signals Transmitter/ Digital tv MMDS Transmitter/Video Transmitter COL-MT 100US$ 1 - 1,999MOQ: 1 Set
-
MMDS Receiving Device ,Antenna,digital TV Antenna,MMDS Omni Antenna/ Outdoor Type Antenna /COL-MOTUS$ 1 - 1,999MOQ: 1 Unit
-
MMDS Receiving Device,receiving Antenna, Dish AnDish Network Receiver,dish Antenna, Antenna Dish,DTV Antenna COL-MRA01US$ 1 - 1,999MOQ: 1 Unit
-
MMDS Receiving Device,intergrated Antenna,MMDS Antenna Integrated With Down Converter COL-MPA02NegotiableMOQ: 1 Unit
Specifications
1. Compatible with analogue and digital signals transmission2.Low phase noise
Outline
This manual introduces the main technical specifications, structure and electric connecting features of digital MMDS transmitter. Please check the equipment cell amounts and the status under the steps after careful reading, connect the equipment according to the demand and be sure to input the electric level, then finish the connection and use of equipment and system.
Features
üThe design of module groups is convenient to maintain the equipment.
üLow phase noise
üCompatible with analogue and digital signals transmission.
Specifications
Working frequency: |
2500 – 2700MHz |
The output power on the point of 1dB |
P1dB :50dBm |
L.O.: |
2033MHz |
AGC range: |
±8dB |
Pre-attenuation: |
7dB |
Input level: |
85dBuv/CH |
The digital output power: |
43dBm |
Interfaces: |
RF IN — FL10-75K RF OUT — N-50K TEST PORT — AK16-7 |
Power supply: |
AC220V |
The total power loss |
450W |
The total weight: |
65Kg |
Specification can be changed according to clients’ requirement | |
