Help CenterCOL5011S Integrated Digital TV Broadcasting Headend Device Video Encoder Modulator
Related Products
-
COL5011U DVB-T/DVB-C/ATSC/ISDB-T Encoder Modulator (Series Encodulator)NegotiableMOQ: 1 Piece -
Tunner,multiplexer, Scrambler in One ,Digital TV Tuner Mux With Scrambler / tv Tuner ,scrambler COL5282CNegotiableMOQ: 1 Unit
-
COL-MPA02 MMDS Satellite tv Antenna ConverterNegotiableMOQ: 100 Pieces
-
Modulator,RF Modulator,ip Modulator With Multiplexer,scrambler 8 Channels DVB-C IP QAM Modulator With MUX & SCR COL5400CNegotiableMOQ: 1 Unit
-
Encoder,modulator, Series DVB-T & DVB-C,dvb-s,s2 Combo Encoder+ Modulator COL5011UUS$ 1 - 2,999MOQ: 1 Unit
Specifications
1. 1 * Encoding Slots2.AVC/H.264 Ecoding
3.1*(YPrPb/CVBS/HDMI) in, 1*ASI in, 1* RF in
4.DVB-T RF output
Outline

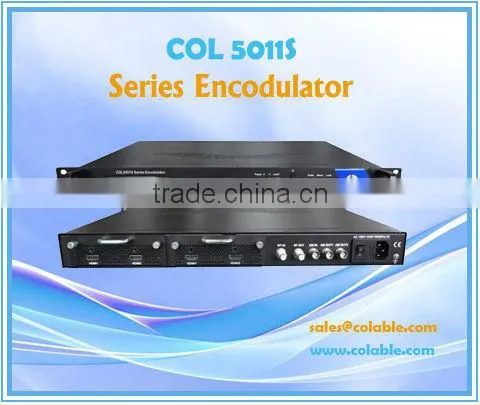

COL5011S series Encodulator (small box) is individual-module design, and clients can choose different module to be combined accordingly. The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc, and the output signal is to be received by matched STB.
The device can be used in public place such as metro, market hall, theatre, hotels, resorts, etc. It also can be used for monitoring, training and educating in company, schools, campuses, hospital… besides, it’s a good choice for bars to offer SD sports channels, for VIP entertainment channels, and more.
E.g.2: (encoding model with YPbPr, 1 ASI input, and DVB-T modulation model)
Features
- 1 * Encoding Slots
- Support AVC/H.264 Ecoding
- MPEG1 Layer II Audio
- 1*(YPrPb/CVBS/HDMI) in, 1*ASI in, 1* RF in
- DVB-T RF output
- LCN support (Logical Channel Number)
- Excellent modulation quality: MER≥42Db
- LCD display, Remote control and Firmware
- Updates via web/Ethernet
- Lowest cost per channel --- Breakthrough price
Specifications
lnput |
1x HDMI /YPrPb/CVBS/ (SDI /RF/… optional) |
||
1×ASI input, BNC interface | |||
|
Yprpb Encoding Section
|
Video |
Encoding |
AVC/H.264 High Profile Level 4.0 |
(HD) AVC/H.264 High Profile Level 3.0 (SD) | |||
Input |
HDMI /YPrPb/CVBS *1 |
||
Resolution |
HDMI/ YPrPb: 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P CVBS: 720*480_60i, 720*576_50i |
||
|
Audio
|
Encoding |
MPEG1 Layer II(1*Stereo or 2*mono) |
|
Sample rate |
48KHz |
||
Bit rate |
64kbps, 96kbps,128kbps, 192kbps, 256kbps, 320kbps |
||
DVB-T modulator section |
Standard |
EN300744 |
|
FFT mode |
2K, 8K |
||
Bandwidth |
6M,7M,8M |
||
Constellation |
QPSK, 16QAM, 64QAM |
||
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
||
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
||
MER |
≥42dB |
||
RF frequency |
30~960MHz, 1KHz step |
||
RF output level |
-30~ -10dbm(81~97 dbµV), 0.1db step |
||
|
Stream Output
|
1*RF |
||
2×ASI outputs, BNC interface | |||
|
MPTS over UDP,10/100Base-T Ethernet interface (UDP unicast / multicast) | |||
|
Interface
|
Local interface |
LCD + control buttons |
|
Remote management |
Web NMS |
||
Language |
English |
||
General |
Power supply |
AC 100V~240V |
|
|
Dimensions |
267*250*44.5mm |
|
|
Weight |
2.6kgs |
|
|
Operation temperature |
0~45°C |
|
|
Order guide Encoding modules
Modulation modules
| |||
