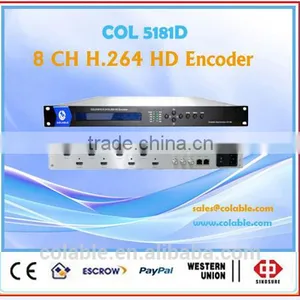

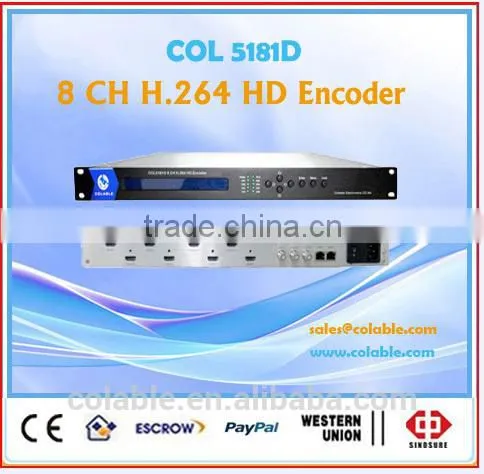

Udp Hdcp Encoder 8 Channels for Iptv System

Name: Udp Hdcp Encoder 8 Channels for Iptv System
Brand: COLABLE
SKU: 121884063
Availability: InStock

US$ 1,800 - 2,000 MOQ: 1 Pack

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

COLABLE

Model Number:

COL5181D

Colable Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

chengdu/hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name COLABLE

Model Number COL5181D

udp hdcp encoder 8 channels for iptv system

For details talk with me on whatsapp: +8613648001237, or skype: sunrui200505

Features

1. Support 8 HDMI channels input & 1 ASI Input

2. Support H.264/AVC high profile level 4.0 video encoding

3. Support MPEG1 Layer 2 (HE-AAC (V2) or LC-AAC optional) audio encoding

4. Support PSI/SI editing and inserting

5. Support VBR or CBR video bitrate mode

6. Support 720P, 1080I, 1080P HD video format

7. Support ASI output MPTS or 8 SPTS

8. Support IP Output MPTS and 8 SPTS

9. Support IP null packet filter

10. Support PID filter and transparent transport

11. Real-time output bit-rate monitoring

12. Update device through NMS port

13. Support LCD / keyboard operating, and network management (SNMP)

Specifications

Input	8×HDMI inputs
	1 ASI input, BNC interface
Video	Resolution	1920×1080_60P, 1920×1080_50P
		1920×1080_60i, 1920×1080_50i
		1280×720_60P, 1280×720 _50P
		720x576_50i, 720x480_59.95i
	Encoding	MPEG-4 AVC/H.264 high profile level 4.0
	Bit-rate	0.8Mbps~19Mbps (each channel)
	Rate Control	CBR, VBR
	GOP Structure	IBBP
	Advanced Pretreatment	De-interlacing, Noise Reduction, Sharpening
Audio	Encoding	MPEG-1 Layer 2, HE-AAC (V2), LC-AAC
	Sampling rate	48KHz
	Resolution	24-bit
	Bit-rate	64Kbps~384Kbps each channel
Multiplexing	1 x ASI input multiplexed with local 8 channels of TS
Stream output	2 x ASI output, BNC interface
	MPTS and 8 SPTS over UDP, 1000 Base-T Ethernet interface (UDP unicast / multicast);
System function	LCD/keyboard operating, net manager (SNMP)
	Chinese-English control interface
	Ethernet software & hardware upgrade
Miscellaneous	Dimension (W× L× H)	440mm×410mm×44.5mm
	Approx weight	4kg
	Temperature	0~45°C(work), -20~80°C(Storage)
	Power	AC 100V-240V±10%, 50/60Hz
	Consumption	25W
