pneumatic flangling machine for can body
- 300 Set / Sets per Month
- shanghai
- T/T
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Packaging Type: | Barrel, Cans | Packaging Material: | Wood |
Automatic Grade: | Semi-Automatic | Driven Type: | Pneumatic | Voltage: | 220v |
Place of Origin: | Jiangsu, China | Brand Name: | SUZHOU FIRST | Weight: | 280kg |
Dimension(L*W*H): | 650X450X1800mm | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Application: | Other, Paint/oil/adhesive/chemical/food |
Product Description

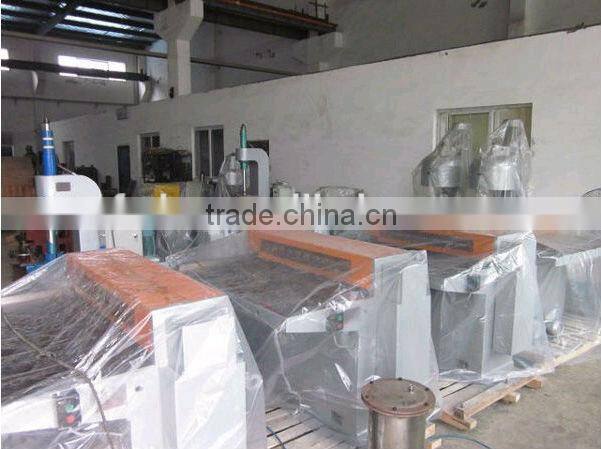

1 Cutting machine
cutting machine with round knife is used to massively cut tinplate or other sheet iron for mamanufacturing the cover and body of tin can.
Max.Thickness: | 0.5mm |
Sheet Width | 55-1050mm |
Motor | 1.1kw |
Size | 1500x1600x1105mm |
Weight | 1000kg |

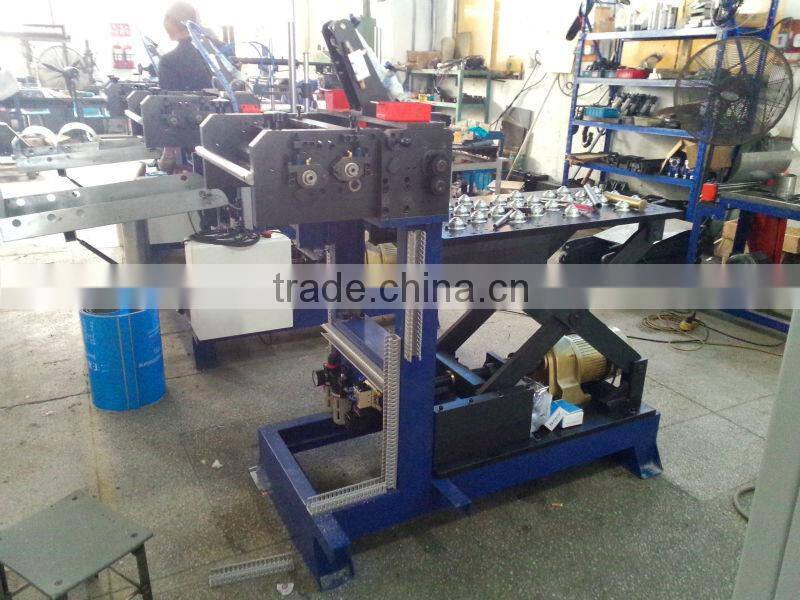

2 Automatic round forming machine
automatic round forming machine have 8 roller and with soft iron function,match with backward seam welder can save labor.
Model | CY400-AT |
Diameter range | ø75-ø300mm |
Sheet thickness | 0.2-0.4mm |
Max width | 450mm |
Productivity | 20-30cpm |
Weight | 450kg |
Size | 1300x730x1330 |

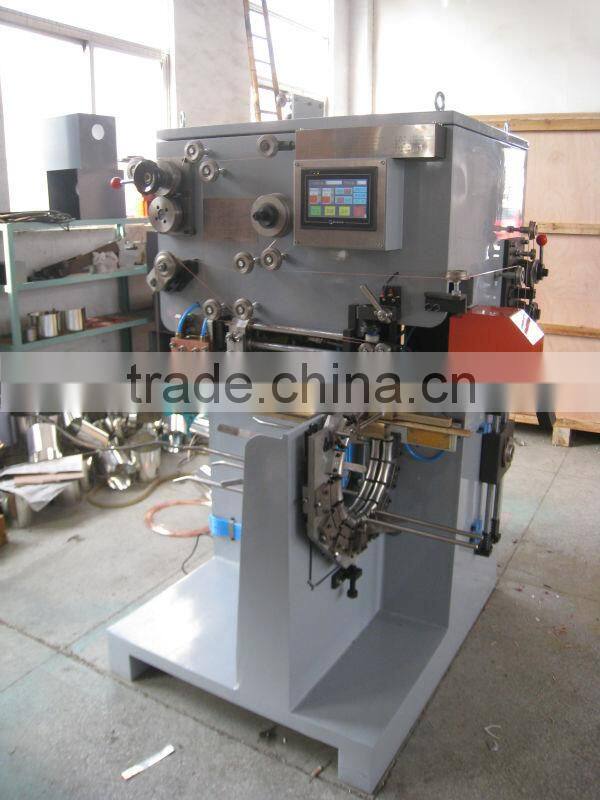

3 Backward seam welding machine
Japan Mitsubish PLC and variable frequency governor control system,change the mould can welding different size of cans.
Model | FB2000-A | FB2000-B |
Input power | 3N380V/50Hz 15KVA | |
Welding speed | ≤12m/min | |
Productivity | 20-50cpm | |
Can diameter | ø65-ø300mm | ø52-ø180mm |
Can height | 70-400mm | 70-300mm |
Overlap | 0.6-1.2mm | 0.4-0.9mm |
Thickness | 0.2-0.38mm | 0.18-0.35mm |
Copper wire | ø1.5 T2 | |
Cooling water | 0.3MPa 8-10L/min ≤20ºC | |
Weight | 1300kg | |
Size | 1350X1300X1700mm |
4 Pneumatic flanging machie
This machne is curling for top and bottom edge.
Capacity(cpm) | 30-40 |
Diameter(mm) | ø50-ø200 |
Height(mm) | 50-250 |
Power of motor | 220v |
Dimension(mm) | 650X450X1800 |
Weight(kg) | 280 |

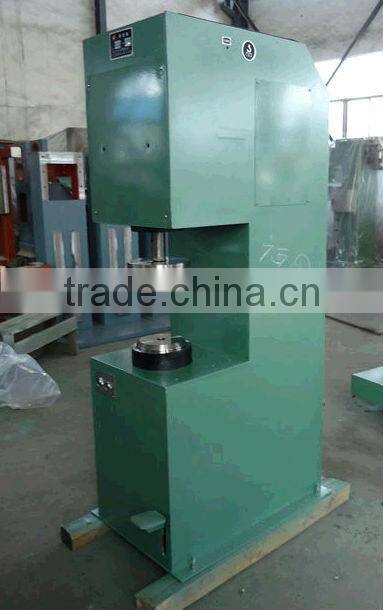

5 Sealing machine
Sealing the can lid and bottom.
Thickness | ≤0.4mm |
Diameter | 50-300mm |
Height | 50-400mm |
Capacity | 15-20cpm |
Power | 2.2kw |
Net weight | 800kg |
Size | 980x580x1900mm |
6 Samples-show
7 Company informations
8 Packaging & Shipping
9 FAQ
1:0.25L-25L round or square can production line
2:Lead time:30 days
3:Guarantee:1 year
4:Payment:T/T,L/C,30% payment in advance,70% should be balance before shipment
5:Support customize(we can make the machine base on your drawing or samples
6:Installation and commissioning:support engineers overseas installation and commissioning
10 Our advantage
1:CE certificate
2:24 hours online service
3:Supply factory layout
4:Electrical components
MITSUBISH PLC variable-frequency governor and OMRON optical switch form Japan.
SCHNEIDER electrical appliance components from France.
LG air switch,contactor and circuit breaker from South Korea.
SEMIKRON control thyristors from German.
BOURNS potentiometer from America.
11 To dear customers
Much thanks for you spare time to read this informations.hope this introduce had solved your questions.if not,pls feel free to contact me.our company was engaged in tin can making machine for 17 we have rich experience.on the other hand.most of electrical components are import world famous brand,so that can guarrantee quality.we will recomment the proper machine for you in professional view.
12 Contact way
choose one way you like,and send me by mail or call me or online.
