Specifications
HD Flash Encoder:1.1080P support
2.Encodes in MPEG-4 AVC(H.264)
3.PAL/NTSC support
4.Encrypt user name, code stream
Outline

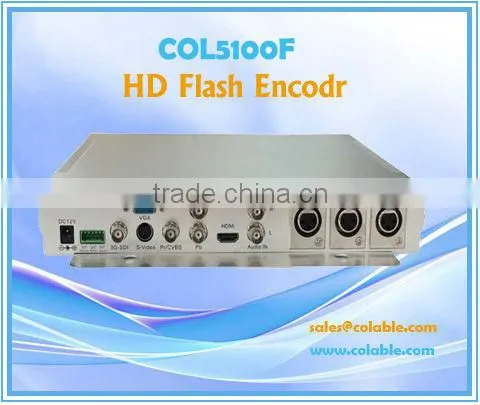

COL5100F is a HD Flash Media encoding device. This device support 1080P and the encoding IP stream was transmitting by IP network. Connecting to Adobe Flash Media Server, the COL5100F captures data from various analog and digital audio and video sources and encodes in MPEG4 AVC (H.264) format. For direct broadcasting or transmission over a network or the Internet, the output of COL5100F can work as Adobe® Flash® Media Encoder and uncompressed data can be easily encoded into web-based video.
Features
- Alarm input/output and audio alarm
- PTZ for setting and calling preset position, cruise and track support
- H.264 video compression
- MPEG-2/AAC/G.711 audio compression
- High compression rate, proceed capsulation by TS stream and FLV
- Complete TCP/IP protocol, A/V transmission through TCP/IP network and embed WEB for preview support
- Duplex talk and unidirectional broadcasting support
- PAL/NTSC support
- POE support
- OSD support
- OVERLAY support
- MOTION-DETECT support
- Start/end time configuration support
- TCP/UDP/RTMP support
- Able to real-time record the compressed code stream through network
- Able to upgrade and realize maintenance through network
- Embed WEB,able to visit video server through web
- Encrypt user name, command and code stream with password to prevent leaking
- Check device state through network
- Real-time browser of any one-channel or multi-channel A/V signal by web
Specifications
Video encode format |
H.264 |
Resolution |
1920x1080i, 1440x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 720x576i, 720x480i, 704x576, 704x480, 640x480, 352x288, 352x240, 320x240, |
Video input interface |
BNC(level:1.0Vp-p,impedance:75Ω), PAL/NTSC CVBS,S-VIDEO,VGA,YPbPr,HDMI,3G-SDI |
Video frequency |
PAL:1/16—50fps/s,NTSC:1/16—60fps/s |
Code stream type |
ES,TS,FLV |
AV input channel |
1 channel video,1 channel audio |
Compression output code steam rate |
32K--12M or user-defined(upper limit:12M,unit: Mbps) |
Video color control |
Luminance, contrast, chrominance, saturation |
Ratio type |
CBR, VBR |
OVERLAY |
Overlay-area can be self-defined by user |
OSD |
Channel name, date and time, site adjustable |
PTZ |
PELCO standard |
Storage mode |
USB |
Transmit mode |
TCP/UDP/RTMP |
Audio encode format |
AAC |
Audio encode rate |
16K/64K/128K/256Kbps |
Audio input/output |
RCA(level:0.5Vp-p,impedance:75Ω) XLR(level:0.5Vp-p,impedance:600Ω) AES |
Voice talkback input/output |
1 Channel(level:0.5Vp-p,impedance:1kΩ) |
Communication port |
Ethernet port, WIFI |
Alarm input |
1 switch-output |
Alarm output |
1 switch-output |
Power |
DC12V |
Consumption |
≤20W |
Temperature |
-10°C--+55°C |
Operating humidity |
10%--90% |
Dimensions(mm) |
44mm×181mm×258mm 44mm×278mm×258mm |
Weight |
≤1Kg |
Front Panel:

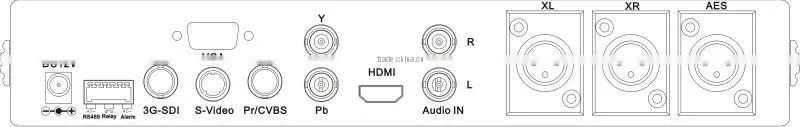

Rear Panel:
