Specifications
1. 4 channel HDMI inputs,1 ASI input supports multiplexing2. 720P, 1080I HD video format support
3. MPTS ASI output
Outline
The COL5100D HD H.264 Encoder 4 in 1 has 4 channel HDMI input interfaces, supporting MPEG4AVC/H.264 High Profile code format. It is a professional HD audio & video encoding and multiplexing device with powerful functionality. This device can simultaneously encode 4 channel HD programs, moreover, it has an ASI input and can multiplex the input TS with the 4 encoded SPTS to generate a MPTS output. Also, the PSI/SI information can be inserted into MPTS output. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems.
Features
- Audio MPEG1 Layer 2, AAC(optional)
- 4 channel HDMI inputs, 1 ASI input supports multiplexing
- H.264/AVC High Profile Level 4.0 video encoding support, advanced video pretreatment algorithm
- Real- time effective output bit-rate monitoring
- 720P, 1080I HD video format support
- MPTS ASI output
- LCD / keyboard operating
- NMS support
- MPTS over UDP unicast/multicast output
Specifications
Input | 4×HDMI inputs | |
1×ASI input, BNC interface | ||
Video | Resolution | 1920×1080I_60i, 1920×1080I_50i |
1280×720_60p, 1280×720_50p | ||
Encoding | MPEG4 AVC/H.264 High Profile Level 4.0 for HD | |
Bit-rate | 0.8Mbps~20Mbps (each channel) | |
Rate Control | CBR/VBR | |
GOP Structure | IBBP | |
Advanced Pretreatment | De-interlacing, noise reduction, sharpening | |
Audio | Encoding | MPEG-1 Layer 2 |
Sampling rate | 48KHz, 44.1KHz,32KHz | |
Resolution | 24-bit | |
Bit-rate | 64Kb/s~384Kb/s each channel | |
Multiplexing | 1×ASI input multiplexed with 4 encoding channel SPTS | |
Stream output | 2×ASI outputs, BNC interface | |
MPTS over UDP,10/100Base-T Ethernet interface (UDP unicast / multicast) | ||
System function | LCD/keyboard operating, NMS support Chinese-English control interface | |
Ethernet software upgrade | ||
General | Dimensions
| 480mm×456mm×45mm |
Approx weight | 5Kg | |
Temperature range | 0~45°C(Operating), -20~80°C(Storage) | |
Power Requirements | AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | |
Power consumption | 25W | |
1 | LCD display interface | |
2 | Indicator | Power : Power indicator |
TS in: input lock indicator | ||
CH1 TS out – CH4 TS out: device starts to encode and output TS | ||
CH1 Alarm – CH4 Alarm: device stops encoding or encoding error | ||
3 | Up/Down/Left/Right key | |
4 | Enter: Confirm key | |
5 | Menu: Menu key | |
6 | Lock: Lock key | |

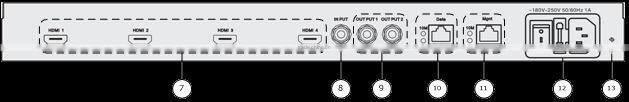

Rear panel:
7 | Input interface (4×HDMI inputs) |
8 | ASI input multiplex interface |
9 | 2×ASI output multiplex interfaces |
10 | 10M/100M network data interface |
11 | 10M/100M network management interface |
12 | Power switch and socket |
13 | Grounding pole |
