Place of Origin Sichuan, China
Brand Name COLABLE
Model Number COL5141C

Specifications

Multiplexed MPTS over UDP unicast/multicast output
4 CVBS video inputs
1 ASI input multiplexing
advanced video pretreatment

Outline

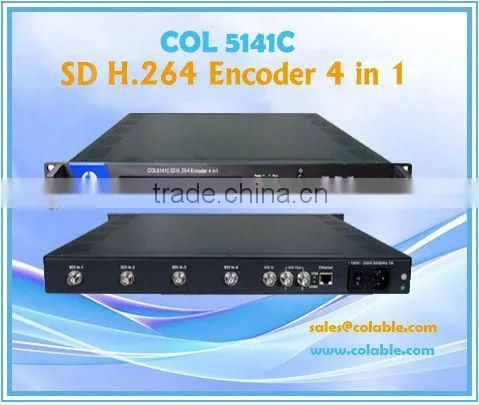

COL5141C  SD  H.264  Encoder  is  a  professional  SD  audio  &  video  encoding  and multiplexing  device  with  powerful  functionality.  It  has 4  channel  CVBS  video  and  unbalanced audio input interfaces, supporting MPEG4 H.264/AVC High Profile code format. This device can simultaneously encode 4 channel SD audio & video; moreover, it has an ASI input and can multiplex the input TS with the 4 encoded SPTS to generate a MPTS  output.  Also,  the  PSI/SI  information  can  be  inserted  into  MPTS  output.  In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.

 Features





l   H.264/AVC High Profile Level 3.0 video encoding support, advanced video
      pretreatment algorithm

l   MPEG1 Audio Layer 2, AAC (optional)

l 4 CVBS video inputs

l 4 pairs unbalanced stereo audio inputs

l 1 ASI input multiplexing support

l   Multiplexed MPTS ASI output support

l   Multiplexed MPTS over UDP unicast/multicast output

l   PAL, NTSC SD video formats support

l   LCD / keyboard operating

l   NMS support



Specifications









DTV equipment /Vedio encoder/ H.264 Encoder /SDI input (COL5141C)



 DTV equipment /Vedio encoder/ H.264 Encoder /SDI input (COL5141C)

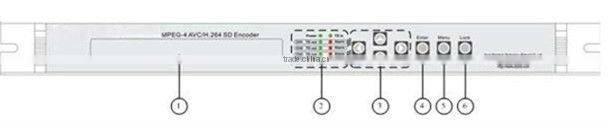

      1

LCD Display Interface
      2

Power Indicator

TS Output Indicator

TS Input Indicator

Alarm Indicator

      3

Left /Right, Up /Down Arrow
      4

Enter key
      5

Menu Key
      6

Lock key



DTV equipment /Vedio encoder/ H.264 Encoder /SDI input (COL5141C)

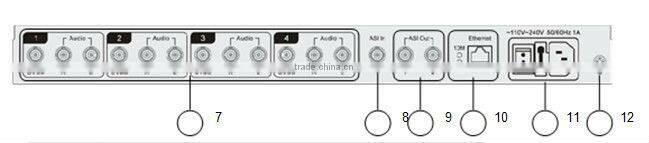

         7

4 VBS inputs, 4Audio inputs (Left/Right)

       8

 ASI input multiplex interface
       9

 2ASI Output interfaces
      10

10M/100M indicator, Ethernet interface
      11



Power switch and socket
      12

Grounding pole











          DTV equipment /Vedio encoder/ H.264 Encoder /SDI input (COL5141C)

                      DTV equipment /Vedio encoder/ H.264 Encoder /SDI input (COL5141C)DTV equipment /Vedio encoder/ H.264 Encoder /SDI input (COL5141C)
