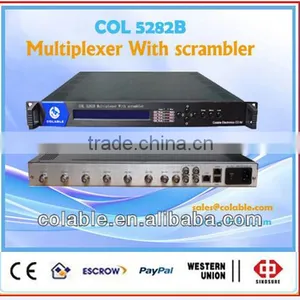

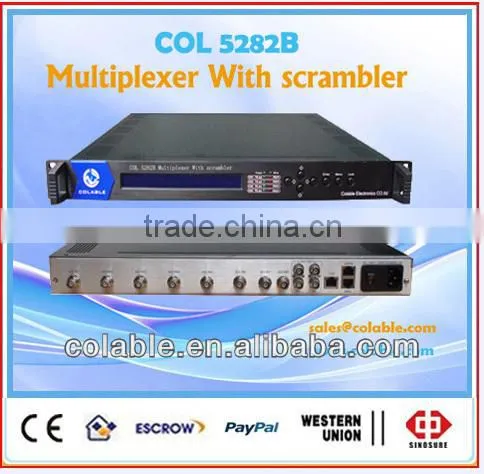

dvb multiplexer with scrambler / TS Multiplexing Scrambler, pay tv system
Features
1 Support 2~4 CA systems
2 Support the same density, compatible with multiple conditional access system.
3 Multiplex 8 inputs (ASI) SPTS or MPTS, multiplex and encrypt every single or multi programs.
4 Input date bit rate: 216Mbps(max)/channel ETHERNET interface, it could carry out the parameters setup and supervision from remote via network management unit.
5 Empty packet automatic filling and output bit rate invariableness
6 Can edit and insert the NIT and TDT tables 188 and 204 packet automatic identification
7 Output TS stream packet format is optional (188 packages and 204 packages)
8 With multiple output bit-rate options Failure alarming
9 LCD display to carry out system status supervision and system parameters setup
10 Power off memory
Specifications
ASI Input interface
Input interface DVB ASI interface
Connector: BNC
Impedance: 75W
TS standard: ISO13818-1
Input valid bit rate: 214Mbps max (per channel)
TS packet format: 188/204 bytes (automatic identification)
TS input format: equality/ packet burst / inequality
ASI output interface
Standard: DVB
Connector: BNC
Impedance: 75W
TS standard: ISO13818-1
Output valid bit rate: 2Mbps~120Mbps, tunable (1 Kbps step)
TS packet format: 188/204 bytes, optional (no RS encoding with 204 bytes)
TS input format: equality
Net interface
Keep status of power off
The unit will keep status with the power being cut off, in order to auto-reset when electrified again.
Power supply:
Voltage 90V~250V A.C,
Frequency 50Hz ±2%,
Power: 25W
Working Environment
0—50°C for operation
-25—55°C for storage
10~75% for relative humidity
Radiation and safety
GB13837-92 AND GB8898-88
