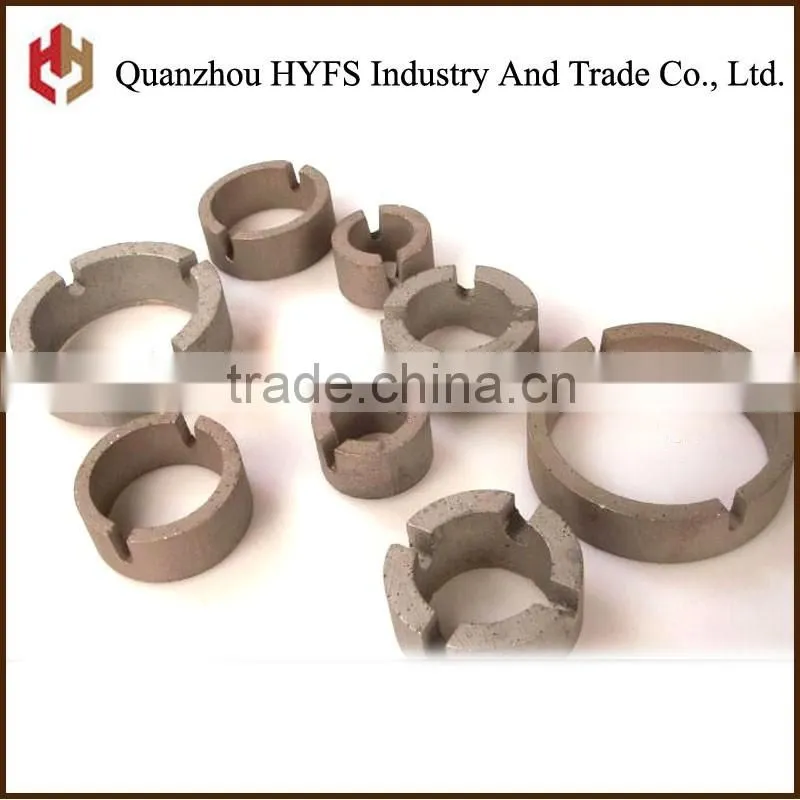

Diamond Core drill segment for concrete cutting
- 25863 Piece / Pieces per Month
- xiamen core drill segment for concrete
- Credit Card
- ZY SUPER HARD PCD Twist Drill Bits
- ZY SUPER HARD New Drill Fix DFT WCGW WCGX Full Face PCD Inserts for Drilling
- BQ NQ HQ PQ NTW HTW bits, hard formation core drill bits, wireline core barrels, impregnated diamond coring bits, deep hole rock core recovery
- hard formation core drill bits, BQ NQ HQ PQ NTW HTW, wireline core barrels, impregnated diamond coring bits, deep hole rock core recovery
- impregnated diamond core drill bit, BQ NQ HQ PQ, wireline core barrels, coring bits, hard formation, deep hole rock core recovery
- TIDEWAY Finger Joint cutter Finished Sandblast T.c.t Single Piece Finger Joint Carbide Shaper Cutters
Product Details
Place of Origin: | Fujian, China | Brand Name: | HYFS | Model Number: | core drill segment for concrete HYFS-CS-06 |
Type: | Core Drill Bit | Material: | Diamond | Use: | Masonry Drilling |
Product Description

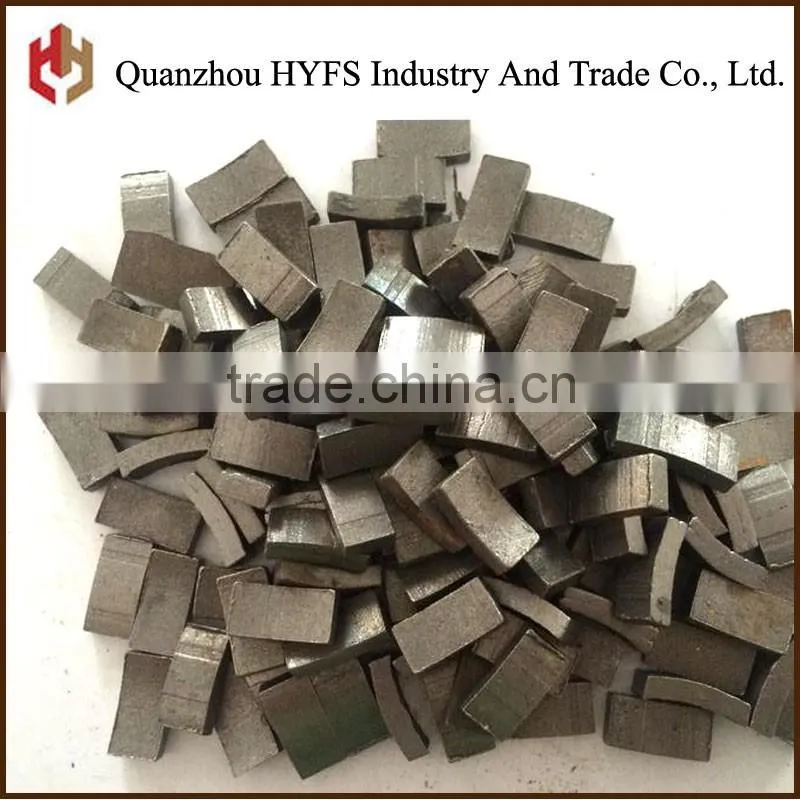

Diamond Cobalt Powder Diamond Segment for Core Bit Wet Drilling
core drill segment for concrete
1. For masonry ,brick,concrete with steel reinforced,granite,other hard stone.
2. High frequency welding
3.Wet /Dry drilling
Normal size for your reference
Diameter | Segmnet | Teeth No. |
32mm | 16*4.0* 10mm | 4pcs |
37mm | 16*4.0* 10mm | 5pcs |
40mm | 16*4.0* 10mm | 5pcs |
42mm | 16*4.0* 10mm | 5pcs |
47mm | 16*4.0* 10mm | 6pcs |
52mm | 16*4.0* 10mm | 7pcs |
56mm | 16*4.0* 10mm | 8pcs |
63mm | 24*4.5* 10mm | 6pcs |
76mm | 24*4.5* 10mm | 8pcs |
83mm | 24*4.5* 10mm | 8pcs |
90mm | 24*4.5* 10mm | 9pcs |
102mm | 24*4.5* 10mm | 9pcs |
108mm | 24*4.5* 10mm | 10pcs |
120mm | 24*4.5* 10mm | 11pcs |
132mm | 24*4.5* 10mm | 12pcs |
160mm | 24*5.0* 10mm | 13pcs |
182mm | 24*5.0* 10mm | 14pcs |
202mm | 24*5.0* 10mm | 16pcs |
250mm | 24*5.0* 10mm | 17pcs |
300mm | 24*5.0* 10mm | 18pcs |
350mm | 24*5.0* 10mm | 20pcs |
Payment:
T/T, Western Union
Delivery time:
For samples, shipped within 3 days after receiving the money,
For regular order, around 3-7 days, depends on the quantity.
Packaging:
The inner packaging is carton box .The outer packaging is carton box Or woodencase.(If by air ,carton box will reduce the weight, if by sea, we suggest woodenbox for waterproof.
Shipment:
<80kg, express service is recommonded
>80kg, air or sea is a better choice 45kgs
