   F13E series Rotary Shaft Encoder



F13E series Rotary Shaft Encoder Incremental type high accuracy Encoder in all dimensions

Introdution

1. Thin type of Rotary incremental encoders for electronic equipments such as laptop and mini-UAVs

2. Endless 360 degree rotation with 12 pulses output

3. SMD, reflow soldering compliance



Electrical characteristics
Roated Power  DC5V, 10mA(1mA min.)
Fluttering t1,t3<=3ms
Insulation Resistance  1MΩ Min.
Withstand Voltage  1minute at AC 20V 1 mA
Sliding Noise T2,<=2ms
Phase Difference T >=0.08t
Resolution  12/360° for each output channel
Mechanical characteristics
Total Rotation Angle  360° continuous
Rotational Torque  0~5.0 mN.m
Push-Pull Strength Pull:2N MIn; Push:5 N Min.
Endurance characteristics
Rotational Life  Standard life:10,000 cycles
Total Temperature range -10°C ~ +70°C
Dry Heat  70±3°C , 240±10hr.
Cold  -10±3°C ,240±10hr.
Damp Heat  40±2°C, RH90~95% , 240±10hr.
Vibration 10HZ~55HZ~10HZ,6hr

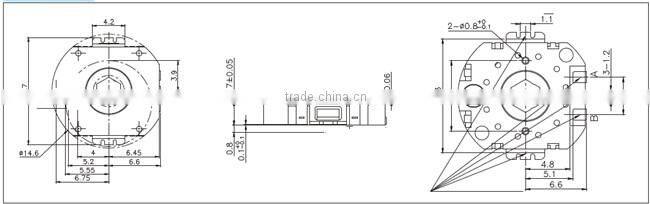

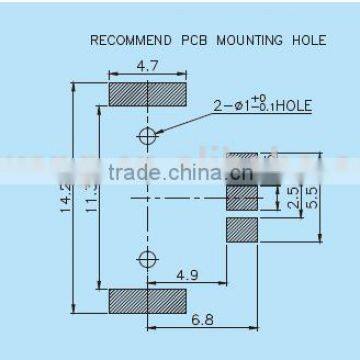

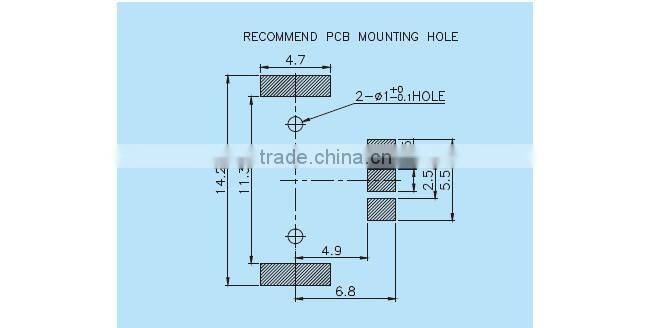

 F13E series Rotary Shaft Encoder Incremental type high accuracy Encoder in all dimensionsF13E series Rotary Shaft Encoder Incremental type high accuracy Encoder in all dimensions

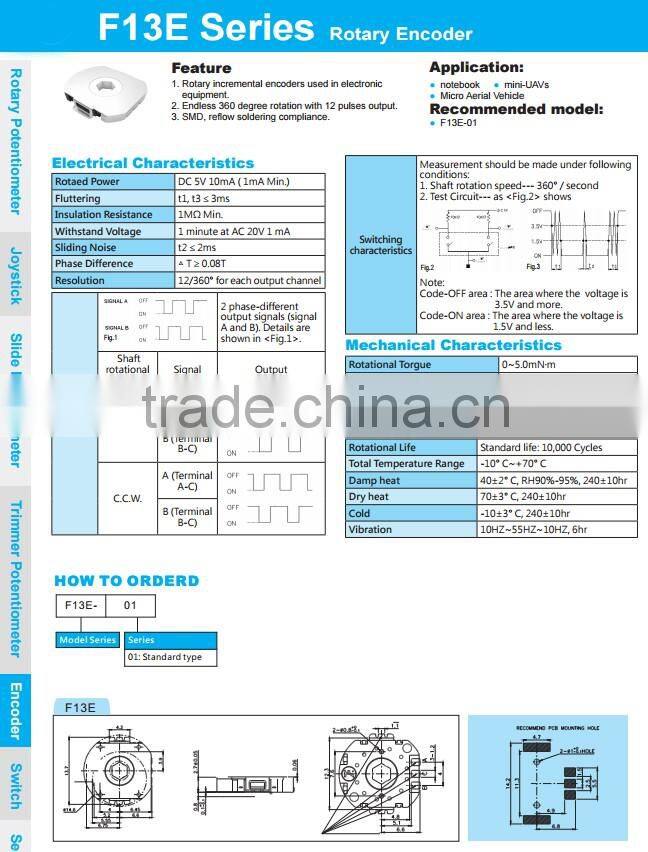

How to order?



F13E series Rotary Shaft Encoder Incremental type high accuracy Encoder in all dimensions



 FAQ

Q: Can you provide us samples, is it free or need to pay?

A: If you do not need to print your logo or other artwork on the products, we will not charge any cost, just tell us your freight collect account like FedEx,DHL,TNT, if you do not have we need to charge express fee properly.



Q: How to deliver?

A: By sea or by air or courier like UPS, DHL, FedEx.



Q: What’s your payment term?

A: T/T or Western Union

30% deposit, the 70% balance before shipment.



Q: Where is your factory located, is it convenient to visit?

A: Our factory located in Huizhou, Guangdong. It 's just 10 min drive away from our Shenzhen office.





Assembly Department
F13E series Rotary Shaft Encoder Incremental type high accuracy Encoder in all dimensions

The 1st manufacturing section

Production :
F-091 Series ; F-092 Series; F-093 Series;
F-094 Series; F-095 Series; F-24K Series;
F-081 Series; F-082 Series; F-131K Series;
P270 Series; P160 Series; JM10K Series;
JN10K Series; JP10K Series; FSR08 Series;
FSR10 Series; J08K Series Rotary Potentiometer,

Switch and so on
Monthly Output:
12,000,000 pcs

Typical Application:

Mixing consoles and electronic musical instruments,

DVD player/recorders in car,

game consoles and flat panel TV,

electronic toy controllers ,Remote controllers for audio

system and TVS and so on.
 F13E series Rotary Shaft Encoder Incremental type high accuracy Encoder in all dimensions
F13E series Rotary Shaft Encoder Incremental type high accuracy Encoder in all dimensions

The 2rd manufacturing section:
Production:
1.F-08E Series F-11E Series; F-12E Series; F-16E Series

 rotary encoder

and so on
2. Fxx92 Series; F05G Series; F035G Series;
Fxx31 Series; Fxx05 Series; Fxx06 Series;
Fxx43 Series; Fxx45 Series; Fxx2G Series;
F10008GP Series; Fxx46 Series slide potentiometer
and so on
3. FSE1001, FSE1101, FSE2801, FSE07 sensor potentiometer

and so on

Monthly Output:
5,000,000 pcs

Typical Application:
1. Mixing consoles, DVD play / Recorder, Various AV equipment,

Navigation systems in car and so on
2. Electronic musical instruments, Dimmer .protable audio and

 various audio equipment and so on
3. Automobile accessories.
 F13E series Rotary Shaft Encoder Incremental type high accuracy Encoder in all dimensions

 Automatic Assembling Machines

 Stable and consistent quality

 High efficiency

 Low defective rate

Quality Certificates
Quality Certificates & Environment Guideline
HOWANG holdings has passed TS16949,ISO9001,ISO14001,UL,CQC
