Best-selling 55hp Farm 4x4 Mini Tractor RZ554 Tractor

Best-selling 55hp Farm 4x4 Mini Tractor RZ554 Tractor thumbnail-1
Best-selling 55hp Farm 4x4 Mini Tractor RZ554 Tractor photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Shandong Runyuan Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 55hp
Certificate Other, ISO9001:2008
Brand Name RY
Model Number RZ554
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas

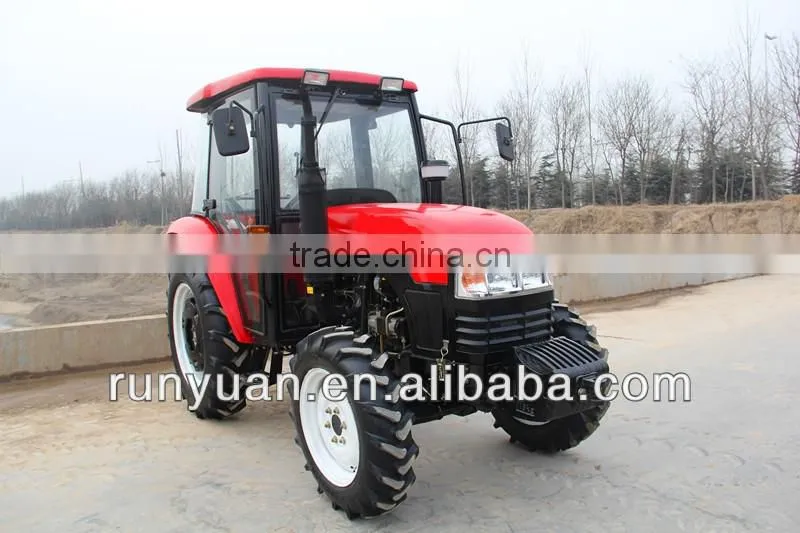

best-selling 55hp farm 4x4 mini tractor RZ554 tractor



best-selling 55hp farm 4x4 mini tractor RZ554 tractor

best-selling 55hp farm 4x4 mini tractor RZ554 tractor



best-selling 55hp Mid-size farm tractor 4x4 RZ554 tractor :

Main Features:

1. 12+12 gear transmission, and the strengthened chassis can provide a reliable strength and a reasonable velocity configuration, and can meet the various operating needs;
2. Optimized air-inlet with enlarged radiating area can prevent engine overheated effectively;
3. We only choose engine with famous brand from big manufacturer, make sure it is powerful and reliable.;
4.Streamlined and Full-metal bonnet makes it better appearance and good radiating ability.

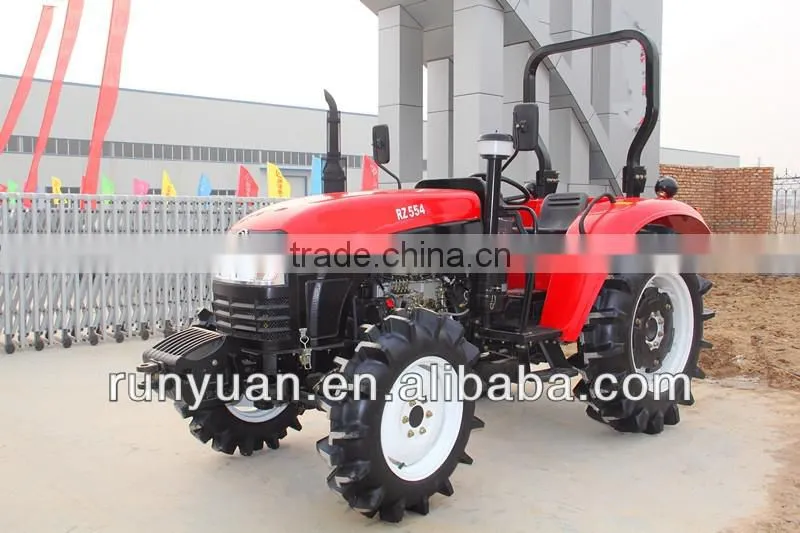

best-selling 55hp farm 4x4 mini tractor RZ554 tractor





Technical parameters
Drive type 4*4
Overall dimension(L * W * H) 3980*1650*2130
Wheelbase (mm) 2040
Track(front/rear) 1250/1200-1550
Track(front/rear) regulating method adjustable /step
Min.Ground clearance(mm) 310/370
Min.operating weight (without cab)(kg) 2190
Min.operating weight (without cab)(kg) 2360
Counterweight (max)(front/rear) 144/360
Gears(forward/reverse/creeper) 12+12
Theoretical speed of each gear(forward/reverse) 2.46-32.73/2.15-28.69
Engine
Brand Xinchai
Engine type In-line, four-stroke
Intake mode Natural intake
Cylinder number 4
Bore 105
Stroke 118
Displacement(L) 4
Engine rated power kW@rpm 40.4
Rated speed 2400
Type of air cleaner Dry or wet type
Type of cooling system Forced water-cooled
Max. Torque@ revolving speed (rpm) 228@1600~1800
Specific fuel consumption rate at rated conditions(g/Kw.h) ≤248
Fuel tank capacity (L) 52
Steering brake system
Steering brake system Hydraulic
Type of steering gear Cycloid orbitrol steering gear
Type of braking system Dry type or disc type
Transmission system
Clutch type Dry/double action
Gearbox type Two-axis mechanical gearbox
Gearbox shift mode Shift sleeve
Type of central transmission Spiral bevel gear type
Final transmission mode(front/rear) External gearing or built-in type
Walking system
Frame type Frameless
Tire Model (front/rear) 8.3-20/14.9-28
Working device
Type of hydraulic suspension system Open-center, semi-separated or separated type
Type of linkage Three point rear linkage
Linkage classes Class Ⅱ
Lift capacity(610mm point))kN Ordinary Riser≥10.2;
Regulating mode Semi-separated lifter: force and position combination control; separated lifter:depth control and floating control
Type of PTO shaft Rear semi-detached/rear detached type
The number of PTO shaft splines 6 splines/8splines
Outer diameter of PTO shaft spline φ35/φ38
PTO shaft speed 540/760





best-selling 55hp farm 4x4 mini tractor RZ554 tractor

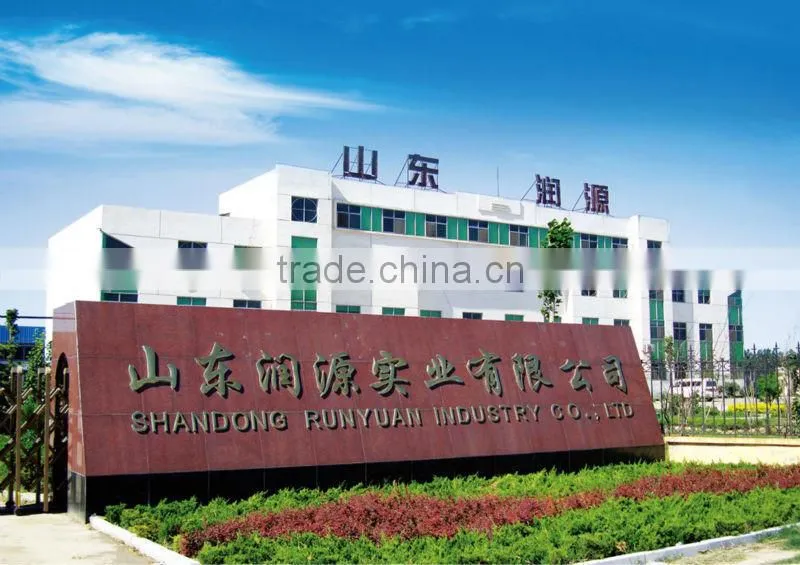

To 2013, Runyuan will become an Agricultural Machinery base with capacity of 40 thousand tractors, 100



thousand corn harvesters;and sales income up to 16 billion, tax income 1.5 billion.







Runyuan will seize any opportunity to innovate and enlarge marketing investment, trying to be a famous



AgriculturalMachinery Enterprise both domestic and abroad within 3-5 years.



best-selling 55hp farm 4x4 mini tractor RZ554 tractor



best-selling 55hp farm 4x4 mini tractor RZ554 tractor
