new type 30 hp mini tractor
| Product Show |

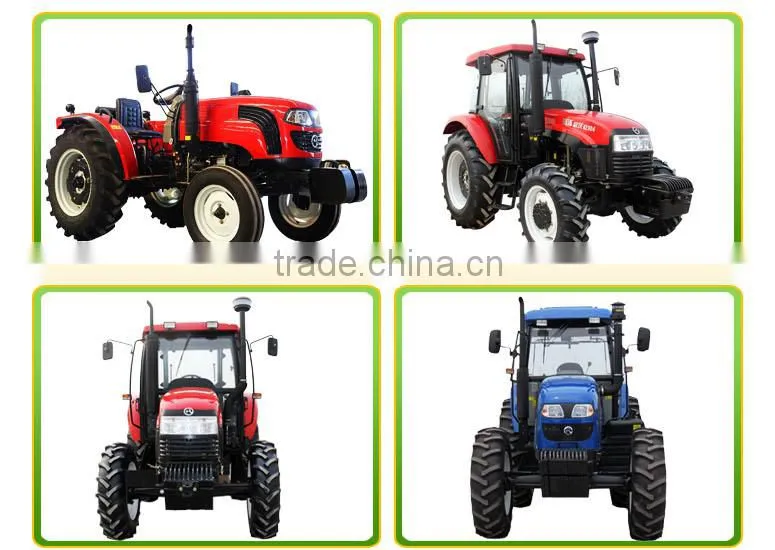

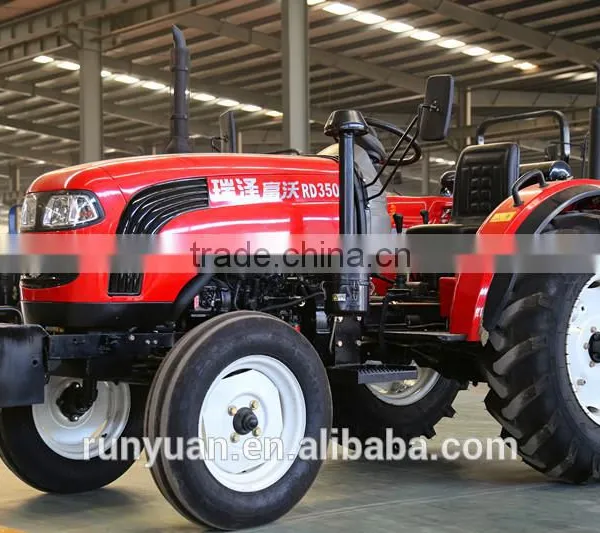

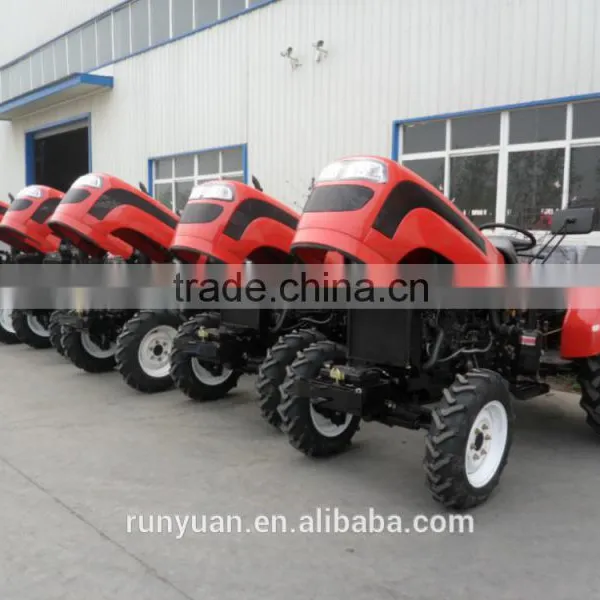

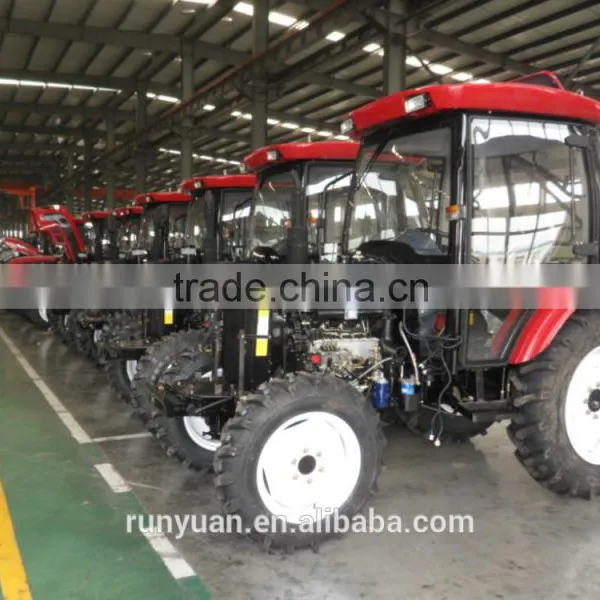

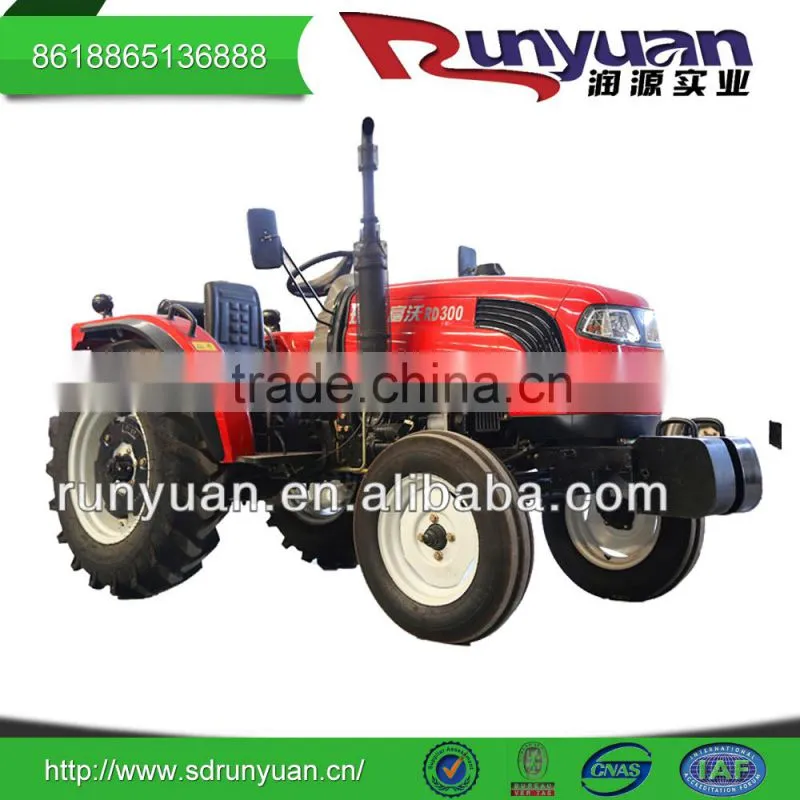

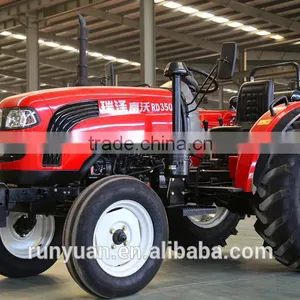

Product Pictures of mini tractor
Product Description of mini tractor
Features:
1) The use of a simple floor structure and an external divider is easy for maintenance;
2) The safety frame is optional;
3) The single-acting or double-acting clutch is optional;
4) The various gear configurations, such as 8+2, 8+8, and 16+4 are optional, and the velocity
distribution is reasonable to meet different operating needs;
5) The synchronized shuttle shift is optional, and the operation is easy, flexible and reliable;
6) The operations of hydraulic steering, the mandrel cylinder front drive axle are easy and flexible)
Technical parameters:
| Technical parameters | |
| Drive type | 4*2 |
| Overall dimension(L * W * H) | 3340*1500*2051 |
| Wheelbase (mm) | 1776 |
| Track(front/rear) | 1100-1300/960-1460 |
| Track(front/rear) regulating method | adjustable /step |
| Min.Ground clearance(mm) | 338 |
| Min.operating weight (without cab)(kg) | 1480 |
| Counterweight (max)(front/rear) | 60/180 |
| Gears(forward/reverse/creeper) | 8+2/8+8 |
| Theoretical speed of each gear(forward/reverse) | 1.72-26.02/2.25-10.39;1.72-26.02/1.61-24.24; |
| Engine | |
| Brand | RY |
| Engine type | In-line, four-stroke |
| Intake mode | Natural intake |
| Cylinder number | 3 |
| Bore | 75 |
| Stroke | 105 |
| Displacement(L) | 1.81 |
| Engine rated power kW@rpm | 19.9 |
| Rated speed | 2400 |
| Type of air cleaner | Dry or wet type |
| Type of cooling system | Forced water-cooled |
| Max. Torque@ revolving speed (rpm) | ≥96/1650 |
| Specific fuel consumption rate at rated conditions(g/Kw.h) | ≤244 |
| Fuel tank capacity (L) | 29 |
| Steering brake system | |
| Steering brake system | Hydraulic |
| Type of steering gear | Cycloid orbitrol steering gear |
| Type of braking system | Dry type or disc type |
| Transmission system | |
| Clutch type | Single action |
| Gearbox type | Two-axis mechanical gearbox |
| Gearbox shift mode | Shift sleeve |
| Type of central transmission | Spiral bevel gear type |
| Final transmission mode(front/rear) | External gearing or built-in type |
| Walking system | |
| Frame type | Frameless |
| Tire Model (front/rear) | 6.00-16/11.2-24 |
| Working device | |
| Type of hydraulic suspension system | Open-center, semi-separated or separated type |
| Type of linkage | Three point rear linkage |
| Linkage classes | Class I |
| Lift capacity(610mm point))kN | Ordinary Riser≥4.96 |
| Regulating mode | Semi-separated lifter: force and position combination control; separated lifter:depth control and floating control |
| Type of PTO shaft | Rear semi-detached/rear detached type |
| The number of PTO shaft splines | 6 splines/8splines |
| Outer diameter of PTO shaft spline | φ35/φ38 |
| PTO shaft speed | 540/760 |
More Products for You to Choose

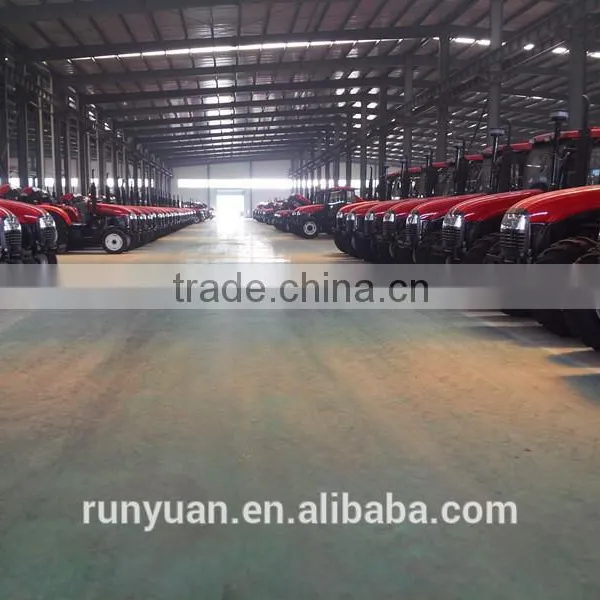

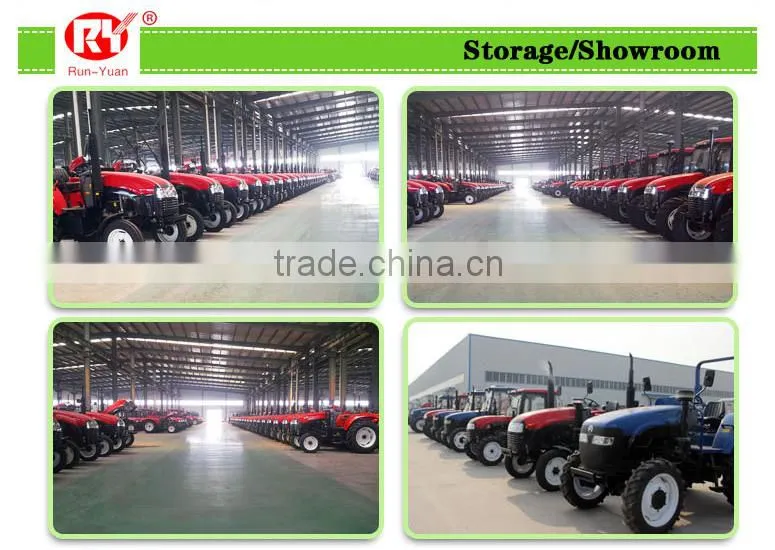

| Company Show |
About us
Founded in 1986, Shandong Runyuan Industry Co., Ltd. has 1,000 employees, among whom 15
are senior engineers, 96 are with bachelor degree and 895 are skilled technicians.
Adhering to the tenet of "Practice, Innovation, Cooperation and Development", we constantly
strength our internal quality and external image to develop with efficiency. It is company's objective
that before 2010, our annual output will reach 300,000 crankshafts, 20,000 sets of hydraulic oil
cylinders, 5,000 pieces of combine harvesters and large-sized tractors respectively. Meanwhile,
our target income is USD25.3 million, with the tax over 12.7 million.
Certifications
Our Service
1. One year guarantee for main parts of the harvester
2. Engineers available to service overseas for large quantity order
FAQ
1. How can we learn to drive this harvester?
Answer: You are welcome to our factory, and then we will supply room and board and train you all free.
2.Do we have to buy quick-wear parts with the machine?
Answer: Yes and we will send you some parts free of charge.
3.Is there any discount?
Answer: Discount is according to the quantity you purchase.
4.How is the quality of the harvesrter?
Answer: We have been in this field for many years and can supply high quality harvester for you.
You just have to change the quick-wear parts timely.
