Specifications
Auger conveyor

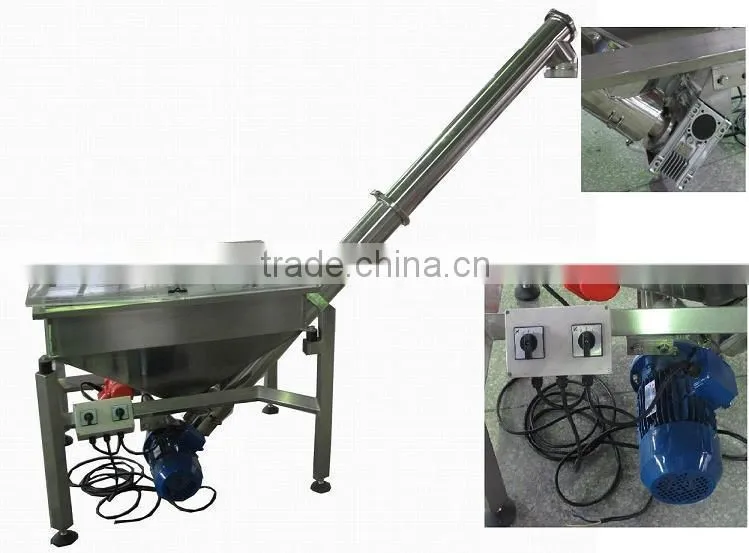

FLX type Auger conveyor
Description:
This Vibrating Screw Charging Machine can convey sorts of material. Combined with the package-machine of our company, it can do material situation tracing. Also it can be used separately. Complete machine made in stainless steel, except for the electrical machine, gearing, and the framework.
Characteristics:
- 1. Vibrating screw feeding machine is composed of double motor, feeding motor, vibrating motor and each switch control.
- 2. Hopper is adjustable and vibrational which make material to be flowing easily. It is good to material.
- 3. Hopper is separate from twisting shaft. Structure is reasonable and easily loading and unloading
- 4. Characteristic dustproof, bearing won’t be polluted by the dust and powder.
- 5. To cleanup scrapped materials conveniently and design the machine to be: Discharging the material reversally, storing materials at the bottom of hopper pipe, taking out the whole screw.
Technical Parameter:
Model |
FLX1 |
FLX3 |
FLX5 |
FLX8 |
Transportation Capacity |
1 stere/hour (35.3Cubic foot/hour) |
3 stere/hr. (106Cubic foot/hour) |
5 stere/hr. (176.6Cubic foot/hour) |
8 stere/hr. (282.6Cubic foot/hour) |
Power Supply |
550W |
930W |
1.5KW |
2.2KW |
Diameter of pipe |
Φ102mm |
φ114mm |
φ141mm |
φ159mm |
Hopper Volume |
100L |
230L |
||
Power Supply |
3P, 380V/220V ,50-60Hz |
|||
Charging angle of lifting pole |
General 45 degree, could be 30degree,60degree |
|||
Charging Height |
General1800mm,Different feeding height could be designed |
|||
Total Weight |
100KG |
130kg |
180kg |
230kg |
Oversize of main body |
780*630*730mm |
1023×823×870mm |
||
Remark |
|
Other charging capacity could be designed |
||
