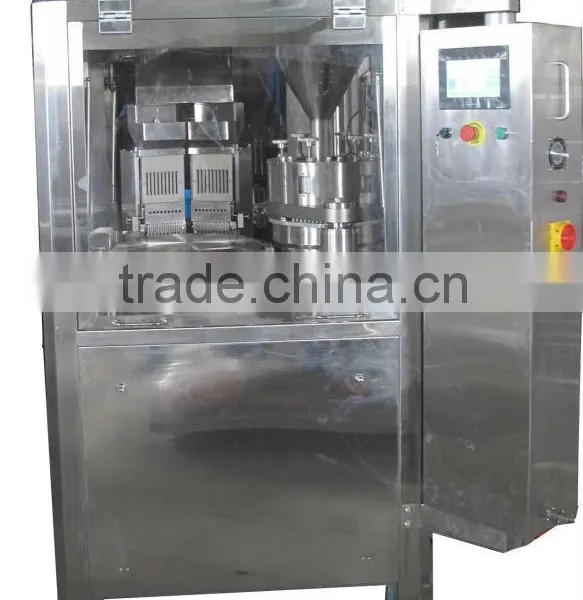

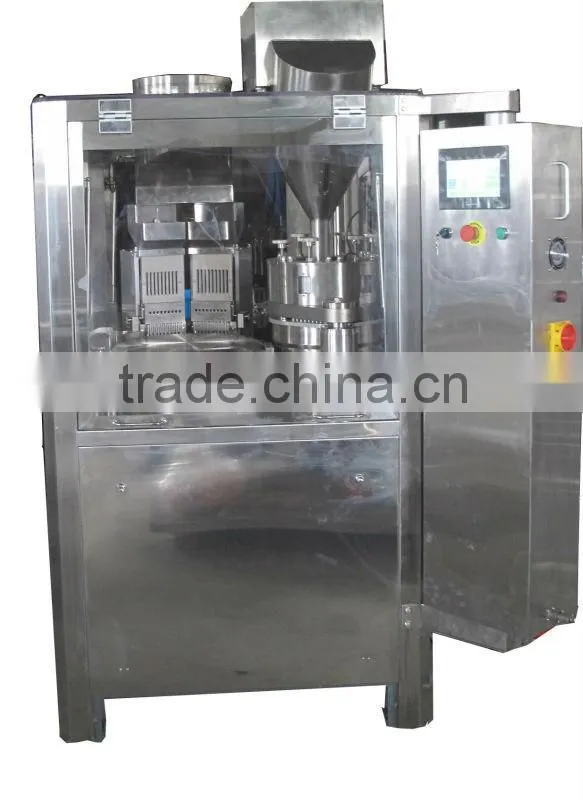

NJP-2500 Automatic Capsule Filling Machine

Specifications

NJP2500 capsule filling machine
GMP
ISO
CE
SUS304 or 316L

 NJP-2500 Automatic Capsule Filling Machine




Descriptions:

This capsule filling machine has been own developed through absorbing advantages from the same products, enjoy some features such like small machine outline, large producing capacity, accurate filling volume, good suitable to medicine and hollow capsule, running stably high automatization. Can automatically finish feeding, removing useless capsules, clipping and capsule finishing, cleaning mould at same time, its performance and features also including all contents of type 1200A/C/E, it's very suitable for hard capsule filling machine meet GMP&CE standard.

Technical Parameters:

Machine model NJP-2500
Max capacity 150000 capsules/hour
Suit for capsule size 00#-5#and safety capsuleA-E#
No. of mould bores 18
Working station 10
Machine dimensions 1150*1050*1970mm
Net weight 1300Kg
Power 380/220V 50/60Hz, 3phase  6.74kw (3.74+3kw of dust collector)
Capsule finish rate ≥99.5%
Noise <75dB
Powder Filling precision Over 300mg, ≤±3%(mesh 40-80)
Compressed air 0.06m3/min   0.3Mpa
Water requirement Applied for Water cycle vacuum pump tank
Water inlet diameter 20mm
Water outlet diameter 27mm
Vacuum degree 0.02Mpa-0.06Mpa
Working environment 21°C±3°C
Working height of work shop Manual lift≥2.6m,vacuum lifter≥2.8m
Relative humidity 40~55%
Air discharge capacity of vacuum pump 300m3/h
Special function Pellet feeder. Medicine powder collector, the powder can be recycled back to hopper without sterilization

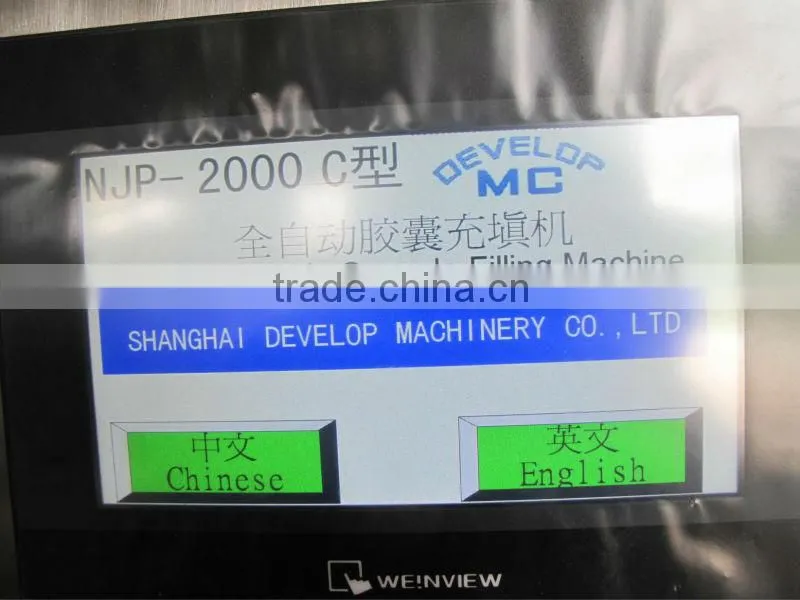

Control system Frequency speed adjustable, PLC touch screen control
