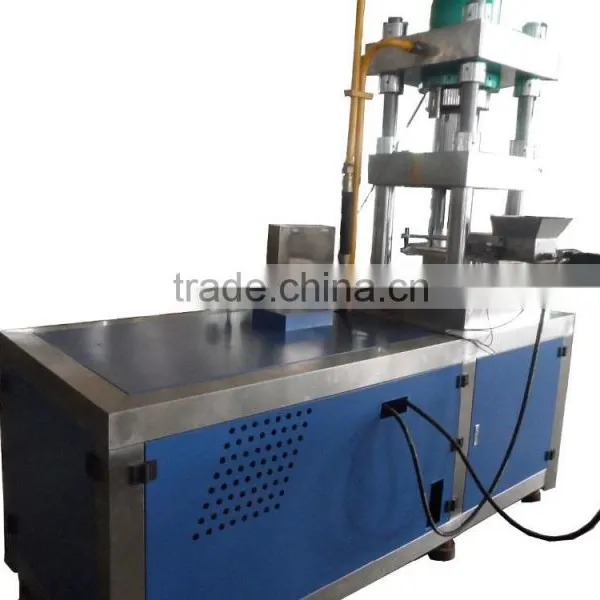

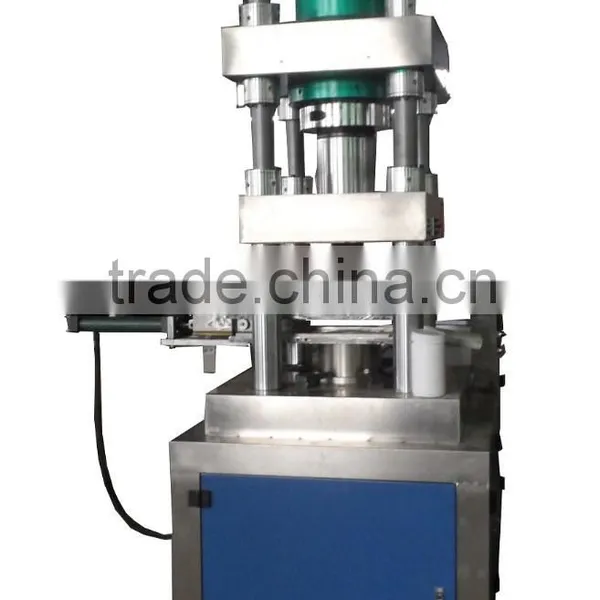

LPF100 Hydraulic Tablet Press & Salt tablet press
LPFhydraulic pressure machineare the small continuous automatic tablet Press which is one of the essential equipments for pressing granular raw materials into tablets or medicines taken with water in pharmaceutical, chemical, food, electronics industries. It can be used to press medicinal tablets, catalysts, candies, caloium coffee pills, powder metallurgical parts electronics components, various tablets of pesticide and fertilizer etc. in small-batch production, laboratory and hospital. The machine can press special-shaped, ring like tablets of different kinds, and can also process the tablets of pesticide both sides are impressed trademarks, letter and simple patters.
This machine control by “PLC” all the working can be adjusted by timing. The hydraulic pressure parts are imported. Bidirectional press, feeder power is high, the density is high. Key point adopt machine and electric double control, all the working can be adjust the high-point through the PLC.
Technical parameters
Type |
LPF45 |
LPF100 |
LPF200 |
LPF250 |
Working pressure |
45T |
100T |
200T |
250T |
Up punch max working high(mm) |
100 |
150 |
250 |
250 |
Feeder high(mm) |
100 |
100 (or made to need) |
120, (or made to need) |
120mm(or made to need) |
Max tablet diameter(mm) |
100-120 |
130-160 |
200-240 |
200-280mm |
Max tablet thickness(mm) |
50 |
50 |
60 |
60 |
Down die max dia |
90 |
120 |
150 |
150 |
Product capacity Pcs/min |
10 |
10 |
10 |
8 |
Motor power |
7.5KW |
11KW |
15KW |
17.5kw |
Over all size (mm) |
1900*1600*2100 |
2300*1700*2400 |
3500*1400*2800 |
3600*1500*2800 |
Weight |
2050KG |
2880KG |
3500KG |
3800kg |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
