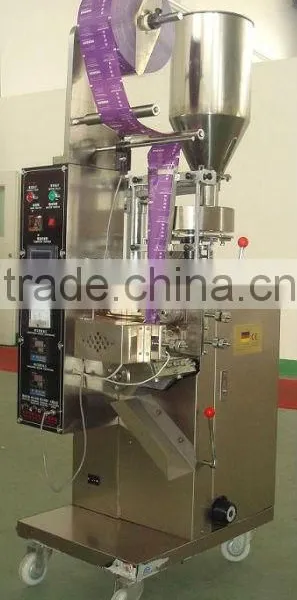

DXDK-40/150 Granule FFS Packaging Machine
Ⅰ,Applications:
The machine is suitable for packing non sticky, bulk or granular material, such as medical pills, food Stuffs, plant seeds, washing powder, coffee, sugar, desiccant etc The integrated processes of bag making, measuring filling, sealing cutting, counting and hot pressing codes can be done automatically. Packing material include several kinds of heat seal lamination, such as PET/plated AL/PE, PET/PE, PAPER/PE,NYLON etc.
Ⅱ,Features:
1. All stainless steel cover meets to GMP standard.
2. Equipped with antipollution and dustproof device.
3. Automatic adjustment of pouch size and filling range.
4. Photocell controller is easy to manipulate.
5. The horizonal sealing uses high temperature resistant bearing which will ensure the continuous operation of the machine without filling the oil regularly.
6. The operation facility is controlled by American intel computer, all function is displayed with digital screen.
7. Minimum sealing temperature variation employs PID temperature, the tolerance is controlled by ± 2%.
8. Sealing part: roller spend process is special designed and the effect of sealing is very well.
9. Equipped with easy open system.
10. have gained the European CE certification
Ⅲ,Option
1.Ink printer
2.Conveyor
3. Hot pressing codes
IV.Technical Data
TYPE |
DXDK-40 |
DXDK-150 |
Bag size |
L55-110 /W30-80mm |
L70-150 /W70-115mm |
Capacity |
50-110 bags/min |
35-60 bags/min |
Filling range |
5-40 ml |
30-150 ml |
Power |
220V,50HZ,1.5KW |
220V,50HZ,1.9KW |
Weight |
350 KGS |
450 KGS |
Dimension(L*W*H) |
600X 790X1780 mm3 (L*W*H) |
700X 800X1900 mm3(L*W*H) |
