Specifications
FFS Packing Machine

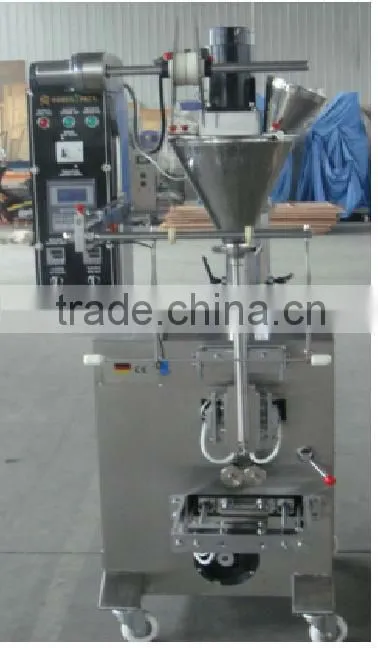

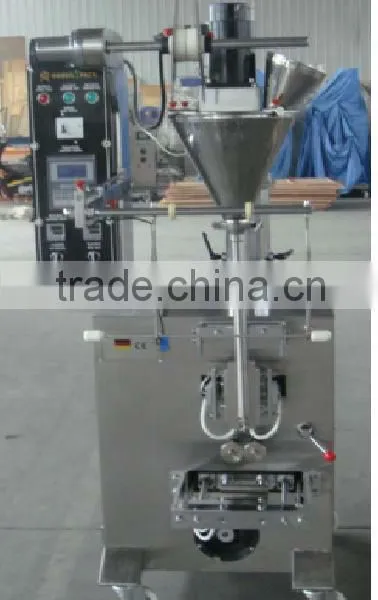

DXDF-300 Powder FFS Packing Machine
Ⅰ.Applications:

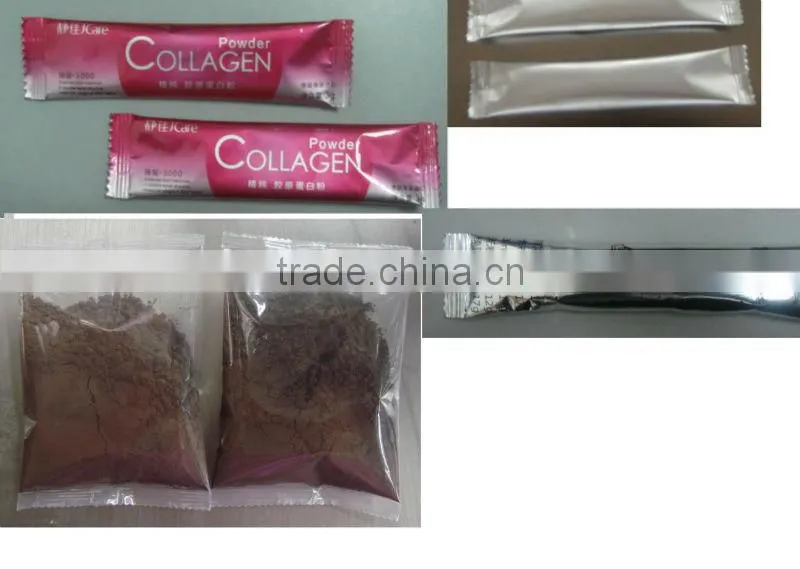

The machine is designed and manufactured specially for powdery and super fine powdery products Driven by servomotor, the auger is rotating to fill products; furthermore, the filling range can be adjusted automatically through computer The processes of bag making, measuring, filling, sealing, cutting, counting and hot pressing codes can be done automatically. Packing material include several kinds of heat-seal lamination, such as PET/plated AL/PE, PET/PE, NYLON etc.
Ⅱ.Features:
1. All stainless steel cover meets to GMP standard.
2. Automatic adjustment of pouch size and filling range.
3. Photocell controller is easy to manipulate.
4. The operation facility is controlled by American intel computer, all function is displayed with digital screen.
5. Minimum sealing temperature variation employs PID temperature, the tolerance is controlled by ± 2%.
6. Along with assembling automatic no packing alarm system, help user to economize cost.
7. Equipped with easy open system.
8. Equipped long filling screw make the sealing area clean and strong and compact shut-off door is used to prevent from product clamping at sealing jaw.
Ⅲ.Option
1.Ink printer
2.Conveyor
Technical Data
TYPE |
DXDF-300 |
Bag size |
L50-150mm /W25-100mm |
Capacity |
25-60 bags/min |
Max Filling range |
100g |
Power |
220V,50HZ,1.5KW |
Weight |
350 KGS |
Dimension(L*W*H) |
600X 790X1780 mm3 (L*W*H) |
Depending on product property and filling range
Send Inquiry to This Supplier
