Specifications
shrink packing machineGMP standard
material: PE, PP, OPP etc
CE
ISO9001
QSJ-5040A AUTOMATIC shrink packing machine &SLEEVE WRAPPER & BSE-5040A Heat ShrinkTUNNEL
Summary:

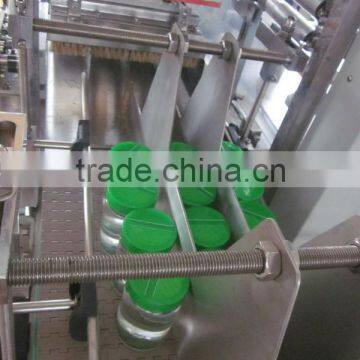

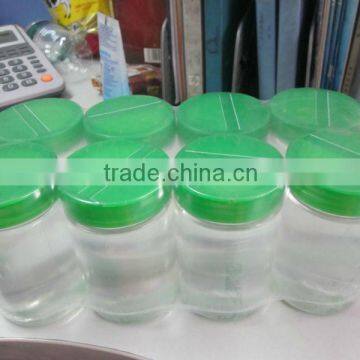

QSJ-5040A automatic sleeve wrapper is suitable for wrapping products such as pop-cans, bottles, etc, with bottom-tray or without bottom-tray, working with BSE-5040A jet PE-film shrink tunnel or other PE shrink tunnel BSE-6040.
Characteristic:

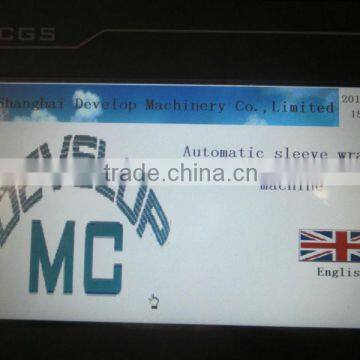

The Machine adopts the advanced touch screen which makes operation easier, ‘Omron’ programmable logic controller (PLC) and AC contactor, ‘AirTAC’ cylinder, and all the rest parts adopt international famous brand.
Upper and down electromagnetic switch prevents sealing mistakes, and protect operator.
Automatic alarm security system protects machine and operator.
Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
Two large power fans make the temperature of shrink tunnel every even and stable, this ensures the excellent effect of shrinking in one time.
Super cooling system cools the packing and makes the figuration perfectly.
Specification:
Model |
QSJ-5040A |
Model |
BSE-5040A |
Power source |
3phase 220V/380V 50-60HZ |
Power source |
3phase 220V/380V 460V 50-60HZ |
Power |
3KW |
Heater power |
20KW |
Capacity |
0-10 packs/min |
Conveyer speed |
0-10m/minute |
Working air pressure |
0.4 -0. 6 MPa |
Tunnel size(L*W*H) |
1500*500*460mm |
Width/thickness of the film |
Max. 590mm/0.03 - 0.25mm |
Conveyer loading |
30KGS Max. |
Max. packing dimension(L*W*H) |
420*300*350mm |
Machine size(L*W*H) |
2500*820*1680mm |
Min. packing dimension(L*W*H) |
250*50*100mm |
Machine weight |
470KGS |
Conveyor size (L*W*H) |
2600*410*400mm |
Shrink film |
PE,POF,PVC,PP |
Machine size(L*W*H) |
1060*1600*1930mm |
|
|
