Specifications

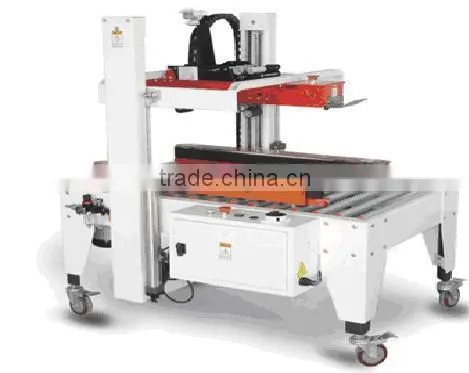

AUTOMATIC CARTON SEALERAUTOMATIC CARTON SEALER
Side Driving Belts And Manual Folding Carton Sealer Machine
l The machine of this series can not only be applied to stand-alone operation, but also can support the use of automated packaging lines. By folding the cover manually, sealing up and down like a shape---“-”, it can be finished at one lime.
l The performance of the taping device is precise and solid with smooth operation and long service life.
l It is acceptable to have the machine widened and heightened besides the standard model.
l The countertop height of standard machine is 600mm
l To manufacture with advanced techniques, it is made from electric control parts, pneumatic control parts and specialized electric motors of imported brands.
Automatic Carton Sealer
l Suitable for wide and heavy carton.
l Adjust the sealing width and height manually
l side belts drive
Technical parameters
MODEL |
SDW—FE500 |
Min. package size |
L150*W160*H120mm |
Max. package size |
L∞*W500+H500mm |
Belt speed |
20m/min |
Machine dimension |
L1160*W880*H1245mm |
Power supply |
1P 110V/220V 50/60HZ 200/400W |
Air pressure |
6kgf/cm2, 80nl/min |
Apply tape |
48mm. 60mm,75mm |
G.W/N.W |
195KG /170KG |
