YTD-R Round bottle Oriented Labeling machine & labeler
- 50 Unit / Units per Month
- shanghai
- T/T Credit Card
- Automatic Steam Shrink Machine for Bottle
- Shrink Sleeve Steam Tunnel Machine
- Steam Shrink Sleeve Label Machine For Bottle
- PVC Sleeve Label and PET Bottle Steam Shrink Tunnel Quality Choice Supplier's Choice
- PET Bottle Shrink Sleeve Steam Shrink Tunnel Quality Choice
- Automatic Heat Shrink Tunnel Machine
Product Details
Condition: | New | Application: | Beverage, Chemical, Food, Medical | Packaging Type: | Bottles |
Packaging Material: | Paper | Automatic Grade: | Automatic | Driven Type: | Electric |
Place of Origin: | Shanghai, China | Brand Name: | develop-mc | Model Number: | YTD-R |
Weight: | 280kg | Certification: | SGS, ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

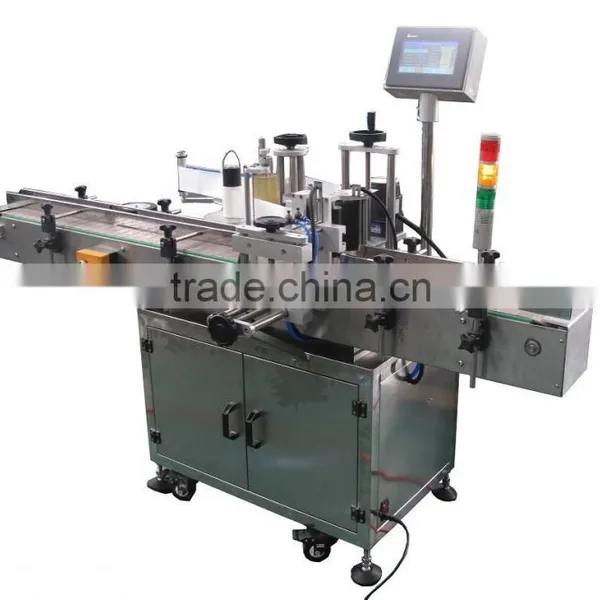

YTD-R Round bottle Oriented Labeling machine & labeler
Descriptions:
The intelligence series labeler is using transistor modular and microcomputer chips; various parameters can be input by touch screen interface. The machine will automatically display and monitor the working status after operation. The machine is easy to operate. The machine can be adjusted to the best results according to the diameter of the bottles and the length of the label. It is widely used in many industries such as medicine, food, cosmetics, pesticide, health products etc.
Coding system (Optional)
Technical Parameters:
Bottle Specification: OD60-150mm Height 80-300mm
Label type: self-adhesive labels
Label size: height 10-170mm, length: 10-460mm
Machine can be made according to client’s special large labels
Capacity 60 – 100 bottle/min
Label roller inner diameter: 76mm
Label roller outer diameter after load labels: 300mm
Power: 400W
Voltage: 220V, 1phase, 50-60 HZ
Size: 1800 x 1100 x 1300
Transport belt size: L*W=1800*110mm
Net weight: 220 KGS
